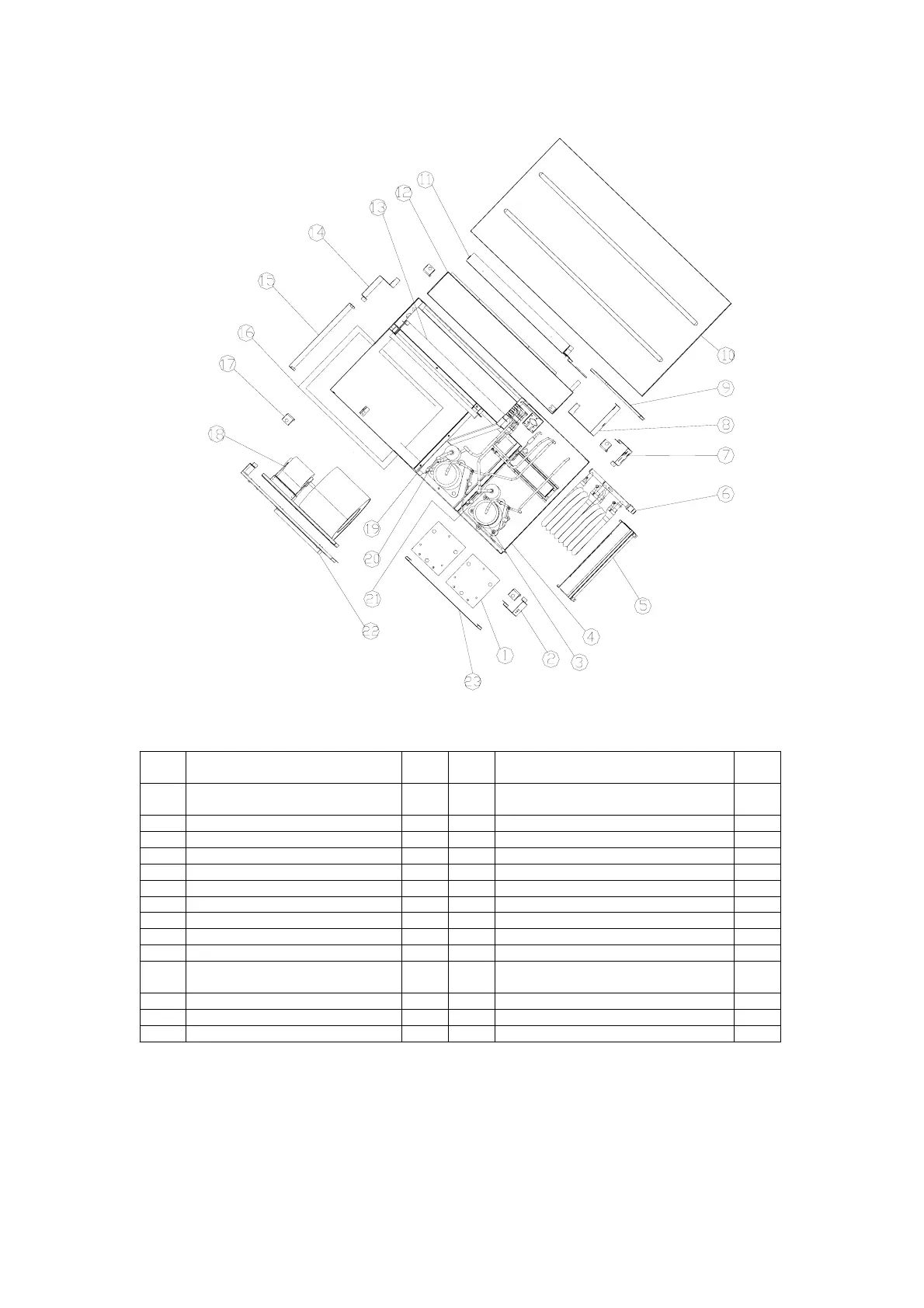

McQuay MWH011B

Model : MWH030B
NO. PART DESCRIPTION AMO
UNT
NO. PART DESCRIPTION AMO
UNT
1 ASSY.COMPRESSOR
SUPPORT PANEL
2 15 ASSY. MIDDLE LEFT PANEL 1
2 ASSY. FRONT RIGHT PANEL 1 16 ASSY. MAINTAIN PANEL 1
3 COMPRESSOR 2 17 ASSY. WELD HOOK 4
4 ASSY.BASE 1 18 ASSY. BLOWER & MOTOR 1
5 ASSY. CONTROL BOX 1 19 ASSY. MIDDLE PANEL 1
6 ASSY. CONDENDER 1 20 ASSY. TUBE UNIT 2 1
7 ASSY. BACK RIGHT PANEL 1 21 ASSY. TUBE UNIT 1 1
8 AIRPROOF PANEL 1 22 ASSY. FRONT PANEL
9 ASSY. BACK MIDDLE PANEL 1 23 ASSY. FRONT RIGHT PANEL
10 ASSY. TOP PANEL 1
11 ASSY.FILTER & SUPPORT
PANEL
1
12 ASSY.DRAIN PANEL 1
13 ASSY. COIL 1
14 ASSY. BACK LEFT PANEL 1
