McQuay MWM-LW

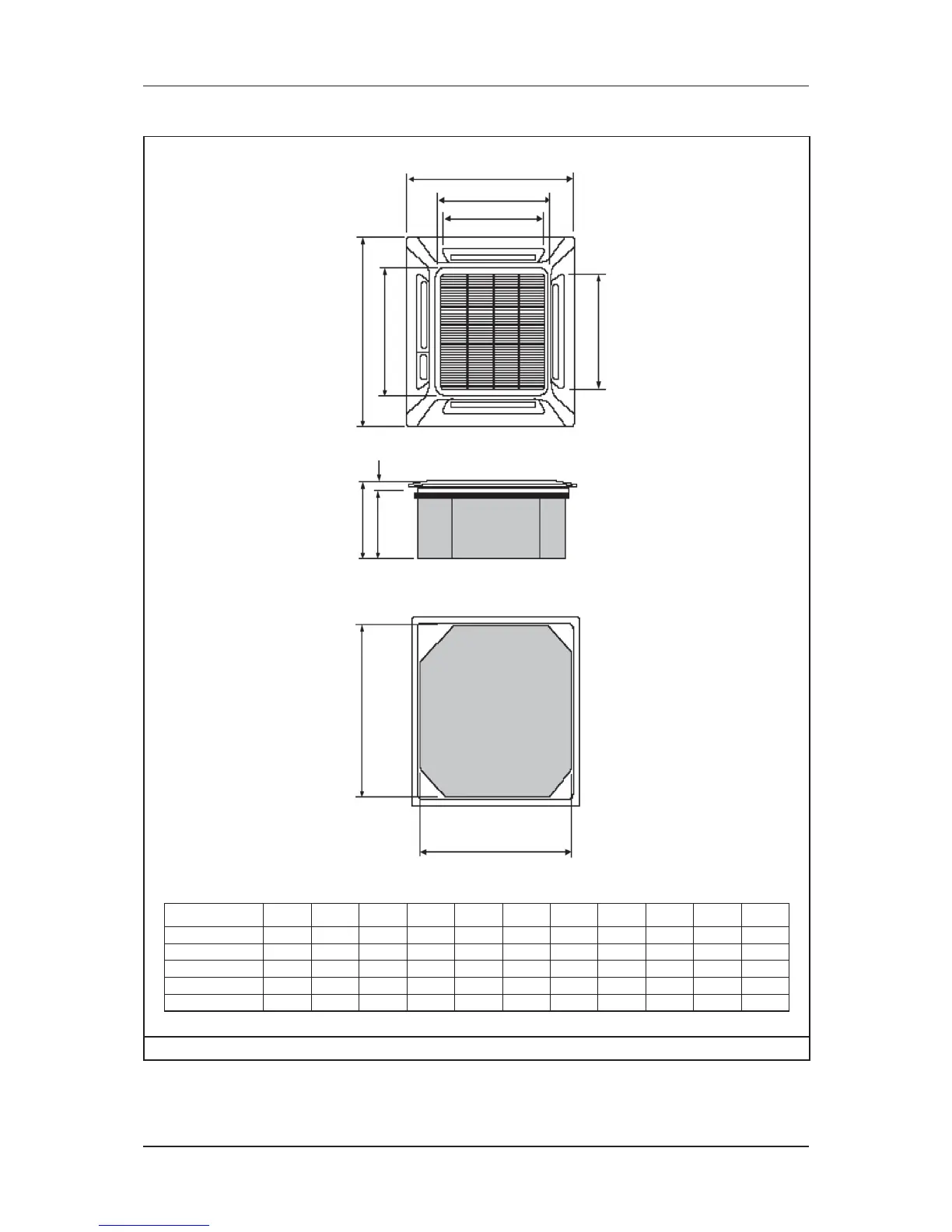

Outlines & Dimensions
73
Model: MCK20/25/30/40/50AWH
B
A
C
D
E
F
H
K
J
I
G
Model A B C D E F G H I J K
MCK20AWH 820 820 363 335 28 930 930 642 622 555 555
MCK25AWH 820 820 363 335 28 930 930 642 622 555 555
MCK30AWH 820 820 363 335 28 930 930 642 622 555 555
MCK40AWH 820 820 363 335 28 930 930 642 622 555 555
MCK50AWH 820 820 363 335 28 930 930 642 622 555 555
Note: Dimension in mm
