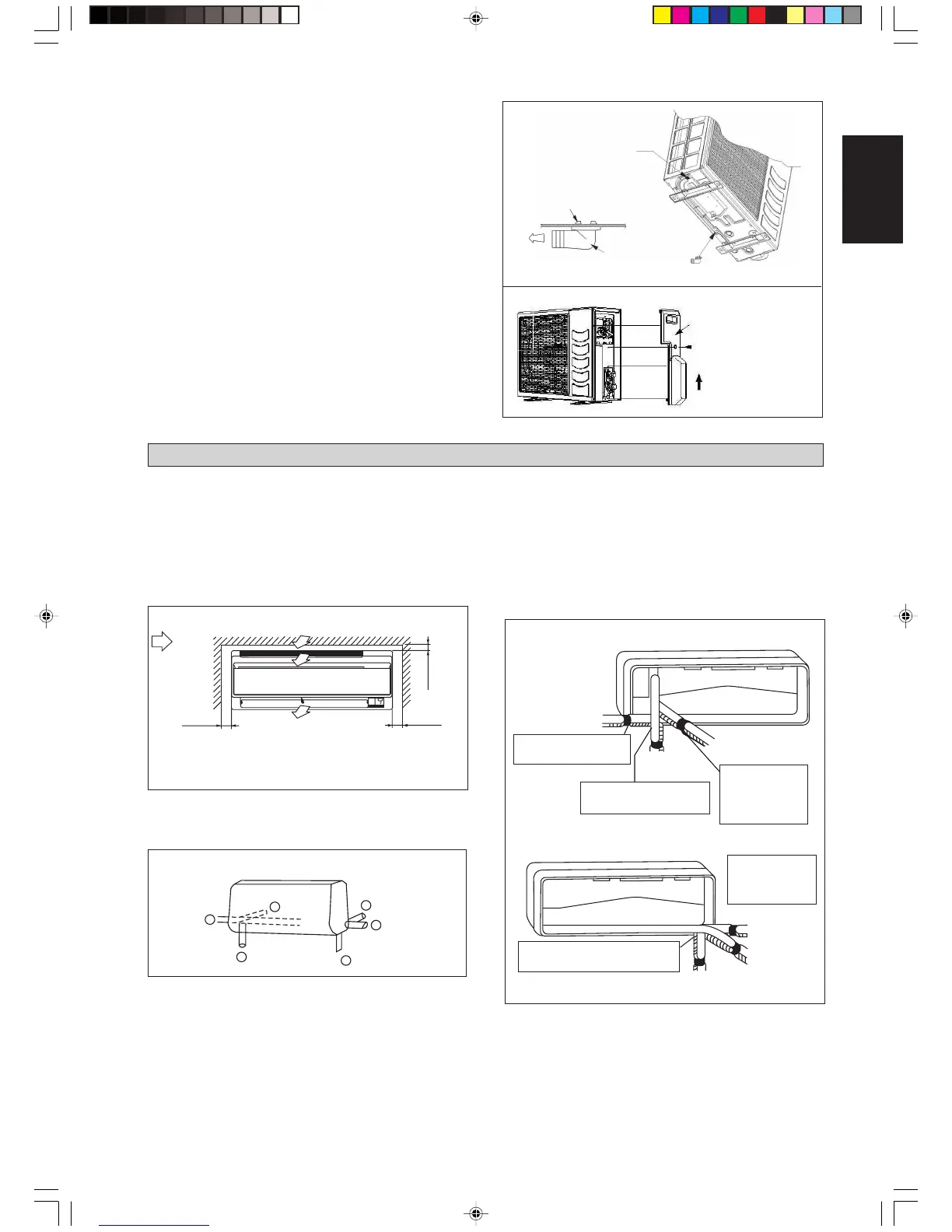

INSTALLATION OF THE INDOOR UNIT
The indoor unit must be installed in such a way so as to
prevent short circuit of the cool discharged air with the hot
return air. Please follow the installation clearance shown in
the figure. Do not place the indoor unit where there could
be direct sunlight shining on it. Also, this location must be
suitable for piping and drainage, and be away from doors or
windows.
min. 50
(Space for
maintenance)
Air flow
(Indoor)
The refrigerant piping can be routed to the unit in a
number of ways (left or right from the back of the unit), by
using the cut-out holes on the casing of the unit (see figure).
Bend the pipes carefully to the required position in order to
align it with the holes. For the side and bottom, hold the
bottom of the piping and then position it to the required
direction (see figure). The condensation drain hose can be
taped to the pipes.
Right-side, right-back or right-bottom piping
Routing Of Piping
Remove the screw holding the front panel.
1
2
4
5
6
3
Piping Routing
min. 50
(Space for
maintenance)
min. 30
(Space for
performance)
Required space
Right-back piping
Bind coolant pipe
and drain hose
together with
insulating tape.
All dimensions are in mm
Right-bottom
piping
Remove pipe port cover
here for right-bottom piping
Right-side
piping
Remove pipe port cover
here for right-side piping
Remove pipe port cover here for
left-bottom piping
Remove pipe port
cover here for
left-side piping
Left-back
piping
Left-side
piping
Left-bottom piping
Condensed Water Disposal Of Outdoor Unit
(Heat Pump Unit Only)
• There are 2 holes on the base of Outdoor Unit for
condensed water to flow out. Insert the drain elbow
to one of the holes.
• To install the drain elbow, first insert one portion of the
hook to the base (portion A), then pull the drain elbow
in the direction shown by the arrow while inserting the
other portion to the base. After installation, check to
ensure that the drain elbow clings to base firmly.
• If the unit is installed in a snowy and chilly area,
condensed water may freeze in the base. In such case,
please remove plug at the bottom of unit to smooth the
drainage.
Please remove side
plate when connecting
the piping and
connecting cord
PUSH & PULL UP
BASE
A
DRAIN
ELBOW
DRAIN
ELBOW
PLUG
Left-side, left-back or left-bottom piping
