IM709 17

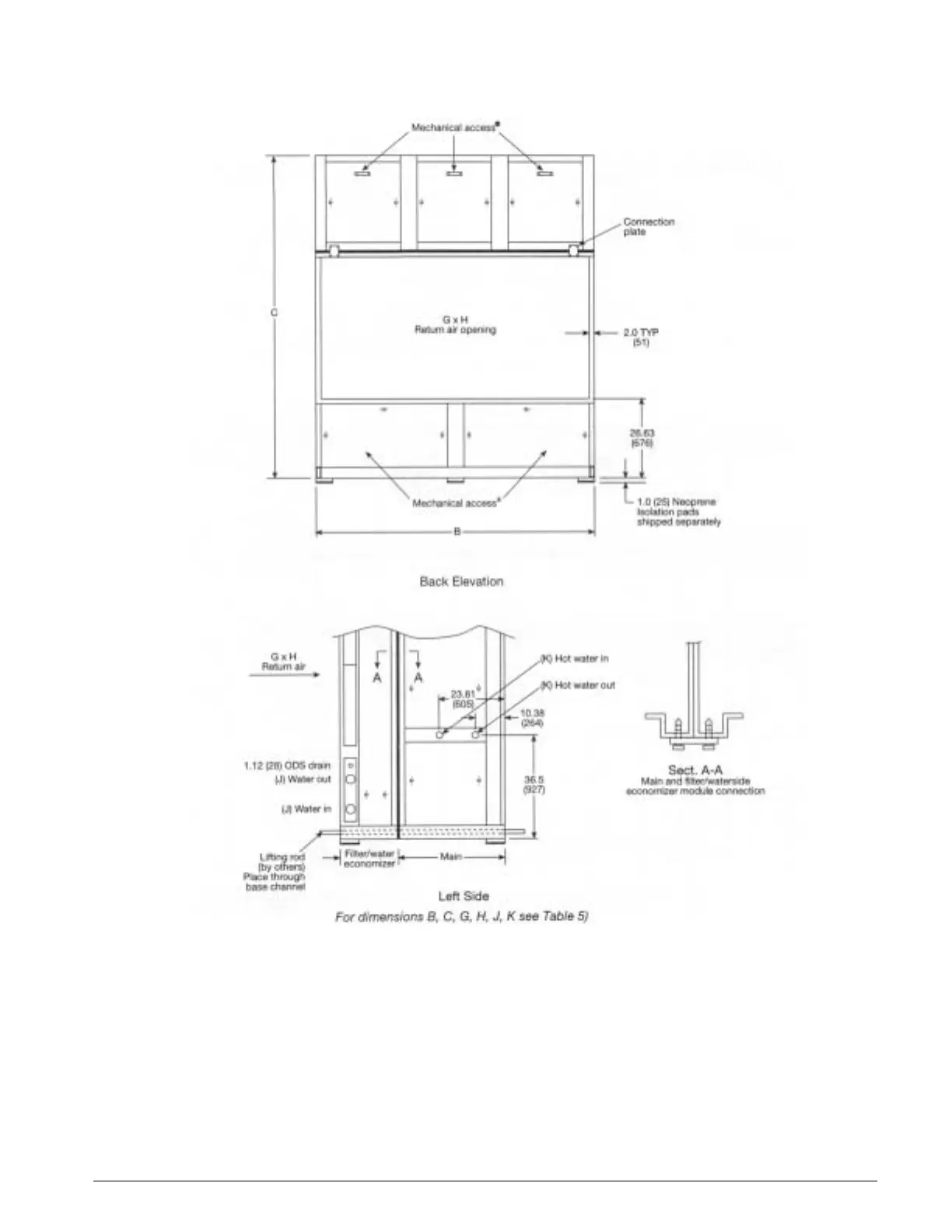

Figure 16. Back Elevation and Left Side
Notes:
6. Filters are removable from the rear of the unit or through a
side filter access door, located on the piping connection side.
7. Length will be increased by approximately 3.5” (89mm),
for piping connections when water economizer option is
ordered.
8. Mechanical access panel(s) in the back of the unit start 2”
(51mm) below return duct opening. Do not obstruct the
access panel(s).
9. There are two access doors on 018C, 023C and 028C
instead of three as shown.
10. All dimensions are given in inches with millimeters in
parentheses.
11. All dimensions ± 0.25” (6.4mm).
