McQuay WMC Service Manual

www.DaikinApplied.com 15 IOM 1210-1 • MAGNITUDE
®
MODEL WMC CHILLERS




                    



  




                          


  
                       


              
NOTES:



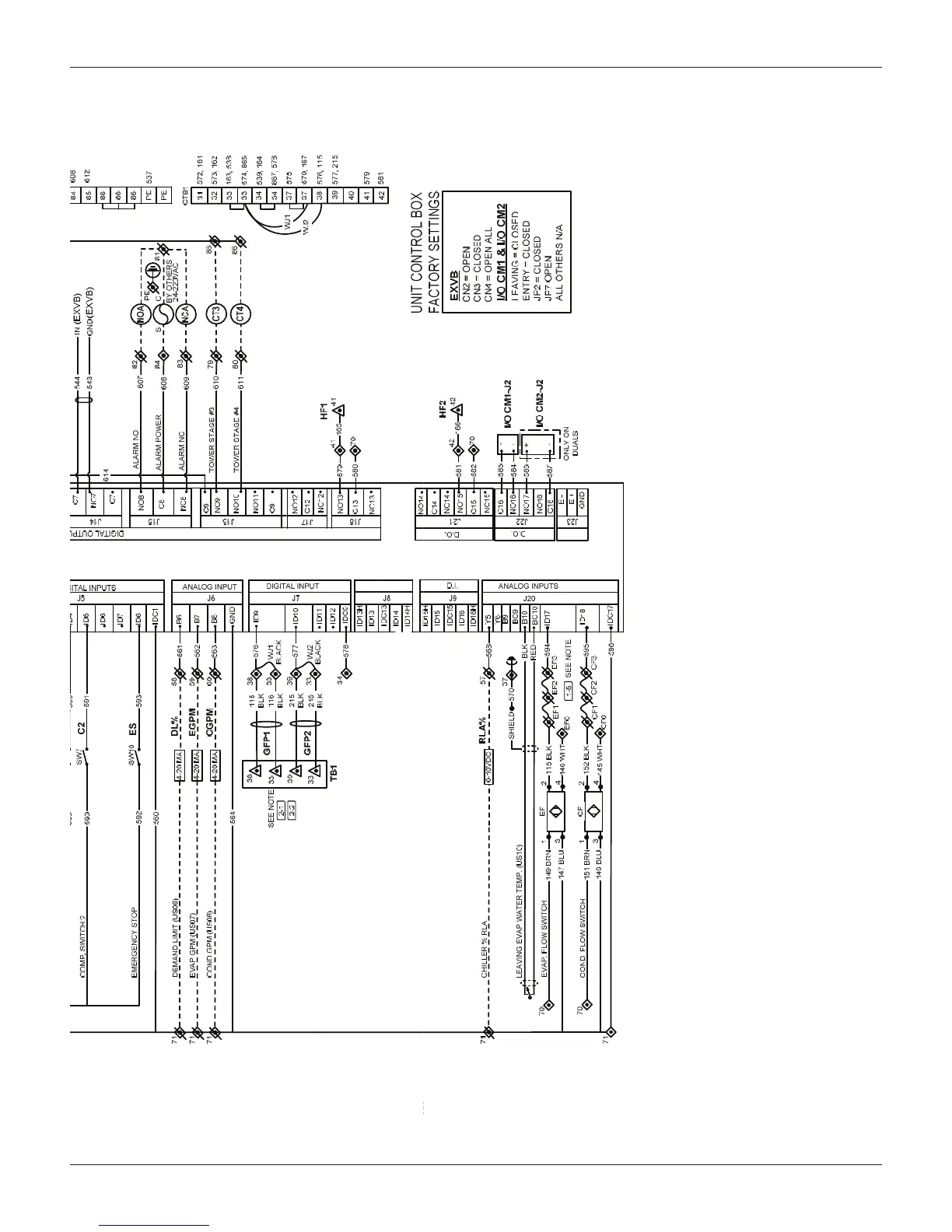

UNIT CONTROL BOX FACTORY ASSEMBLY:

JUMPERS
WJ1
AND
WJ2
MUST ONLY BE CONNECTED TO TERMINAL BLOCK
33
.


CHILLER FACTORY ASSEMBLY:

IF OPTIONAL
GFP1
IS USED THEN REMOVE JUMPER
WJ1
. OTHERWISE COMPLETE CONNECTION
WJ1
TO TERMINAL BOLOCK
38
.

IF OPTIONAL
GFP2
IS USED THEN REMOVE JUMPER
WJ2
. OTHERWISE COMPLETE CONNECTION
WJ2
TO TERMINAL BOLOCK
39
.

InsTallaTIon
