MCZ SUITE - 19-Air Stove Circuit Board

75
4
9
8
10
15
12
11
2
3
1
6
+
-
GND
SIGNAL
5V
GND
SIGNAL
5V
GND
SIGNAL
12V
ROSSO
BLU
ALTA TENSIONEBASSA TENSIONE
- + GND 12V
6,3 AT
14
13
30

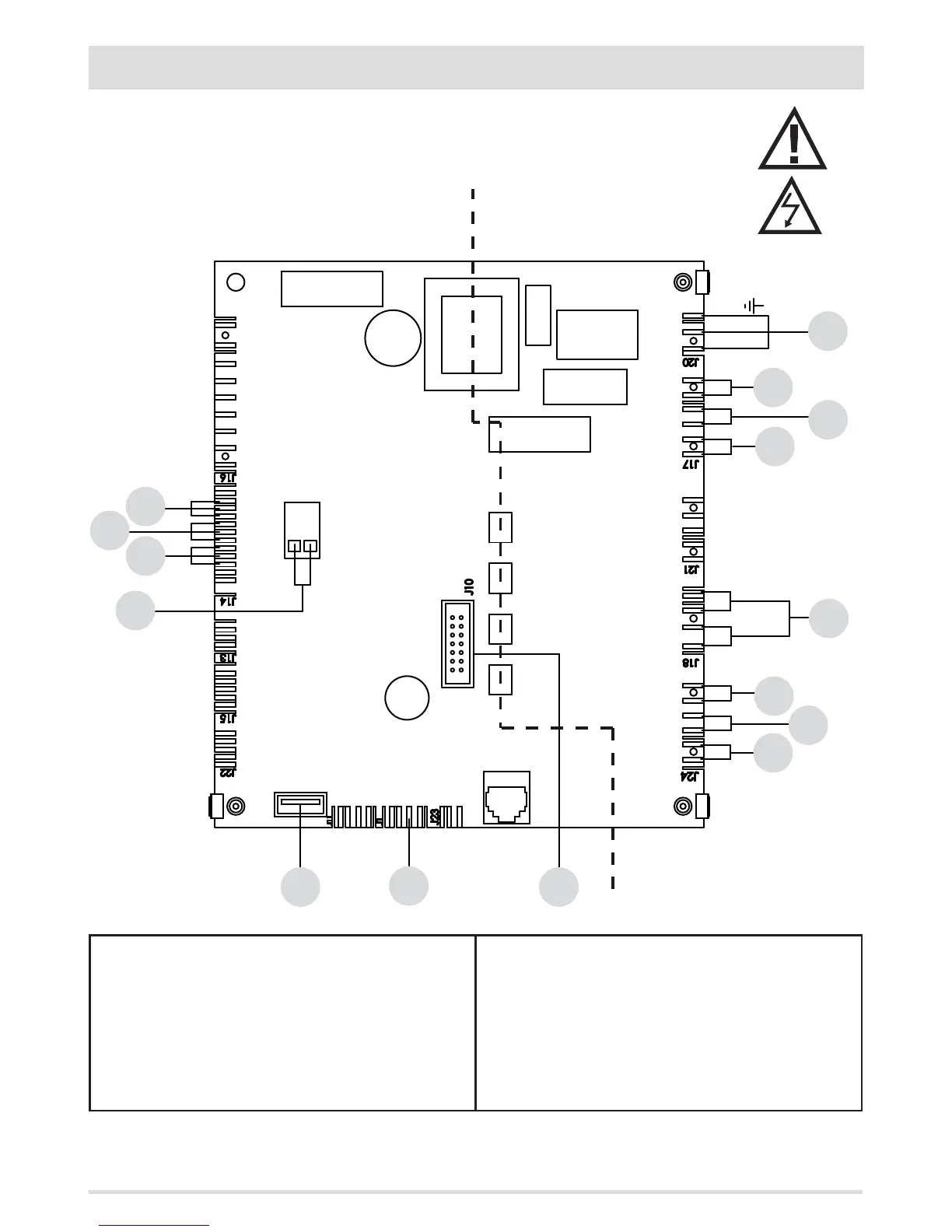

19-AIR STOVE CIRCUIT BOARD
AIR STOVE WIRING KEY
1. SMOKE FAN ENCODER
2. GEAR MOTOR ENCODER
3. PRESSURE TRANSDUCER
4. SMOKE TEMPERATURE PROBE
5. SOFTWARE UPDATE (USB)
6. MODBUS COMMUNICATION FOR MODEM, WI-FI, ETC.
7. EMERGENCY PANEL
8. HOPPER OVERLOAD CUT-OUT
9. AIR FAN 1
10. GEAR MOTOR
11. SMOKE FAN
12. SPARK PLUG
13. SWITCH
PLEASE NOTE The electrical wiring of individual components is tted with pre-wired connectors of dierent sizes.
LIVE ELECTRICAL CABLES
DISCONNECT THE POWER SUPPLY CABLE 230V BEFORE CARRYING OUT
ANY OPERATIONS ON THE ELECTRICAL BOARDS
