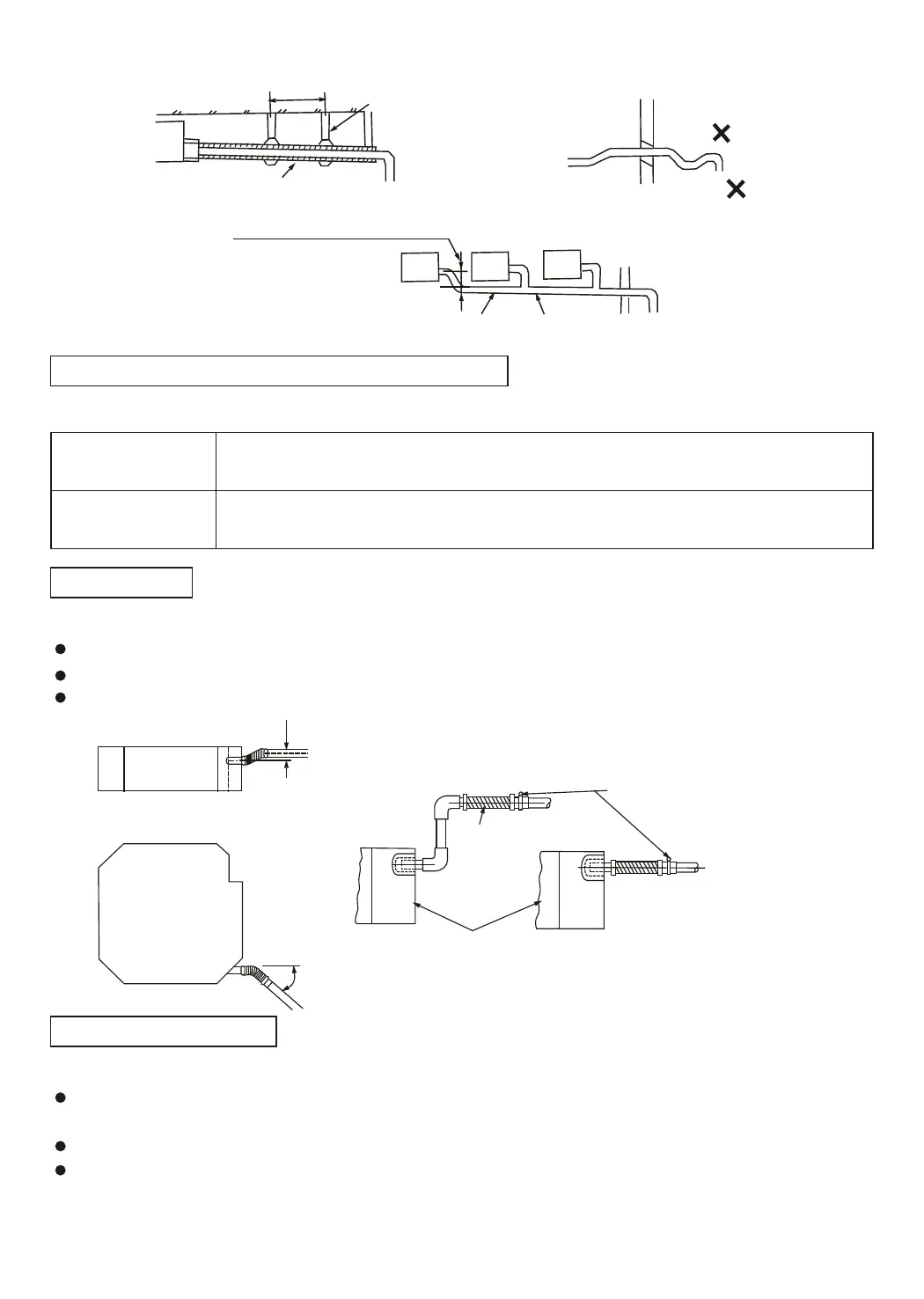

Drainage Pipe Material, Heat-insulating Material
Flexible Hose
Connection Procedure
Core shift adjustment
o
Bend 45 C(Maximum)
Hose band
Flexible Hose
Indoor Unit
The listed material should be used:
Measure diameter of the hard pipe using cutting method, and adjust the joining angle.
Connect the transparent pipe with the polyvinyl chloride pipe.
Pull out the flexible hose, do not over deform than illustrated below.
Be sure to bind it with the attached band.
Please place the flexible hose horizontally.
Use polyvinyl chloride glue at the connection part of the drainage pipe, be sure no water
leakage.
Paste glue at the front 40mm of the polyvinyl chloride pipe, insert it into the transparent pipe.
It needs 10 minutes for the glue to dry. Do not impose pressure on the connection during the
drying period.
Drainage Pipe
Material
Polyvinyl chloride pipe (f32mm outer diameter)
Foamed polyethylene insulation plate (10mm thickness)
Heat Insulation
Material
20
o
45
7
1.5m~2m
VP30
Support
Bend
Up and Down
FoldLean Downward over 1/100
As long as possible about (10mm)
Lean Downward
over 1/100
To Next Page
