-26-"

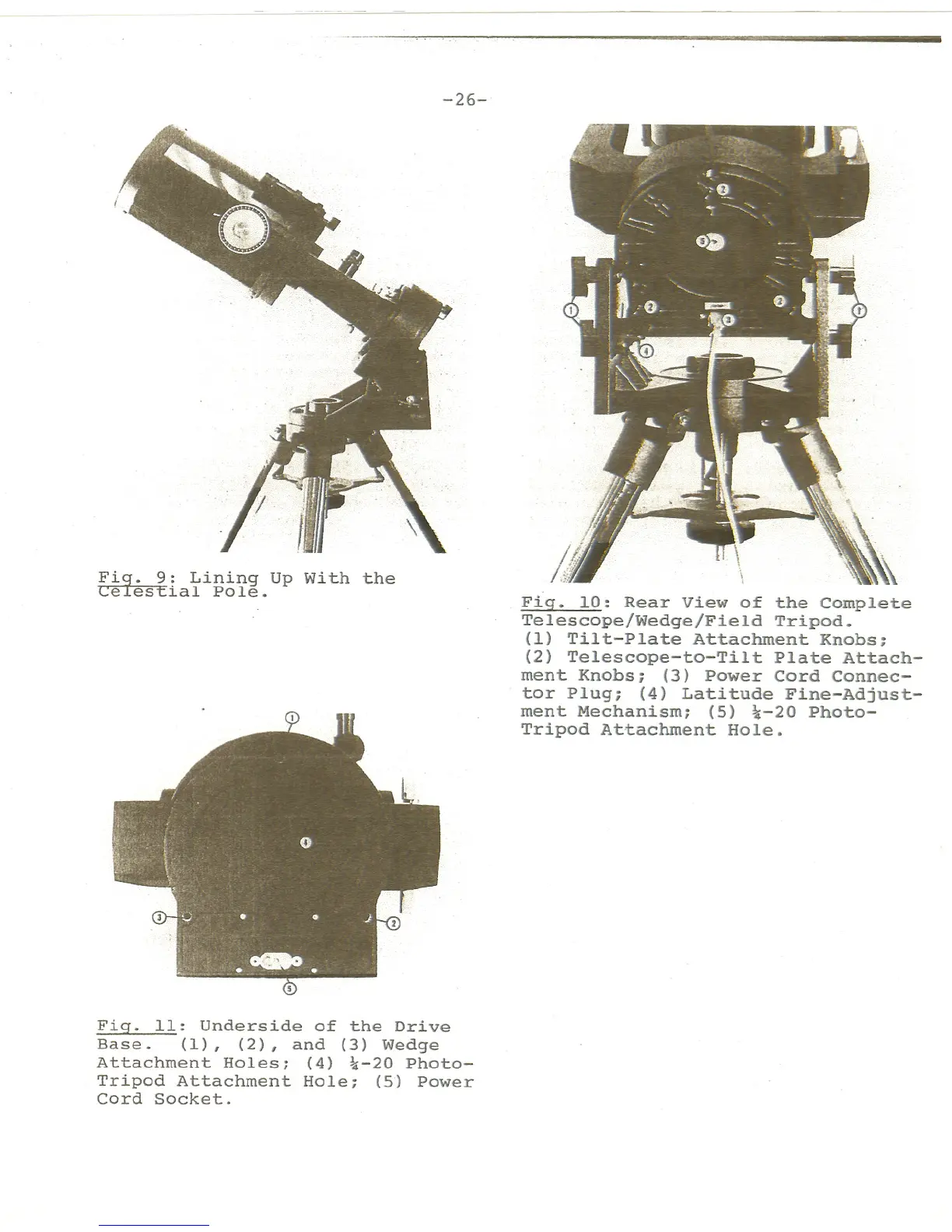

Fiy. 9: Lining Up With thece estial Pole.
Fiq. 11: Underside of the Drive
Base. (1), (2), and (3) Wedge
Attachment Holes; (4) ~-20 Photo-
Tripod Attachment Hole; (5")Power
Cord Socket.
Fiq. 10: Rear View of the Complete
Telescope/Wedge/Field Tripod.
(1) Ttlt-Plate Attachment Knobs;
(2) Telescope-to-Tilt Plate Attach-
ment Knobs; (3) Power Cord Connec-
tor Plug; (4) Latitude Fine-Adjust-
ment Mechanism; (5) ~-20 Photo-
Tripod Attachment Hole.
