Crossover Series June 1, 2012
Crossover Series Transport and Lifting Instructions
Driving or Winching onto or off of a Transport Vehicle
Always attach the machine to a winch when loading or unloading from a truck or trailer by driving.
Read and understand all safety, control, and operating information found on the machine and in this
manual before operating the machine.
• Attach the machine to a winch.
• Remove all machine tie downs. Remove wheel chocks.
Driving
• Turn the Base Key Switch to PLATFORM. Check that the Emergency Stop Switch is
reset by turning it clockwise.
• Enter the platform and reset the Platform Emergency Stop Switch.
•Test platform control functions.
• Carefully drive the machine off the transport vehicle with the winch attached.
Note: The brakes are automatically released for driving and will automatically
apply when the machine stops.
Win ch ing
• Disengage brakes (see Disengage Brakes before Towing or Winching on page 38).
• Carefully operate the winch to lower the machine down the ramp.
• Chock the wheels and engage the brakes.
Securing to Truck or Trailer for Transport
• Turn the key Selector Key Switch to OFF and remove the key before transport.
• Inspect the entire machine for loose or unsecured items.
• Use chains or straps of ample load capacity.
• Use a minimum of four (4) chains or straps.
• Adjust the rigging to prevent damage to the chains and the machine.

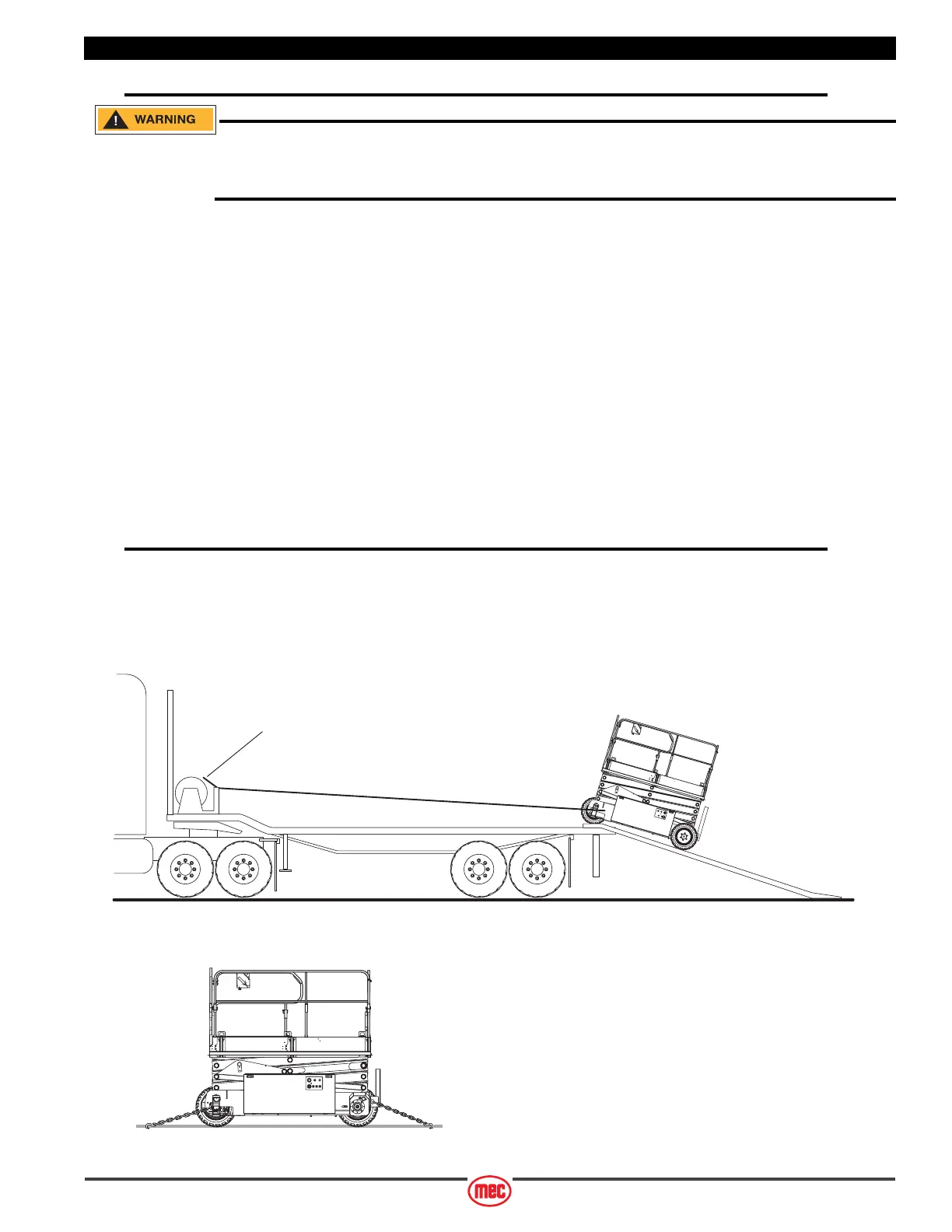

ART_4172
Winch
Wheel
not shown for clarity
of hook attachment holes.
Near-side wheels not shown for clarity.
Truck Tie Down
Minimum 4 chains of adequate capacity
To Next Page
