—Specifications—
60-J Electric
Working Height* 20 m
Platform Height 18 m
Maximum Drive Height 18m
Maximum Outreach 13 m
Turntable Swing Continuous
Jib Range Of Motion 135°
Platform Rotation 180° (90° each side)
Machine Weight** (Unloaded) 8,535 kg
Lift Capacity
Unrestricted Standard 227 kg
Restricted Option 340 kg
Maximum Occupants 2
Stowed Height 2.54 m
Overall Length 9.3 m
Overall Width 2.44 m
Tailswing 1.19 m
Wheel Base 2.56 m
Platform Details Width 2.44 m
Depth 1 m
Entry 1 End Swing Gate,
2 Slide Bar Entries
Turning Radius, Inside 2 m
Ground Clearance 34 cm
Lift Speed 55 sec
Extend Speed 25 sec
Jib Lift Speed 20 sec
Drive Speed
(Proportional)
Stowed 0-5 km/h
Raised or extended 0-.8 km/h
Gradeability Stowed, downhill 45%/24.2°
Stowed, uphill 45%/24.2°
Breakover Angle 40%/22°
Axle Oscillation 10° (5° each side)
Maximum Allowable
Operating Wind Speed
12.5 m/sec
(45 km/h)
Power Source 72v DC Battery Pack;
420 A/H
Hydraulic Fluid Capacity 150 liter Sound Pressure At Workstation does not exceed
80 dB(A)
Maximum Vibration does not exceed
2.5 m/sec
2
at operator’s position
Sound Power Level does not exceed
86 dB @ 1m
Ambient Operating Range -30° C minimum;
50° C maximum
Ground Pressure/Wheel (Maximum) 2744 kg
Wheel Lug Nut Torque 203 Nm Maximum Wheel Load
5 kg/cm
2
Meets applicable requirements of EN280:2013. Allowable ambient temperature range: -29° C to 49°C. Consult with MEC for
operation outside of this range. *Working Height adds 2 m to platform height. **Weight may increase with certain options.

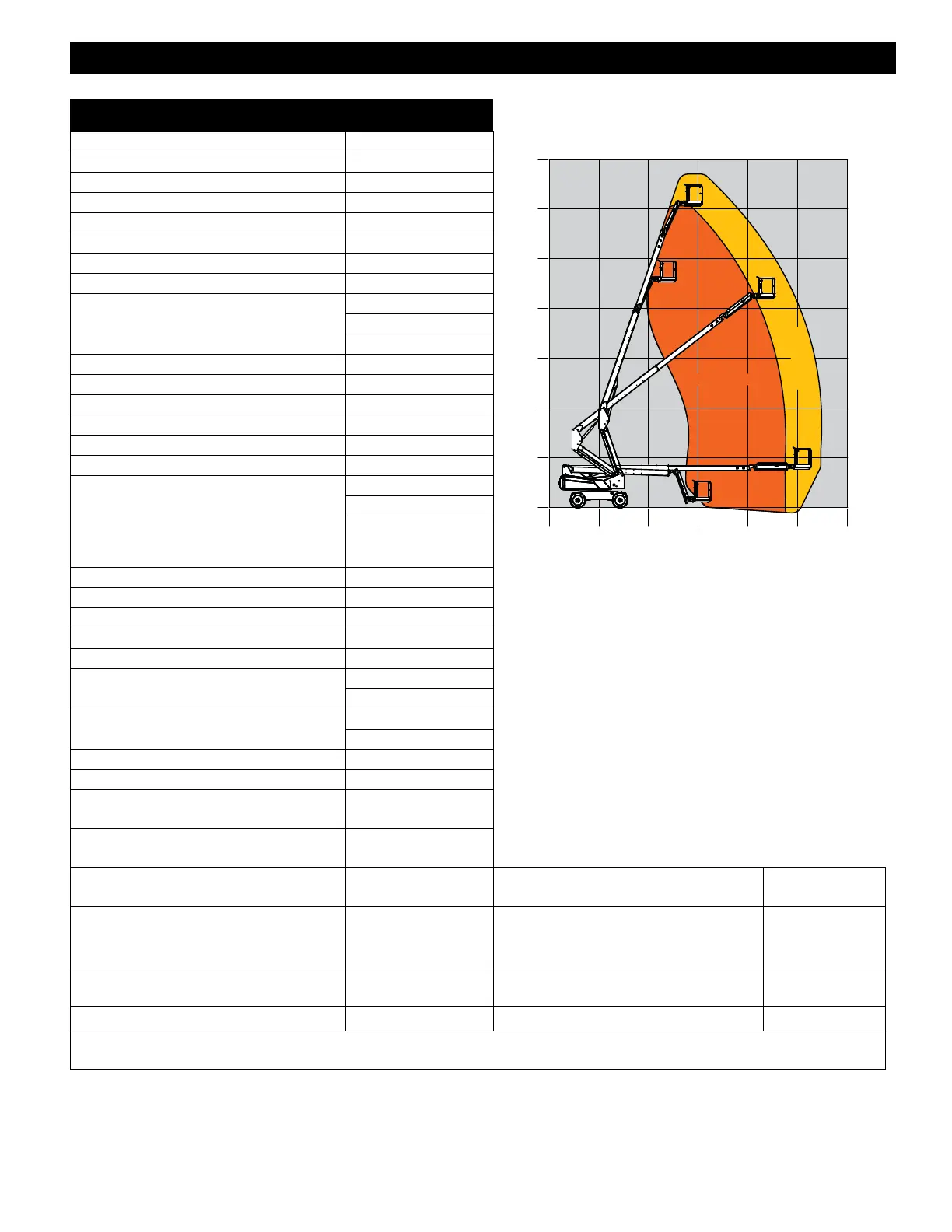

ART_4820
340 KG
RESTRICTED
OPTION
227 KG
UNREST
RICTED
0m
3m
6.1m
9.1m
12.2m
15.2m
3m
0m
3m
6.1m
9.1m
12.2m
15.2m
18.3m
21.3m
