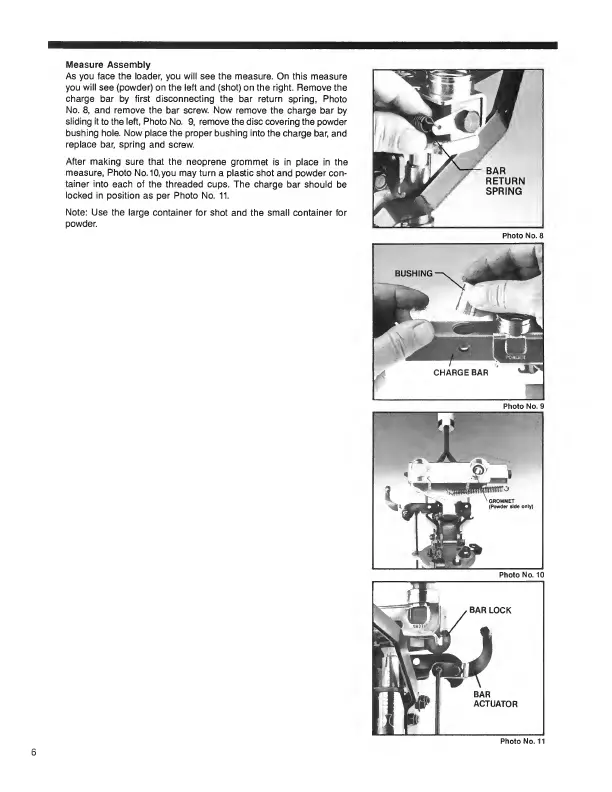

Measure Assembly
As you face the loader, you will see the measure. On this measure
you will see (powder) on the left and (shot) on the right. Remove the
charge bar by first disconnecting the bar return spring, Photo
No. 8, and remove the bar screw. Now remove the charge bar by
sliding it to the left, Photo No. 9, remove the disc covering the powder
bushing hole. Now place the proper bushing into the charge bar, and
replace bar, spring and screw.
After making sure that the neoprene grommet is in place in the
measure, Photo No. 10,you may turn a plastic shot and powder con¬
tainer into each of the threaded cups. The charge bar should be
locked in position as per Photo No. 11.
Note: Use the large container for shot and the small container for
powder.
Photo No. 11
