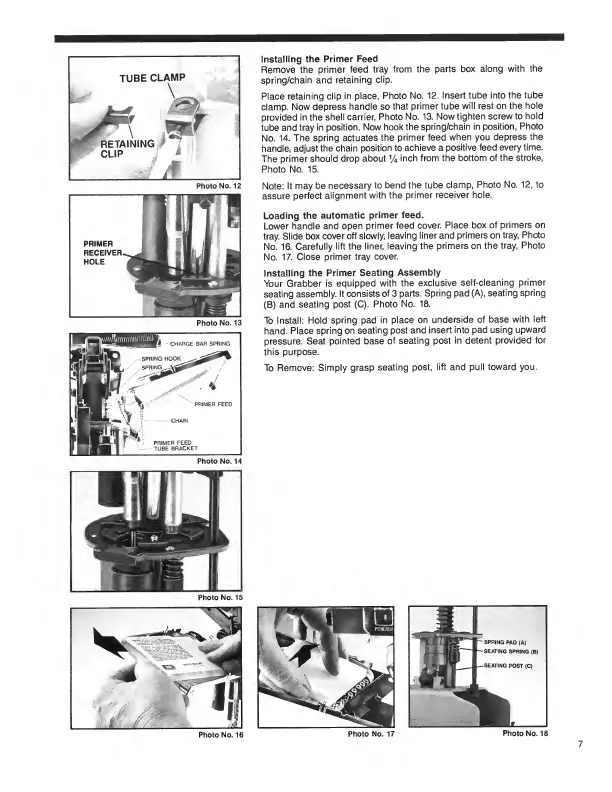

Installing the Primer Feed
Remove the primer feed tray from the parts box along with the
spring/chain and retaining clip.
Place retaining clip in place, Photo No. 12. Insert tube into the tube
clamp. Now depress handle so that primer tube will rest on the hole
provided in the shell carrier, Photo No. 13. Now tighten screw to hold
tube and tray in position. Now hook the spring/chain in position, Photo
No. 14. The spring actuates the primer feed when you depress the
handle, adjust the chain position to achieve a positive feed every time.
The primer should drop about y 4 inch from the bottom of the stroke,
Photo No. 15.
Note: It may be necessary to bend the tube clamp, Photo No. 12, to
assure perfect alignment with the primer receiver hole.
Loading the automatic primer feed.
Lower handle and open primer feed cover. Place box of primers on
tray. Slide box cover off slowly, leaving liner and primers on tray, Photo
No. 16. Carefully lift the liner, leaving the primers on the tray, Photo
No. 17. Close primer tray cover.
Installing the Primer Seating Assembly
Your Grabber is equipped with the exclusive self-cleaning primer
seating assembly. It consists of 3 parts. Spring pad (A), seating spring
(B) and seating post (C). Photo No. 18.
To Install: Hold spring pad in place on underside of base with left
hand. Place spring on seating post and insert into pad using upward
pressure. Seat pointed base of seating post in detent provided for
this purpose.
To Remove: Simply grasp seating post, lift and pull toward you.
