9. Maintenance & Lubrication

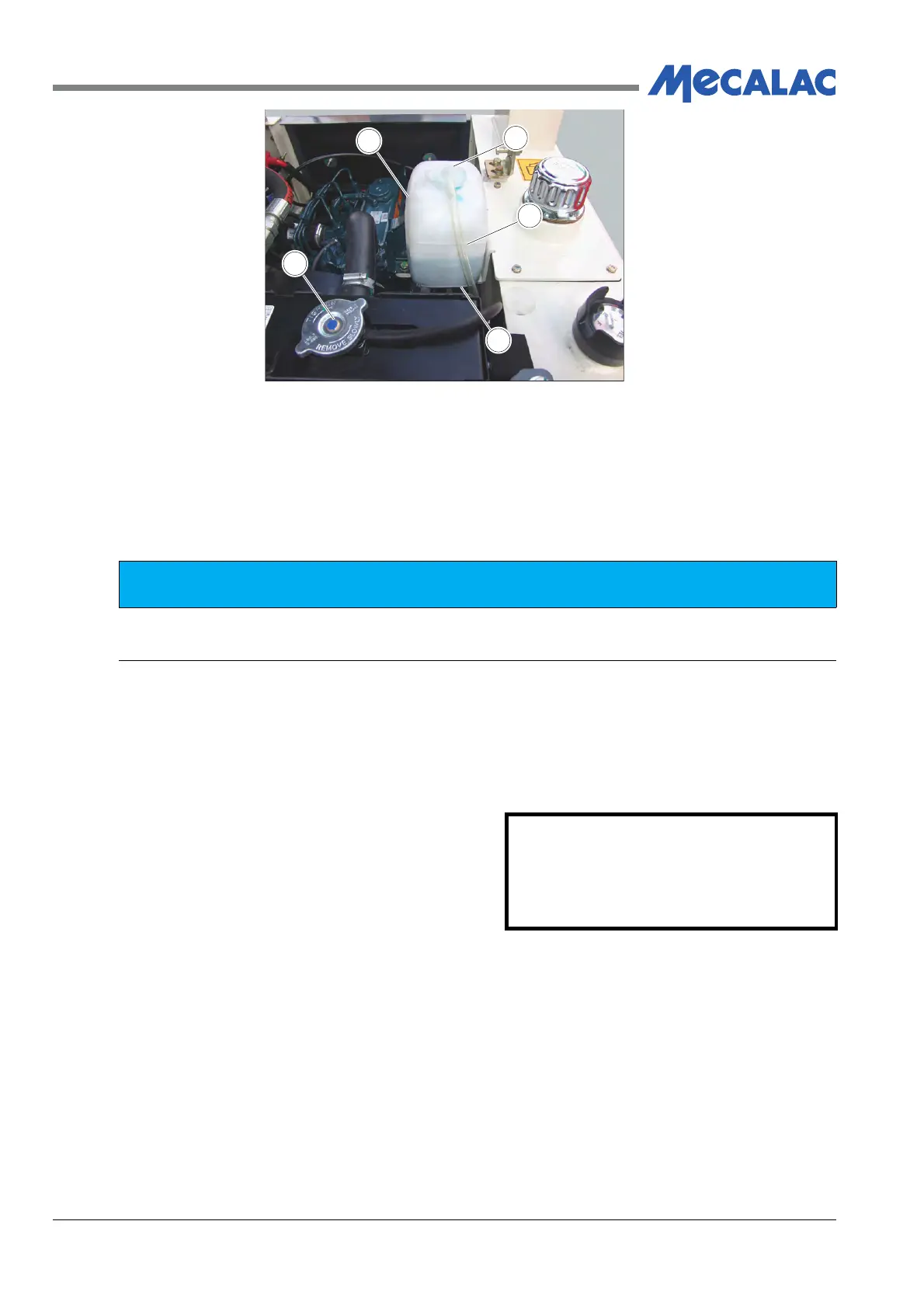

.Figure 9.10 - Cooling System
1. Header Tank
2. Filler Cap
3. Full Mark
4. Add Mark
5. Radiator Cap
(2) Coolant
The coolant used to top up the cooling system must be a pre-mixed solution of antifreeze and
water in the correct ratio for the temperature range the machine is to be used in. Refer to
paragraph 9.17. - 3.
9.12 Hydraulic System
ALWAYS take extreme care to maintain the
cleanliness of the hydraulic system. This will
lead to fewer hydraulic failures.
Always thoroughly clean machine before any
hydraulic maintenance. Use paper roll, not rag,
to wipe parts.
Always use fresh, clean hydraulic oil from a sealed container.
Never use dirty containers for oil storage.
Never use dirty containers or funnels for filling hydraulic system.
A filler cap incorporating a dipstick is fitted to the top of the hydraulic tank. Figure 9.11 refers.
An indicator on the filter when in the red section indicates that the filter needs changing.
NOTICE
Never over fill the expansion tank. Do not use anti leak additives in the cooling system. Never
run the engine without coolant in the system.
1
2
3
4
5
Keeping hydraulic
systems clean can lead
to massive cost savings.
