DER2 digital regulator instruction manual - rev. 02 - pag. 8

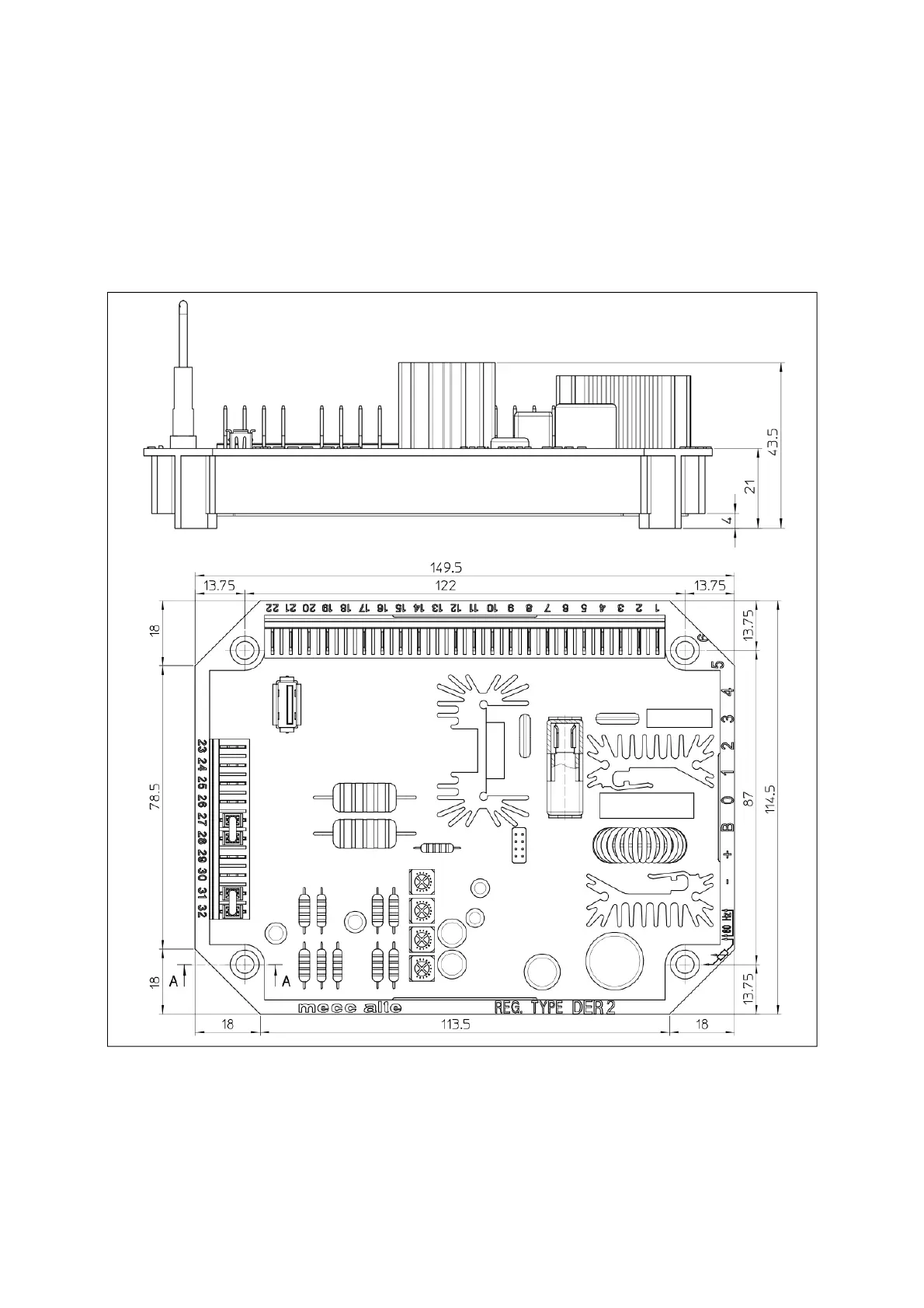

1. Overall dimensions drawings
dimensions in mm
Fig 3
2. Connections
The digital regulator connections depend on the application and excitation system.
Figure 1 shows the functional aspect of the connection points to the regulator
An error in connection may have deadly consequences for the unit.
Carefully check to make sure that all connections are precise and in accordance with the attached drawings,
before turning on the power.
INSTALLATION
Upon receipt of the digital regulator, perform a visual inspection to ensure that no damage has been
sustained during transportation and movement of the equipment. In the event of damage, advise the shipper,
the insurance company, the seller or Mecc Alte immediately. If the regulator is not installed immediately,
store it in its original packaging in a dust and humidity-free environment.
The regulator is normally installed in the generator terminal box. It is fixed with two M4x25 screws and must
be installed in a location where the temperature does not exceed the environmental conditions foreseen. The
regulator is equipped with a 5A fast-acting protection fuse. If necessary, the fuse must be replaced only wiith
a fuse of the same type and rating.
