Mecer IVR-1200MPPT User Manual

6

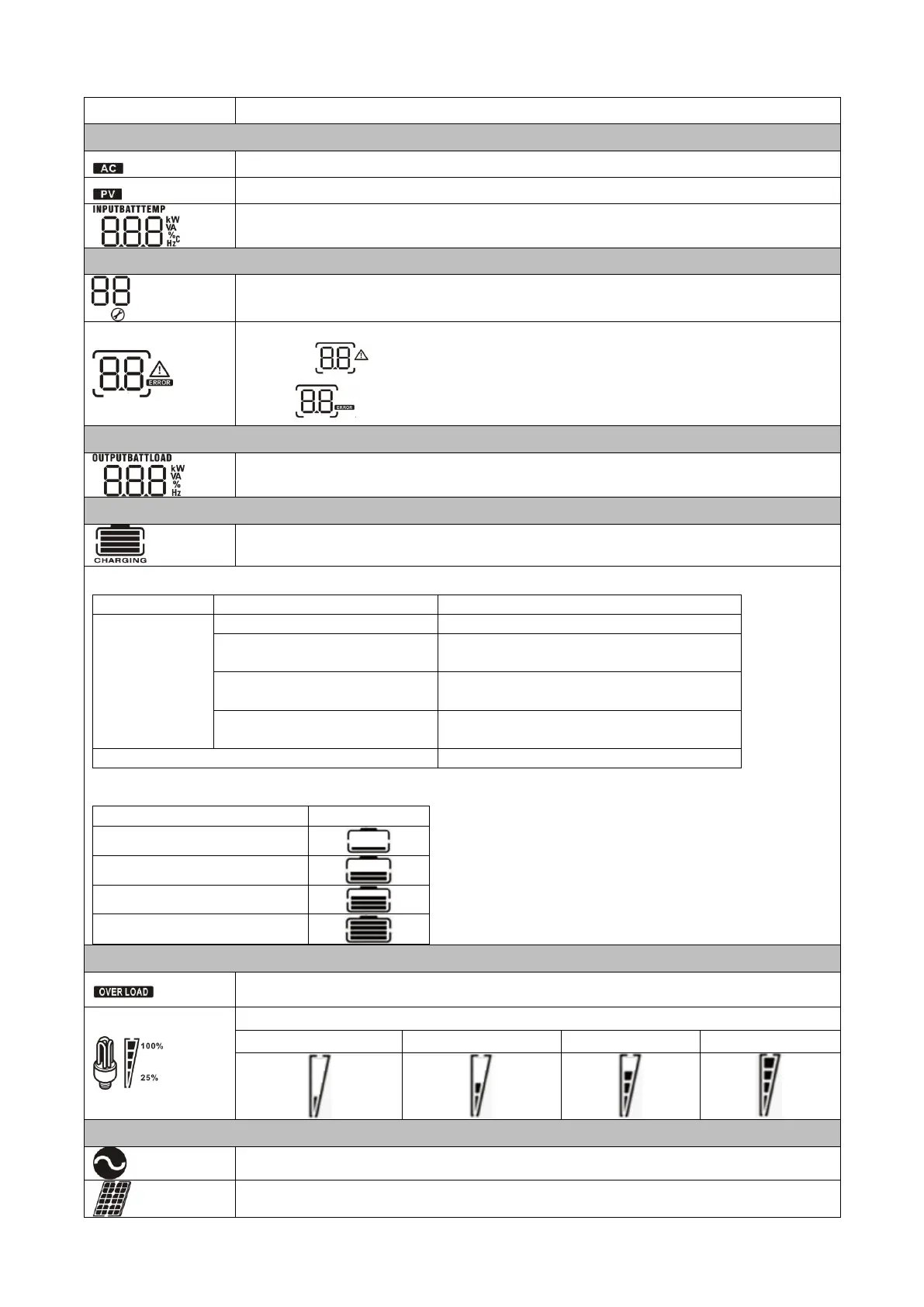

LCD Display
Display
Function
Input source information
Indicates the AC input
Indicates the PV input
Indicates input voltage, input frequency, PV voltage, charging current, battery voltage,
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: Flashing with warning code
Fault: Lighting with fault code
Output Information
Indicates the output voltage, output frequency, load percent, load in VA, load in Watt,
main board firmware version and SCC firmware version
Battery Information
Indicates the Battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode,
charging status in line mode.
In AC mode, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
< 11Vdc/pcs
4 bars will flash in turns.
11Vdc ~ 11.5Vdc/pcs
Bottom bar will be on and the other three
bars will flash in turns.
11.5Vdc ~ 12.5Vdc/pcs
Bottom two bars will be on and the other
two bars will flash in turns.
> 12.5Vdc/pcs
Bottom three bars will be on and the top
bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Battery Voltage
LCD Display
< 11Vdc/pcs
11.0Vdc ~ 11.5Vdc/pcs
11.5Vdc ~ 12.5Vdc/pcs
> 12.5Vdc/pcs
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74%, and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Mode operation information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel
