BRIEF INTRODUCTION
MAIN COMPONENTS OF THE FLAIL MOWER
Read this service manual before using the machine.
Flail mower is designed for pulverizing grass and short bramble, and shall be used in the indicated purpose.
The Flail mower consists of a rotating shaft with many blades attached to it. The blades cut the grass while traveling over
the working area. Rotational power to the shaft is provided by the tractor PTO through the gearbox in the center of the
machine.
The Flail mower attaches to the 3 point hitch on the tractor.

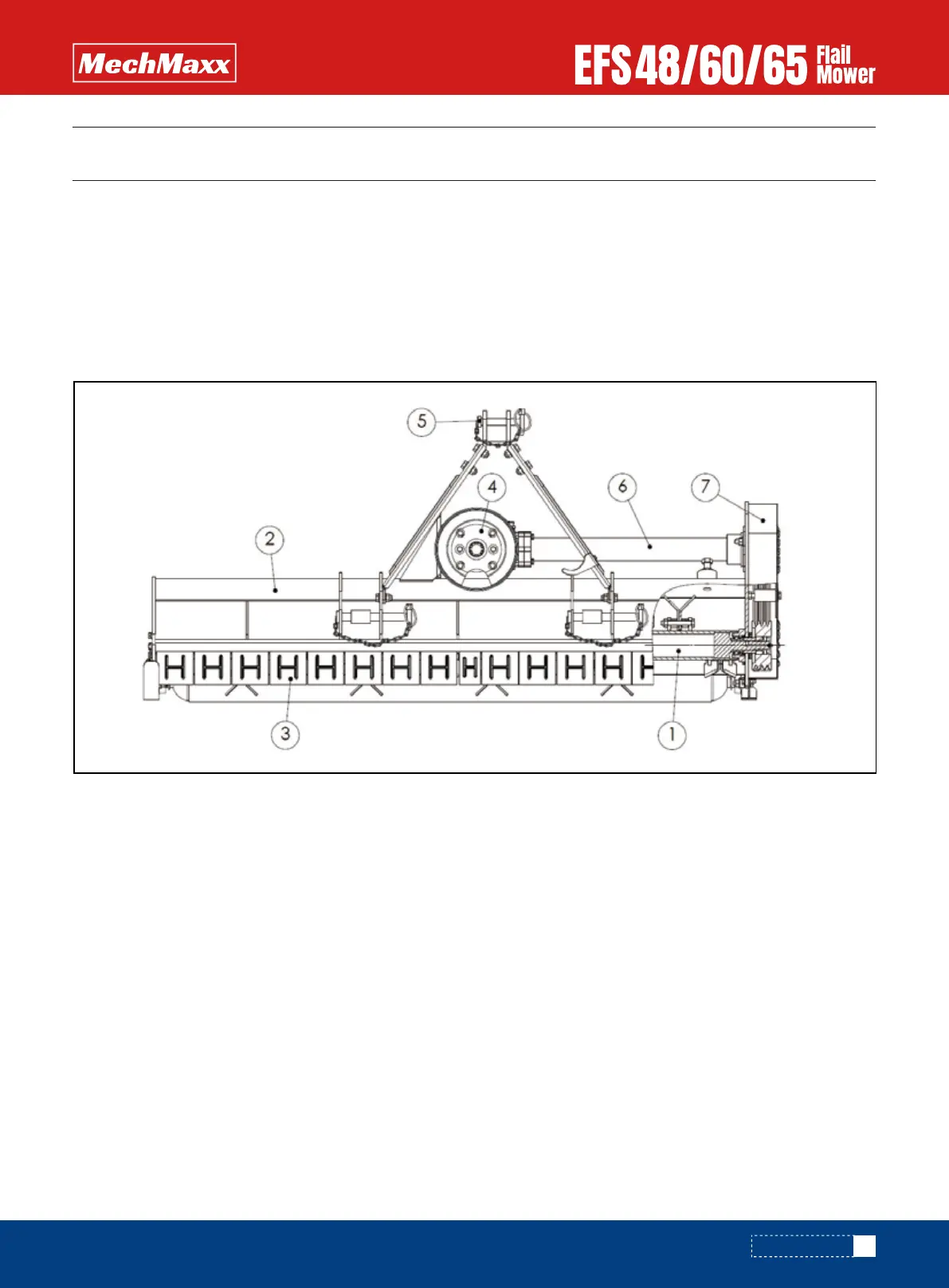

1. Blade axle
2. Blade axle cover
3. Combined fender
4. Gear box assembly
5. Suspension bracket
6. Transmission shaft
7. Belt wheel and belt
