ASSEMBLY
ASSEMBLY

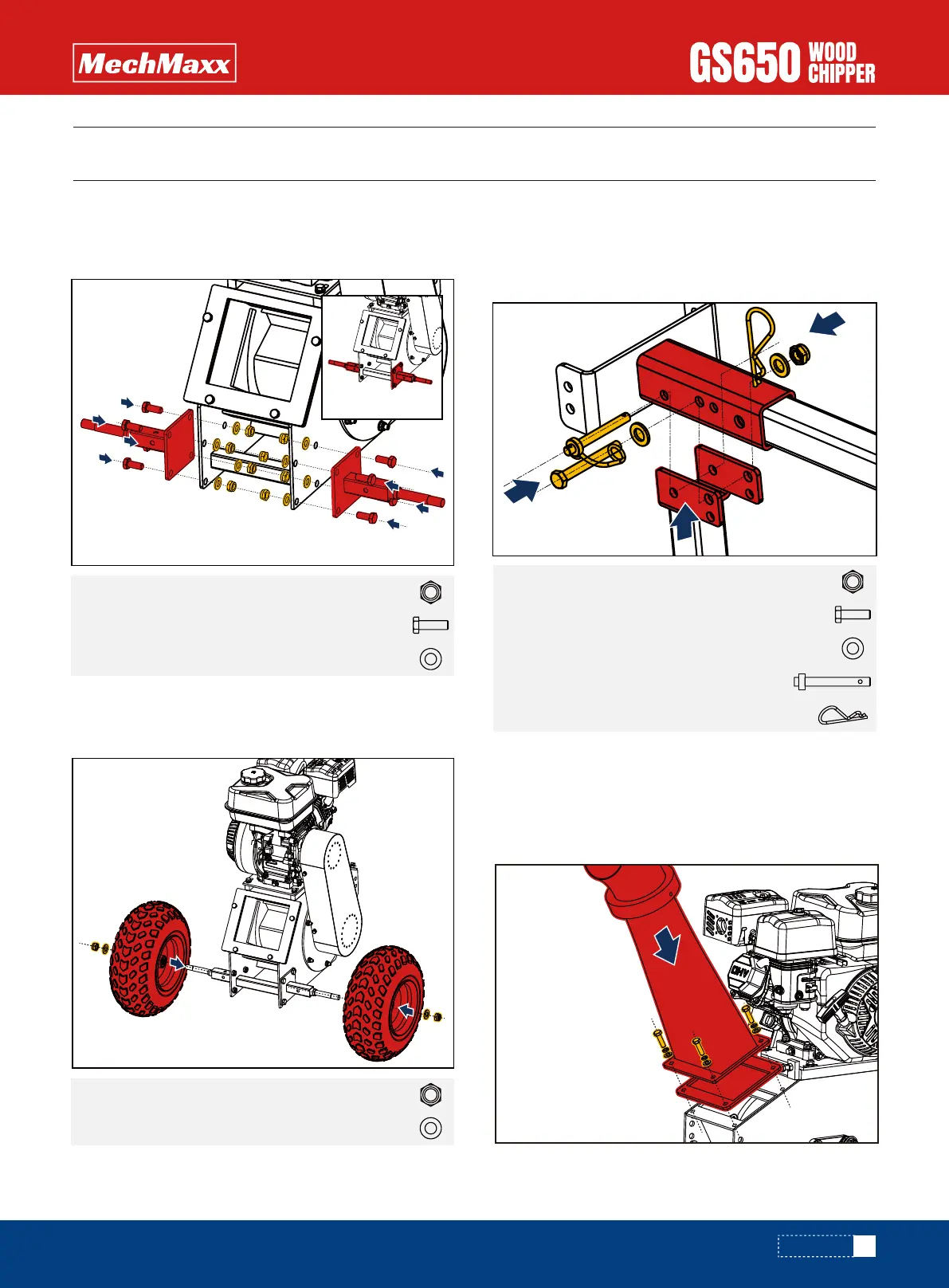

Attach the wheel axle to the base frame with M10x80 hex
bolts,flat washer 10 and M10 lock nuts.(See Figure 1)
Attach the support feet to the Tow bar using M10x80 hex
bolts, spring washers 10 and M10 Lock nuts. (see Figure
3).
Attach the Lower discharging chute to the base frame
with M8 × 30 hex bolts, spring washers 8 and flat wash-
ers 8 .(see Figure 4)
11
www. mechmaxx.com
Hex lock nut M101X
Hex bolt M10 X 80mm
Flat washer 10
1X
2X
Flat washer 8
1X
Flat washer 8
1X
Hex lock nut M108X
Hex bolt M10 X 80mm
Flat washer 10
8X
8X
Hex lock nut M142X
Flat washer 14
2X
Axle
Wheels
Attach the wheel to the axle with M14. (see Figure 2)
Figure 1
Figure 3
Figure 4
Figure 2
Base foot
Lower discharging chute
To Next Page
