MechMaxx GS650 - Tow Bar; In-Feeding Chute

12
www. mechmaxx.com

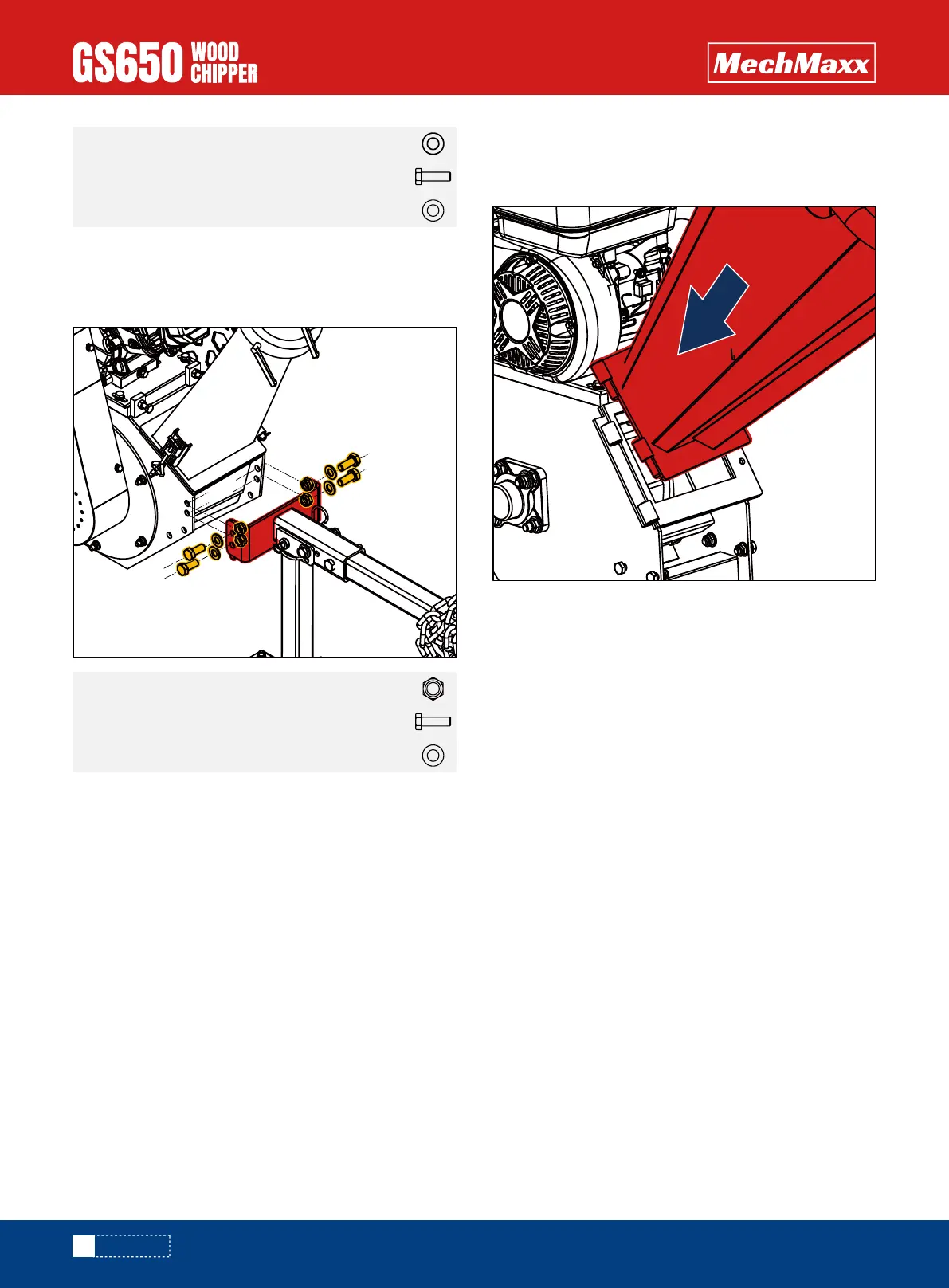

Attach the Tow bar to the basic frame using M10x25 hex
bolts, M10 lock nuts and pad 10(see Figure 3).
ASSEMBLY
Install the feed drum to the base frame and close the two
safety clasp(see Figure 6).
Tow bar
Spring washer 84X
Hex bolt M8 X 30mm
Flat washer 8
4X
4X
Hex lock nut M104X
Hex bolt M10 X 25mm
Flat washer 10
4X
4X
Figure 5
Figure 6
In-feeding chute
