Mecmesin AFG Series - Example Alarm Scenarios; PLC (Programmable Limit Controller)

page 15

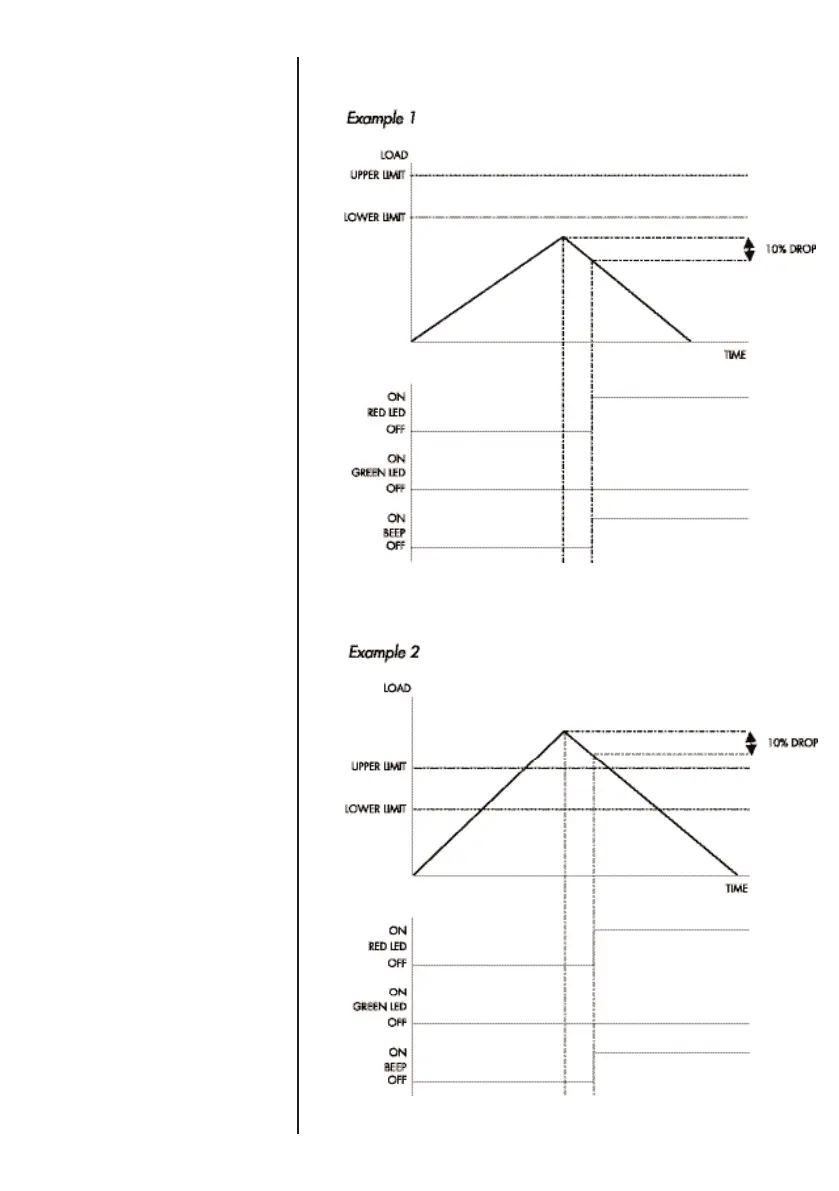

Example 1
Settings: -
- BOTH LED and audio
alarms are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-
scale (e.g. AFG 100N
must register drop of 10N)
Main display is set to 1st
peak tension screen
Example 2
Settings: -
- BOTH LED and audio
alarms are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-
scale (e.g. AFG 100N
must register drop of 10N)
Main display is set to 1st
peak tension screen
