Mecmesin AFG Series - PLC AT LIMITS Settings; PLC AT ALARM Settings; Stand Control Configuration

page 16

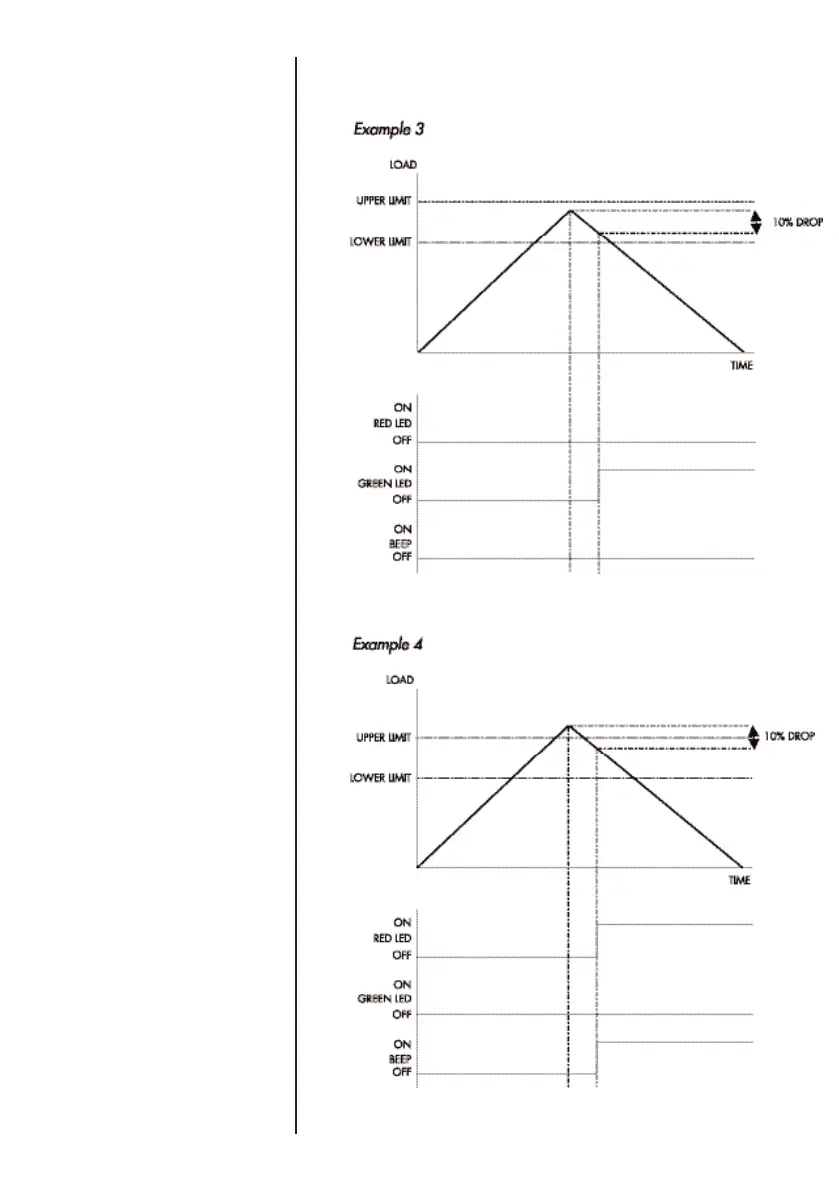

Example 3
Settings: -
- BOTH LED and audio alarms
are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-scale
(e.g. AFG 100N must
register drop of 10N)
Main display is set to 1st
peak tension screen
Example 4
Settings: -
- BOTH LED and audio alarms
are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-scale
(e.g. AFG 100N must
register drop of 10N)
Main display is set to 1st
peak tension screen
