Tensile forces are displayed on the AFG and recognised by
the symbol (See Fig. 2a)
Compressive forces are displayed on the AFG and recognised
by the symbol (See Fig. 2b)
A load indicator bar alerts the operator to how much load has
been applied to the transducer. As the load approaches the
maximum rating of the transducer, the indicator bar changes
appearance when above approximately 80% of the rated
capacity. This warns the operator that steps should be taken to
prevent excessive load being applied.
For tensile forces the indicator bar is solid then dotted. For
compressive forces the indicator bar is dotted then solid – see
Figure 2b.

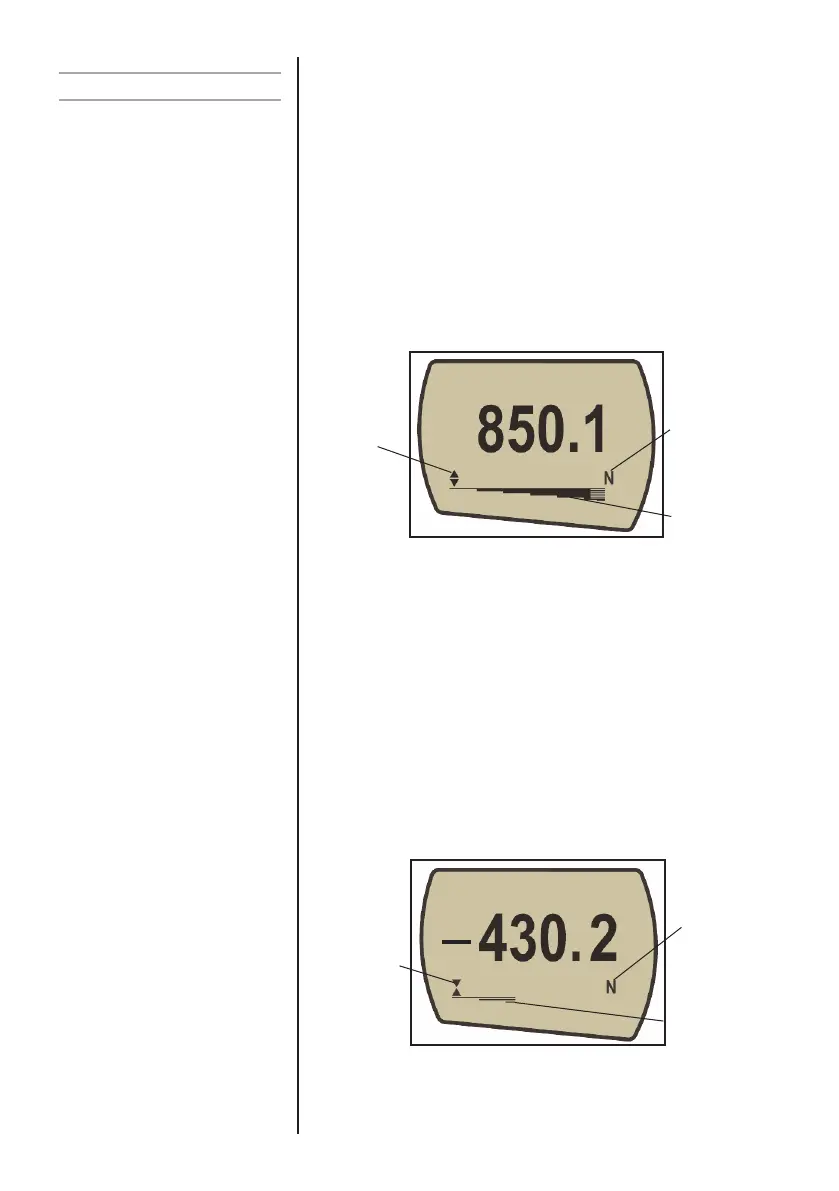

Fig. 2a
Symbol for
tension
Unit of
measurement
Load indicator
bar
Basic Functions
Display of Tension/
Compression
If the AFG has suffered a serious
overload condition, the load
indicator bar will be partially
displayed even when no load is
present. This is a warning that
the load cell is damaged and
you should immediately contact
your supplier to arrange repair.
Fig. 2b
Symbol for
compression
Unit of
measurement
Load indicator
bar
