Mecmesin AFG Series - Dual Max Display; Max Tension Display; Max Compression Display

page 7
Press the MAX key again and the display will show the
maximum tensile force identified by the symbol. (See Fig.
3b)
Press the MAX key again and the display will show the
maximum compressive force identified by the symbol. (See
Fig. 3c)

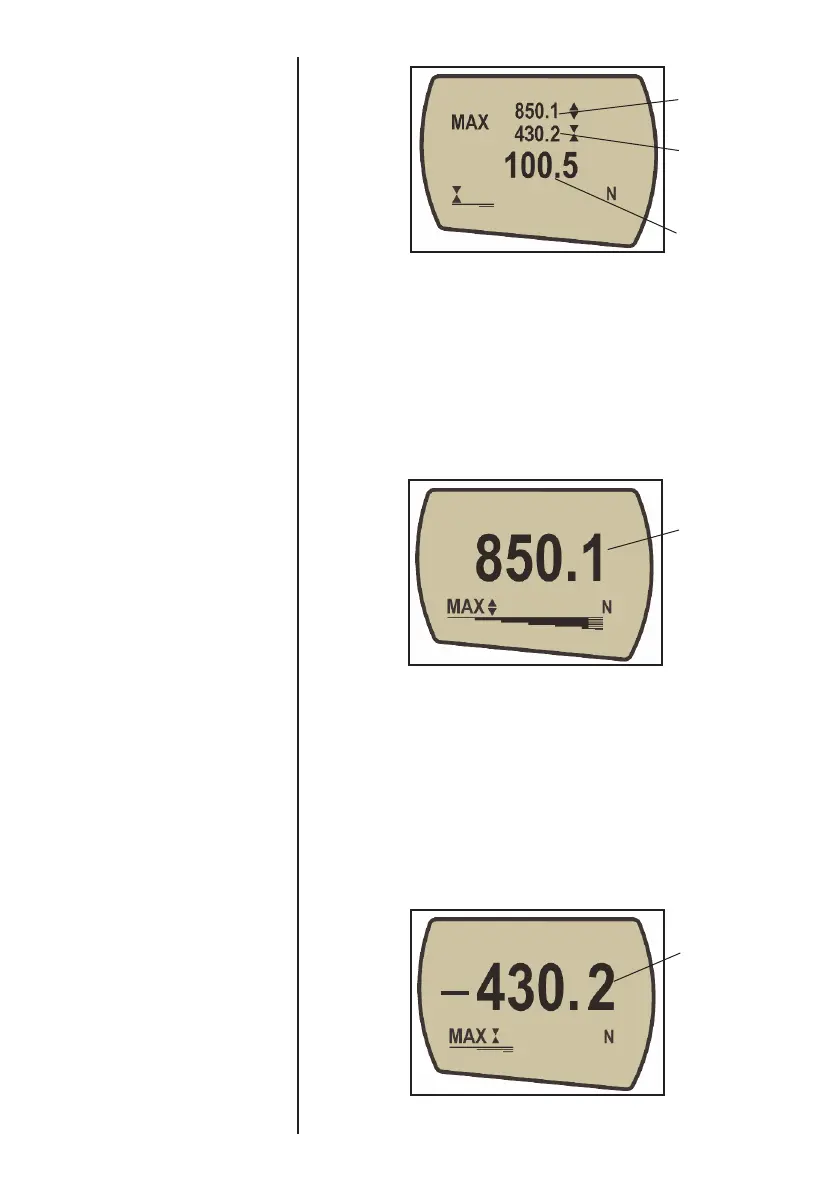

Fig. 3c
Max compression
reading
Fig. 3b
Max tension
reading
Fig. 3a
Max tension
reading
Max compression
reading
Load currently
applied to load
cell


Dual Max
Max Tension
Max Compression
