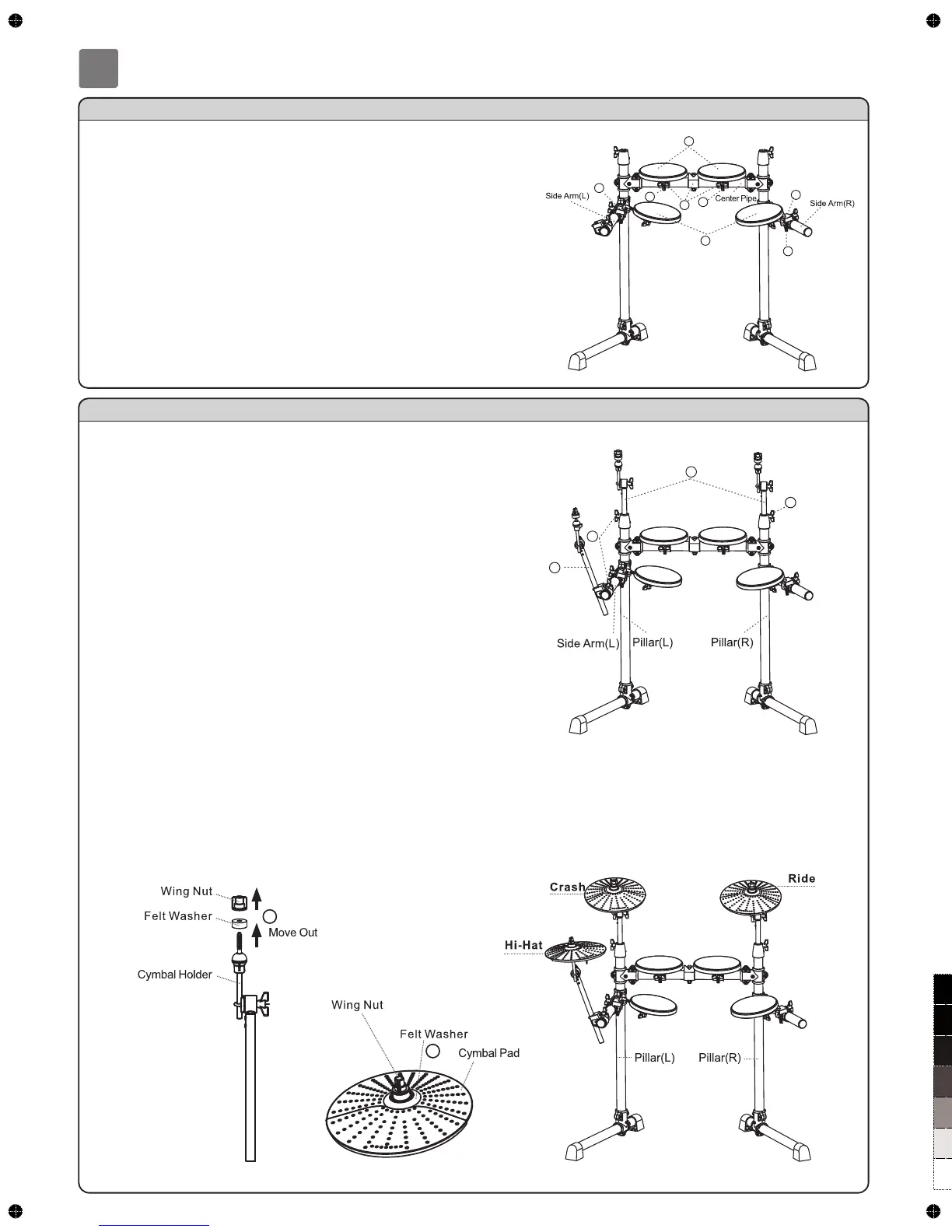

Attach the Parts
Attach the Pads
1. Loosen wing nut on the holder clamp, which is on the center pipe、
Side arm(L) and Side arm (R).
2. Insert the Snare L-Metal Rod into the holder clamp on the Side
arm(L),then insert the Tom&Module L-Metal Rod into the holder
clamp on the Center Pipe and Side Arm(R), tighten wing nuts on
the holder clamp.
3. Attach drum pads to the Snare L-Metal Rod and the Tom&Module
L-Metal Rods then tighten wing nuts , Repeat for each pad.
Attach the Cymbal Pads
1. Loosen wing nut on the holder clamp on pillar(L)、 、 pillar(R)
and side arm(L).
2. Insert each cymbal holder into pillar(L)、 pillar(R)、side arm(L),
and tighten wing nut.
3. Remove wing nut and felt washer from cymbal lilter.
4. Place cymbal pad on tilter assembly.
Re-attach the felt washer and wing nut. Tighten wing nut.
