3

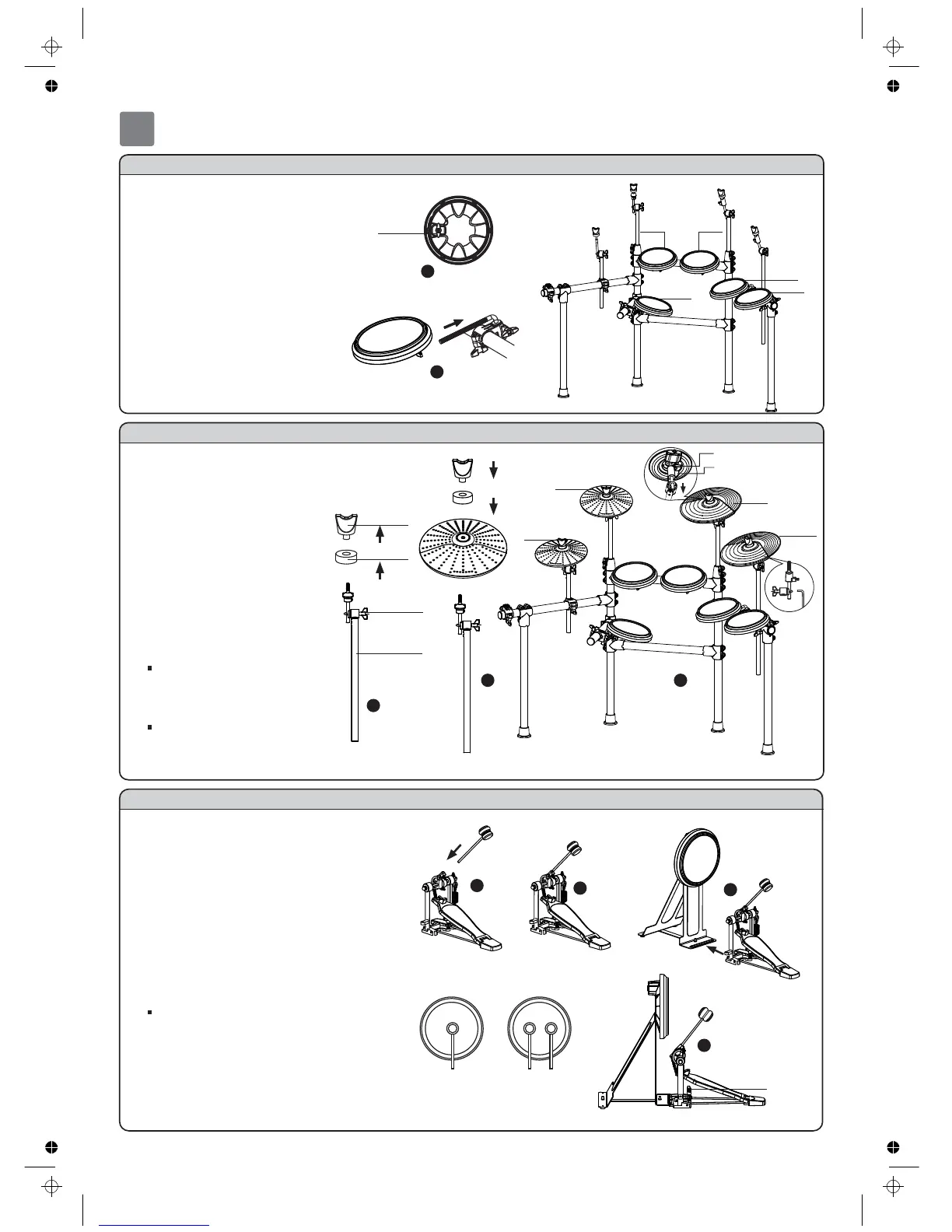

Attach the Parts
Attach the Pads
1
2
1. Loosen the wing nuts on the drum pads.
2. Attach the drum pads to the pad mounts,
and firmly tighten the wing nuts on the
drum pads.
Wing Nut
Attach the Cymbal Pads
1. Remove the wing nut and felt
washer from the cymbal tilter.
2. Place the cymbal pad, felt
washer, wing nut 3 assembly as
shown, and tighten the wing nut
3 to obtain an appropriate
amount of sway.
3. Adjust the cymbal pad position
with the wing nut 4.
Note:
Tightentheboltwiththe
hexagonkey asshown
partial enlargement
Wing Nut 3
Felt Washer
Wing Nut 4
Cymbal Tilter
1
2
Assemble the Kick
1. Insert the beater to the beater holder on
the foot pedal.
2. Adjust the beater position and tighten
the beater with the drum key.
3. Attach the foot pedal to the kick pad.
4. Adjust the beat position and tighten the
wing nut.
Note:
Position the one beater in the center
of the kick pad or the two beaters
equally apart from the center of the kick
pad as shown.
1
2
3
4
Wing Nut
Put the cymbal on the cymbal
adapter and locate the tap of
the adapter in the slot ofthe
cymbalbottom
Slot
Tap
3
Tom 2Tom 1
Tom 4
Snare
Ride
Crash 1
Hi-Hat
Hexagon
Key
Tom 3
Crash 2
