D-0123003-B 05/2019
Tinnometer Audiometry Scan

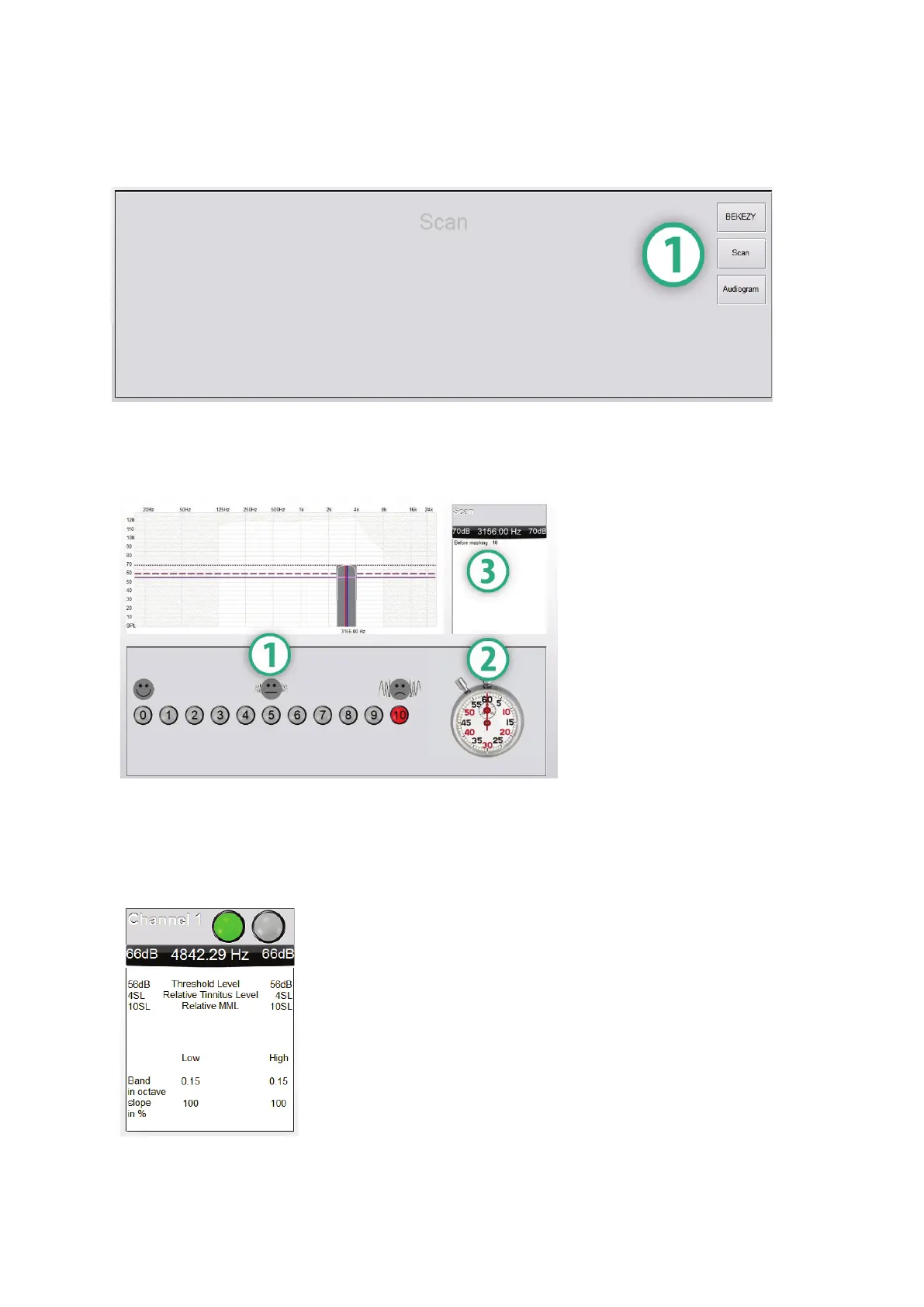

The Tinnometer Scan tab is designed for various forms of air conduction
audiometry. There are three types of audiometry that can be performed
with Tinnometer. You can access the forms of audiometry with the
buttons located by the number 1 in the image below.
Tinnometer Residual Inhibition (RI)
The Tinnometer RI tab is designed for Residual Inhibition (RI) testing for
a patient’s tinnitus. The controls in the RI tab are as follows:
1.
of tinnitus
bothersome level
2. Timer to begin
stimulus
3. Tracking of
patient’s tinnitus
bothersome level
as a function of
time
A complete tinnitus assessment must be performed prior to performing
testing in the RI tab. Once tinnitus assessment testing is completed,
optional residual inhibition testing can be performed with the following
steps:
1. Activating the channel
in which the tinnitus
assessment was
performed.
To Next Page
