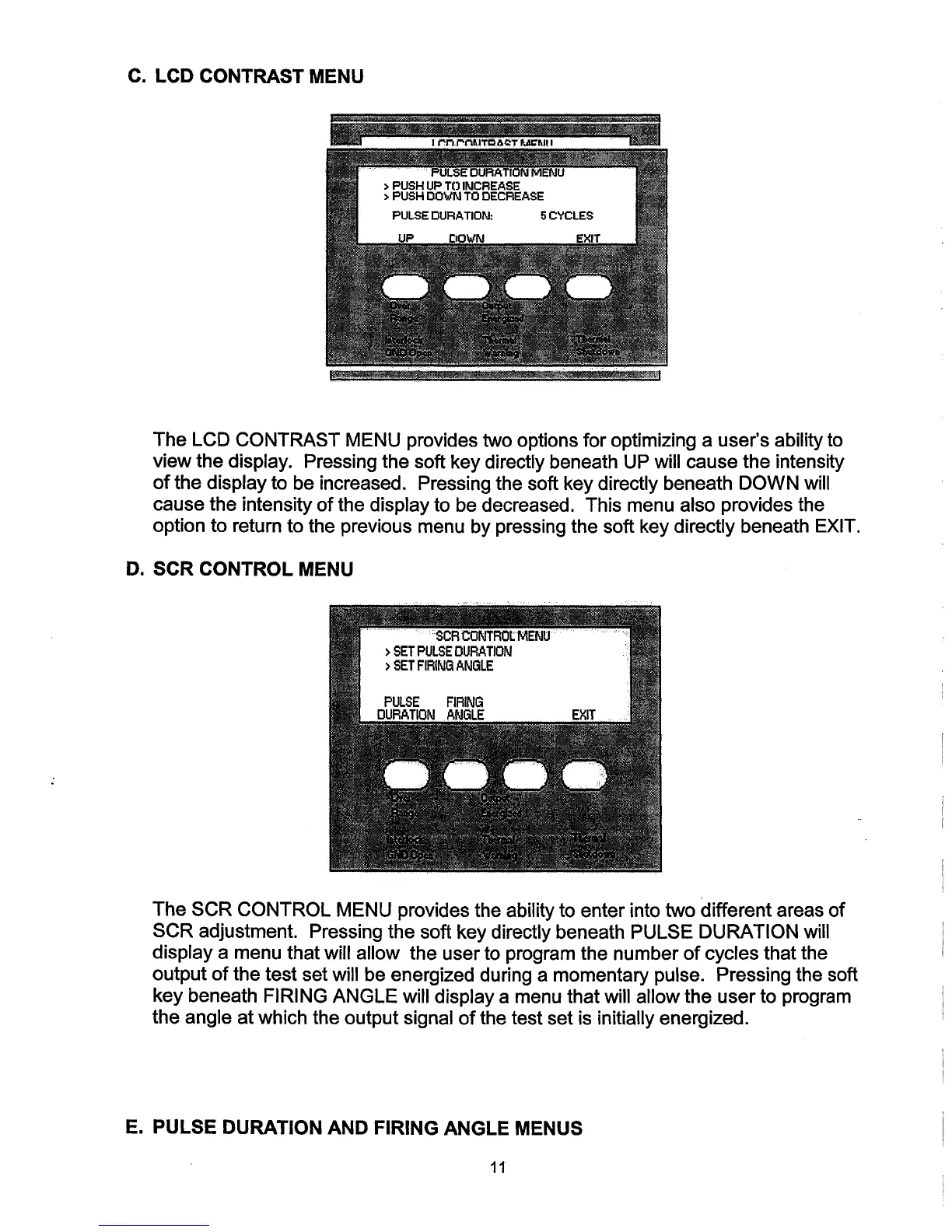

C. LCD CONTRAST MENU
The LCD
CONTRAST MENU provides two options for optimizing a user's ability to
view the display. Pressing the soft key directly beneath UP will cause the intensity
of
the display to be increased. Pressing the soft key directly beneath DOWN will
cause the intensity
of
the display to be decreased. This menu also provides the
option to return to the previous menu by pressing the soft key directly beneath
EXIT.
D.
SCR CONTROL MENU
The
SCR CONTROL MENU provides the ability to enter into two different areas
of
SCR adjustment. Pressing the soft key directly beneath PULSE DURATION will
display a menu that will
allow the user to program the number
of
cycles that the
output
of
the test set will be energized during a momentary pulse. Pressing the soft
key beneath
FIRING ANGLE will display a menu that will allow the user to program
the angle at which the output signal
of
the test set is initially energized.
E.
PULSE DURATION AND FIRING ANGLE MENUS
11
