13

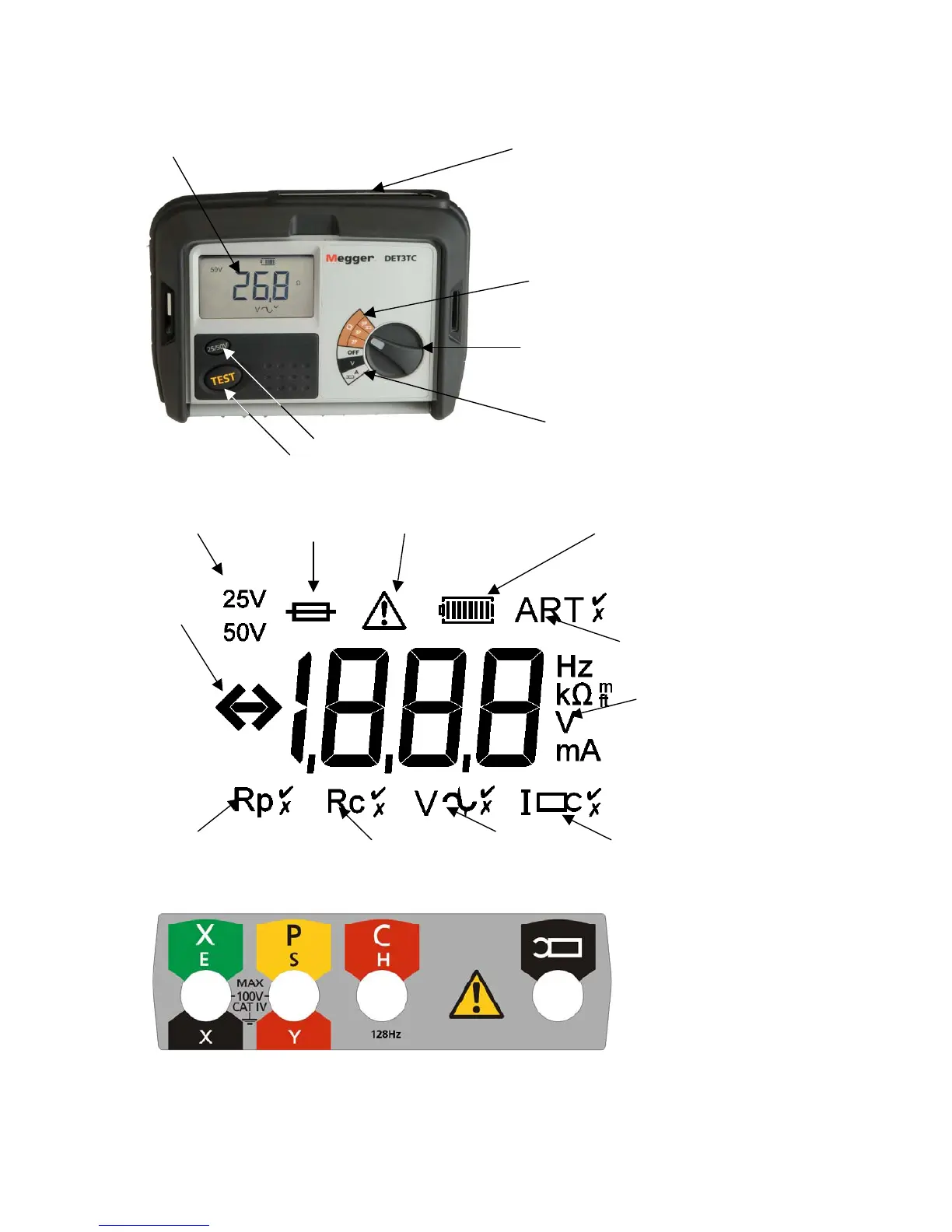

DET3TC
LCD display
Test button
Voltage and current
measurement settings
Test lead
connections (at rear)
Resistance
measurement
settings (2P and 3P
and clamp)
Selector switch
Test lead connections (at rear of instrument)
25 V/50 V output
voltage select button
Over/under
range
indicator
Warning – refer to
user manual
Ruptured fuse
indicator
Battery charge
indicator
Measuring range
Ground noise voltage
indicator (OK/Not OK)
Current probe
resistance (OK/Not
OK)
Potential probe
resistance indicator
(OK/Not OK)
Clamp
current/presence
indicator (OK/Not OK)
ART measurement
indicator
(Possible/Not
possible
Output voltage
indicator
