Two-terminal resistance measurement (DET3TA)
1. Ensure the rotary selector switch is in the OFF position.
2. Select the desired test voltage using the procedure in the section on General Operating
Instructions.
3. Connect the instrument as shown in Figure 15.

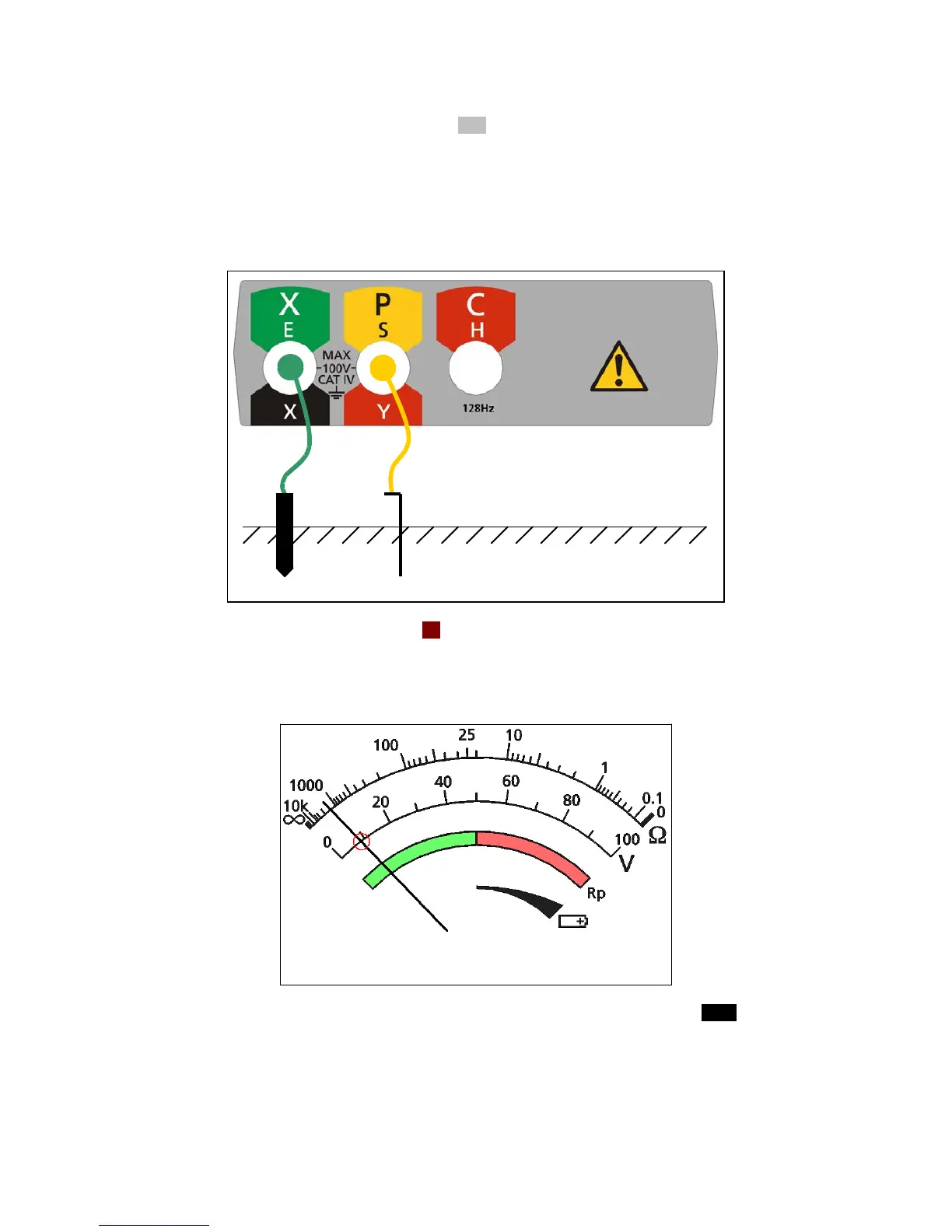

Figure 15: instrument connection for measuring two-terminal resistance
4. Set the rotary selector switch to the 2P position.
5. The ground noise voltage will be indicated on the scale plate as shown in Figure 16.
Figure 16: ground noise voltage indication
6. If the ground noise voltage is less than 40 V pk-pk (14 V rms), press and hold the TEST button.
[Testing will be inhibited if the ground noise voltage exceeds 40 V pk-pk.]
7. The Rc LED will flash to indicate that the instrument is carrying out pre-measurement checks.
