Two-terminal resistance measurement (DET3TC, DET3TD, DET4TD2,
DET4TR2, DET4TC2 and DET4TCR2)
1. Ensure the rotary selector switch is in the OFF position.
2. Connect the instrument as shown in Figure 13.

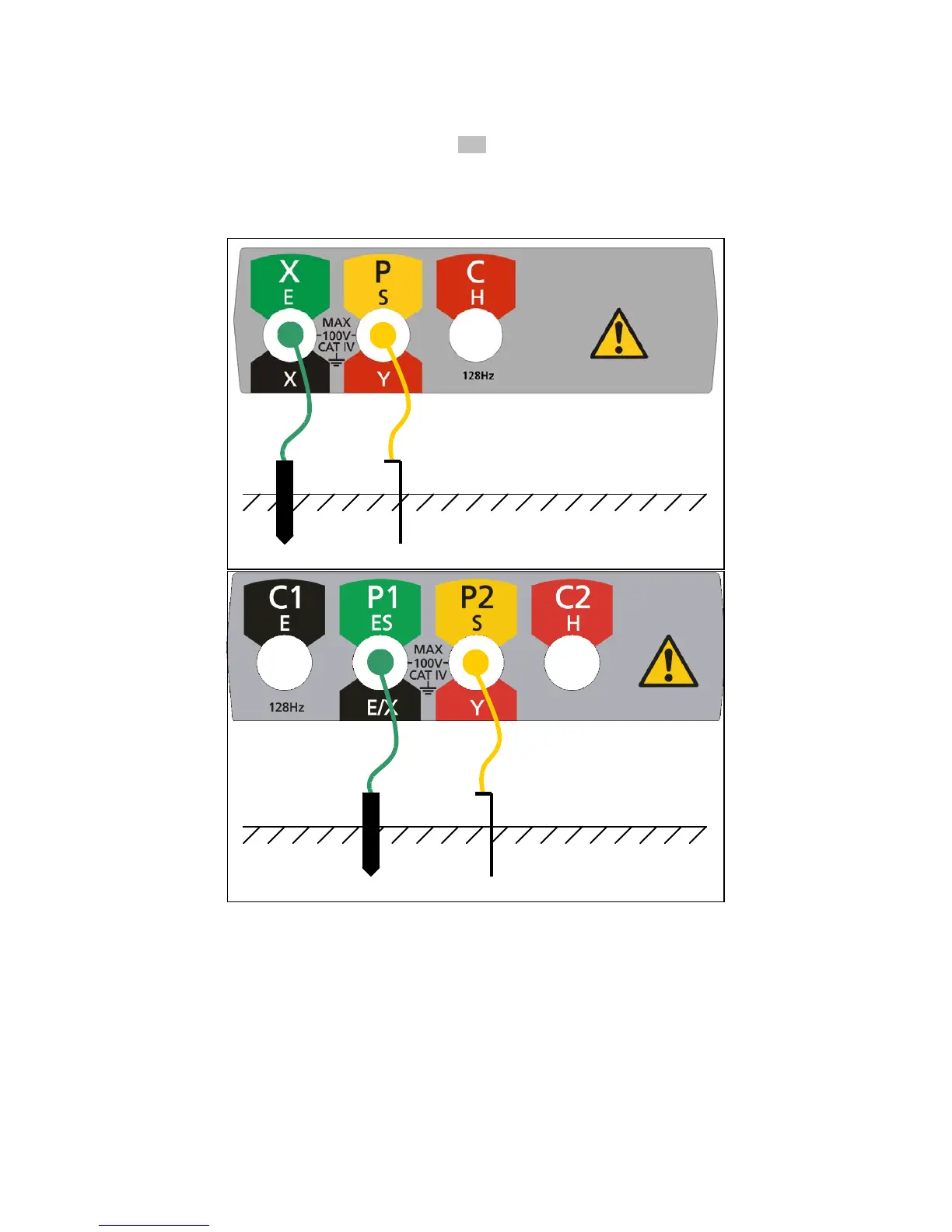

Figure 13: instrument connection for measuring two-terminal resistance
Metallic interconect
Electrode
under test
DET3TD
Metallic interconnect
Electrode
under test
DET4TD
DET4TD2
DET4TR2
