Installation category definitions
CAT IV Measurement category IV: Equipment connected between the origin of the low-voltage
mains supply outside the building and the consumer unit.
CAT III Measurement category III: Equipment connected between the consumer unit and the
electrical outlets.
CAT II Measurement category II: Equipment connected between the electrical outlets and the
user’s equipment.
Symbols used on the instrument
F
Caution: risk of electric shock
G
Caution: risk of danger – consult the user instructions
t
Equipment protected throughout by Double Insulation (Class II)
c
Equipment complies with relevant EU Directives
Do not dispose of in the normal waste stream
g
Earth (ground)
3. General Description

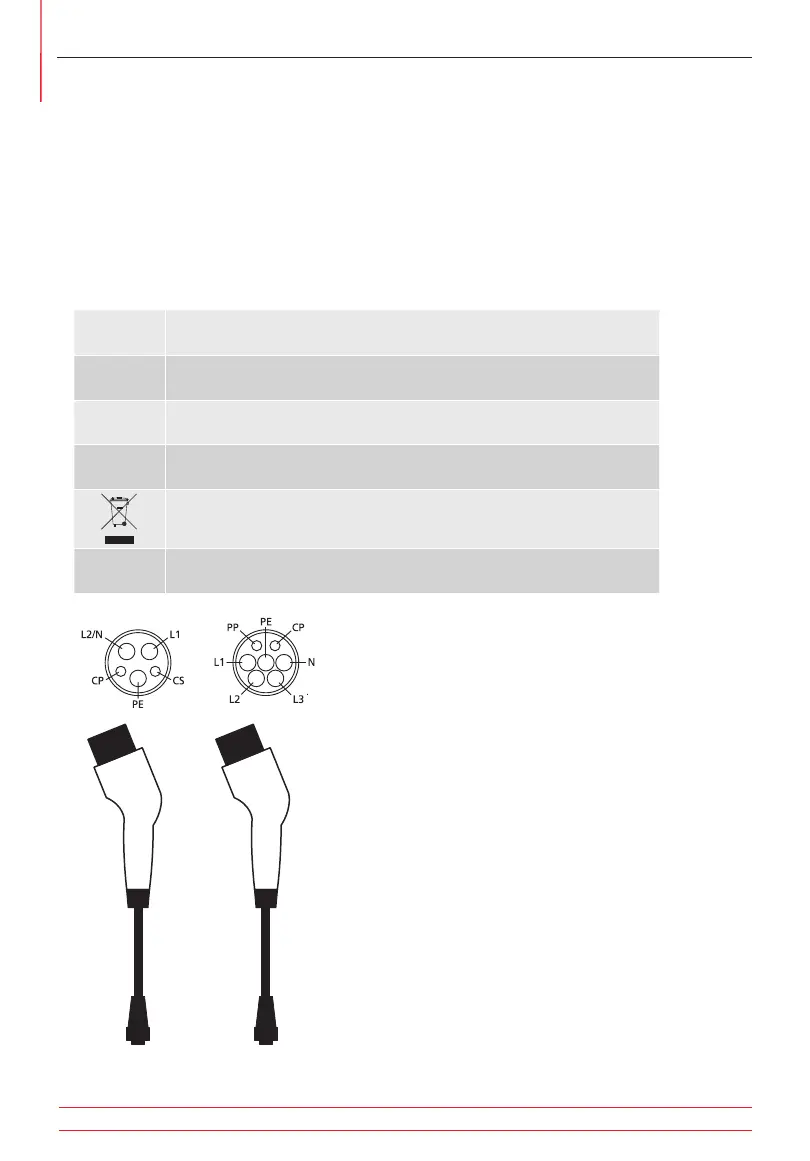

Type 1 Plug Type 2 Plug
Case contents
 1 x EVCA210 Electric Vehicle Charge-point Adaptor
 1 x 32 A Type 2 EV charging plug
 1 x 32 A Type 1 EV charging plug (EVCA210-UK Only)
 Zip-up carry case
 Quick start guide
The Electric Vehicle Charge-point Adaptor, EVCA210, is a
compact and portable unit, designed to allow the electrical
contractor to test the function and safety of AC Mode
3 Electric Vehicle charge points and has been specifically
designed to allow testing of charging points in accordance
with the IEC/EN 61851-1 and IEC/HD 60364-7-722 standards,
in combination with suitable test instruments.
EV Type 1
Charging Plug
(EVCA210-UK only)
EV Type 2
Charging Plug
www.megger.com
EVCA210
6
General Description
