(G.2) Changing Upper Fastener Kit
It is very important that you firmly hold the mirror and bracket system in place
throughout this process. The fasteners keep the mirror from falling off the
vehicle. Damage may occur to the door and mirror if the mirror is not supported.

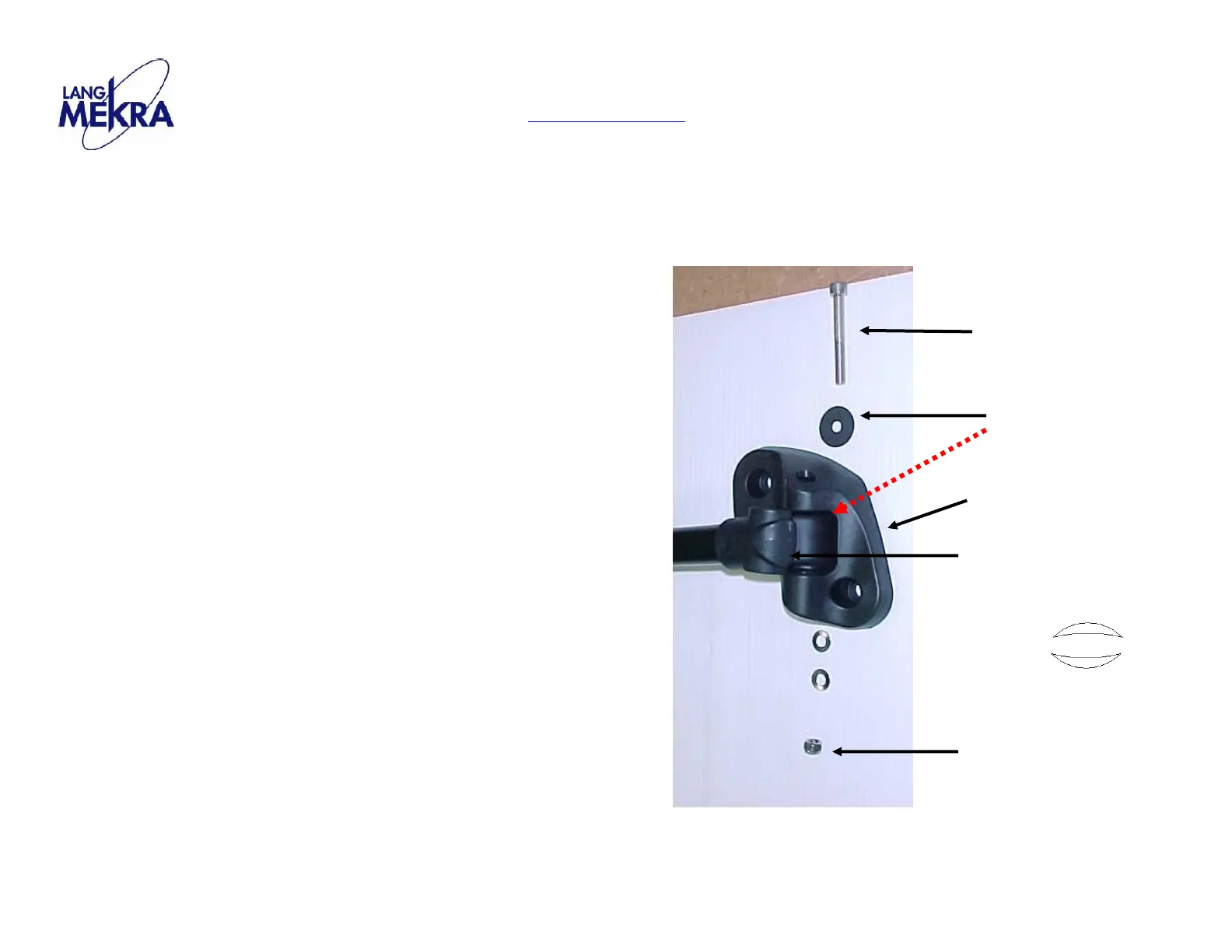

1) Remove entire fastener kit. Hold mirror in place to prevent it from falling.
2) Once upper holder is attached to truck, put tube connector and fiber washer
in place and insert bolt. Once the bolt is in place, the mirror should not fall
away from the truck.
3) Line the Belleville washers up as shown and slide them onto the bottom of
the screw. Attach the nut and tighten to 14-16 N-m.
Fiber Washer (dashed arrow
shows location when assembled)
Belleville Washers
oriented as shown:
