To Adjust Mirror Head

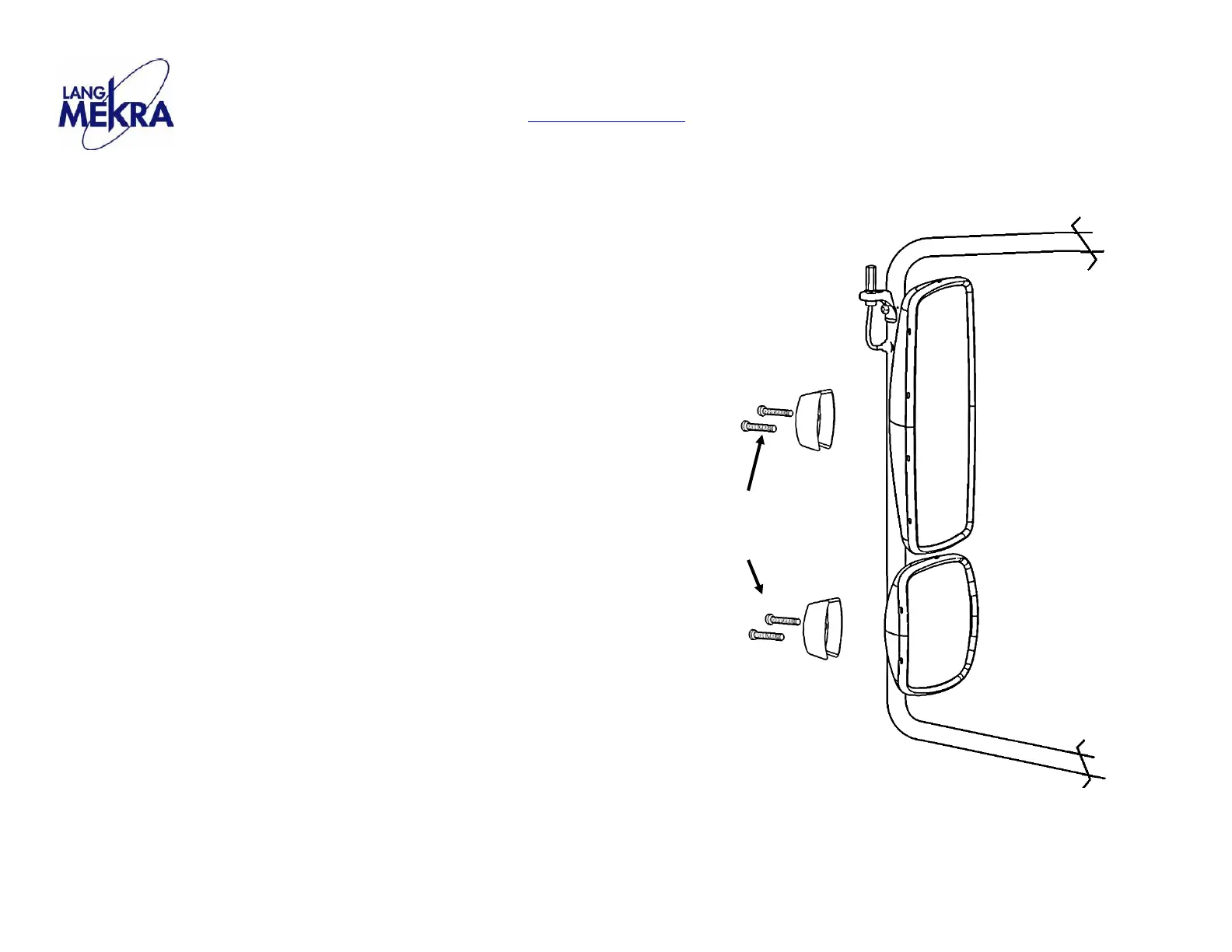

1) Slightly loosen the two clamp bolts using a T-30 driver. To prevent the
mirror from sliding down, hold it in place from the bottom.
2) Adjust mirror head to desired position. Tighten clamp screws to 9-11 N-m.
MAKE SURE THE OPTIMUM VIEWING ANGLE
IS ASSURED FOR THE DRIVER OF THE VEHICLE
AT ALL TIMES!
To Remove Mirror Head
1) If the mirror is heated and/or remote, remove the mirror plate (see G.5.1) and
disconnect the control cables before removing the head.
2) Remove the two clamp bolts using a T-30 driver. To prevent the mirror from
sliding down, hold it in place from the bottom.
3) Gently remove the mirror head from the bracket, making sure not to damage the
wires or connectors.
To Attach Mirror Head
1) Place mirror head on bracket. Make sure that the wires coming from the bracket
go into the mirror head. Tighten the two clamp bolts to 9-11 N-m (5-8 Ft-lbs)
using a T-30 driver. Ensure the proper position is set for the driver.
2) Attach motor and heater cables (if applicable) and replace the glass according to
G.5.2.
