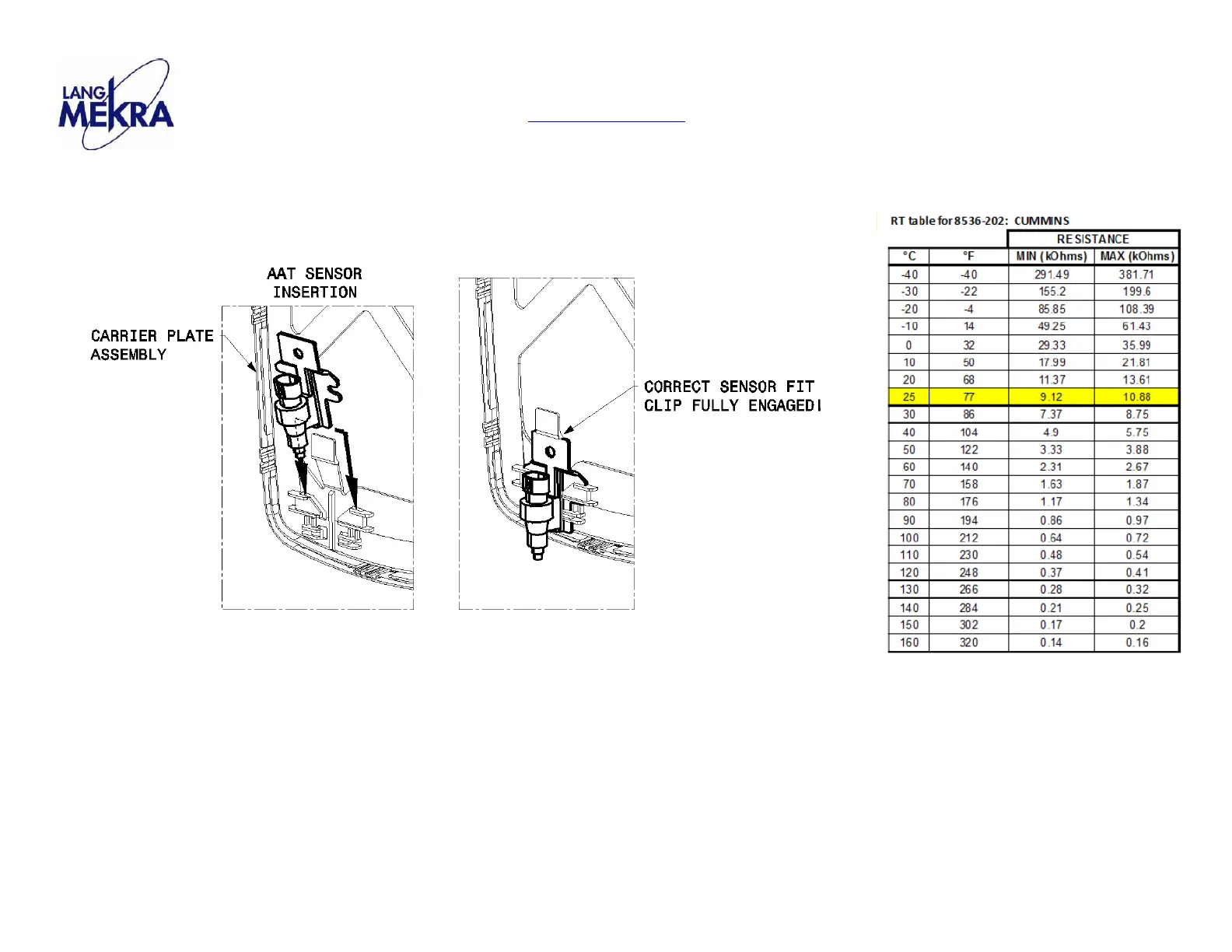

(G.5.3) Glass Carrier Plate with AAT Instructions
Using a multi-meter, troubleshoot the AAT wire harness first for continuity. If the AAT wire harness has proper continuity, then check the AAT sensor referencing the ambient
chart above. If the AAT sensor is not working correctly to the chart then replace it by using the following instructions.
To remove the AAT sensor, depress the black locking tab and push the sensor in towards the center of the carrier plate assembly.
Replace the sensor by using the sensor to depress the black locking tab and push out ward until the black locking tab is fully engaged.
