ASSEMBLY INSTRUCTIONS

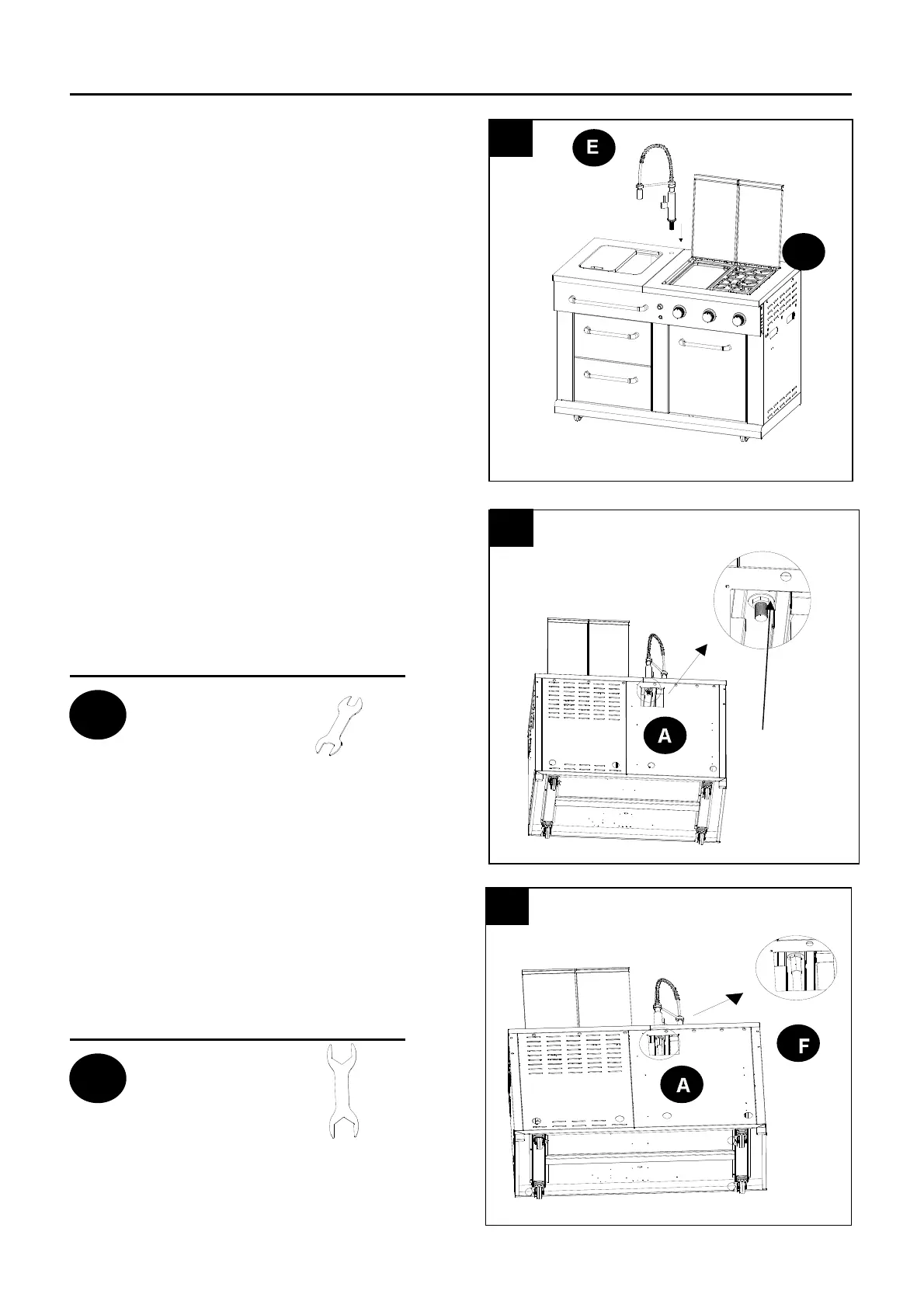

4. Insert the faucet (E) into the round
hole on the granite surface of the main
body (A).
5. Screw the hex nut onto the faucet (E)
through the access panel opening at the
back of the main body (A). Tighten
securely with the 23 x 24 mm wrench
(DD).
Hardware Used
23 x 24 mm Wrench x 1
6. Attach the water inlet hose (F) to the
faucet (E) as shown. Tighten securely
with the 17 x 19 mm wrench (EE).
Hardware Used
17 x 19 mm Wrench x 1
DD
Hex Nut
EE
4
6
5
To Next Page
