Memmert BE 600 - Putting into Operation

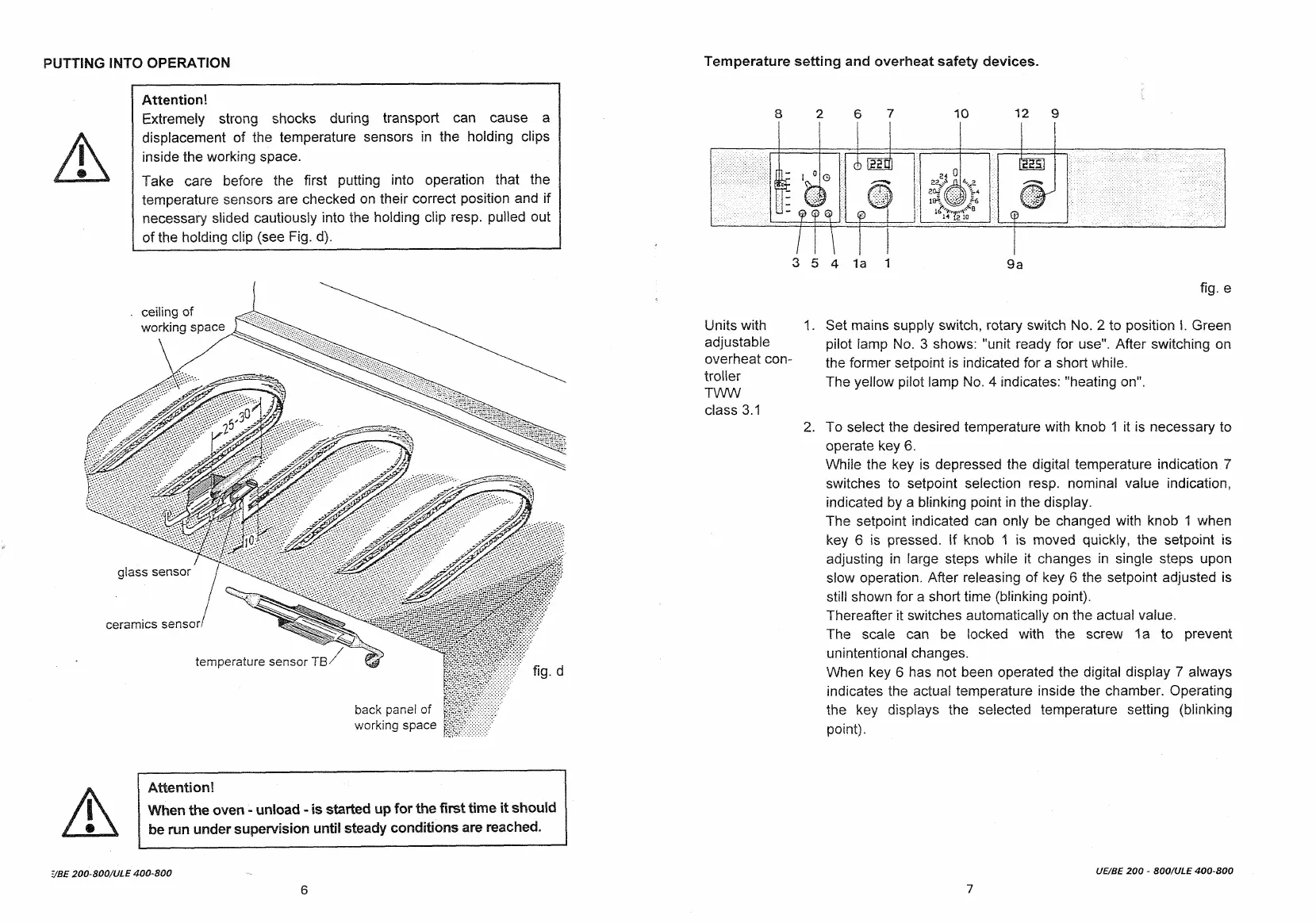

PUTTING INTO OPERATION
Attention!
Extremely strong shocks during transport can cause a
displacement of the temperature sensors in the holding clips
inside the working space.
Take care before the first putting into operation that the
temperature sensors are checked on their correct position and if
necessary slided cautiously into the holding clip resp. pulled out
of the holding clip (see Fig. d).
. ceiling of
working space
glass sensor
ceramics sensor
temperature sensor 18/
back panel of
working space
Attention!
When the oven - unload - is started up for the first time it should
be run under supervision until steady conditions are reached.
BE 200-800/ULE 400-800
Temperature setting and overheat safety devices.
6 Y 10 12 9
Units with
adjustable
overheat con-
trolier
TWW
class 3.1
1.
fig. e
Set mains supply switch, rotary switch No. 2 to position |. Green
pilot lamp No. 3 shows: "unit ready for use". After switching on
the former setpoint is indicated for a short while.
The yellow pilot lamp No. 4 indicates: "heating on".
To select the desired temperature with knob 1 it is necessary to
operate key 6.
While the key is depressed the digital temperature indication 7
switches to setpoint selection resp. nominal value indication,
indicated by a blinking point in the display.
The setpoint indicated can only be changed with knob 1 when
key 6 is pressed. If knob 1 is moved quickly, the setpoint is
adjusting in large steps while it changes in single steps upon
slow operation. After releasing of key 6 the setpoint adjusted is
still shown for a short time (blinking point).
Thereafter it switches automatically on the actual value.
The scale can be locked with the screw fa to prevent
unintentional changes.
When key 6 has not been operated the digital display 7 always
indicates the actual temperature inside the chamber. Operating
the key displays the selected temperature setting (blinking
point).
UE/BE 200 - 800/ULE 400-800
