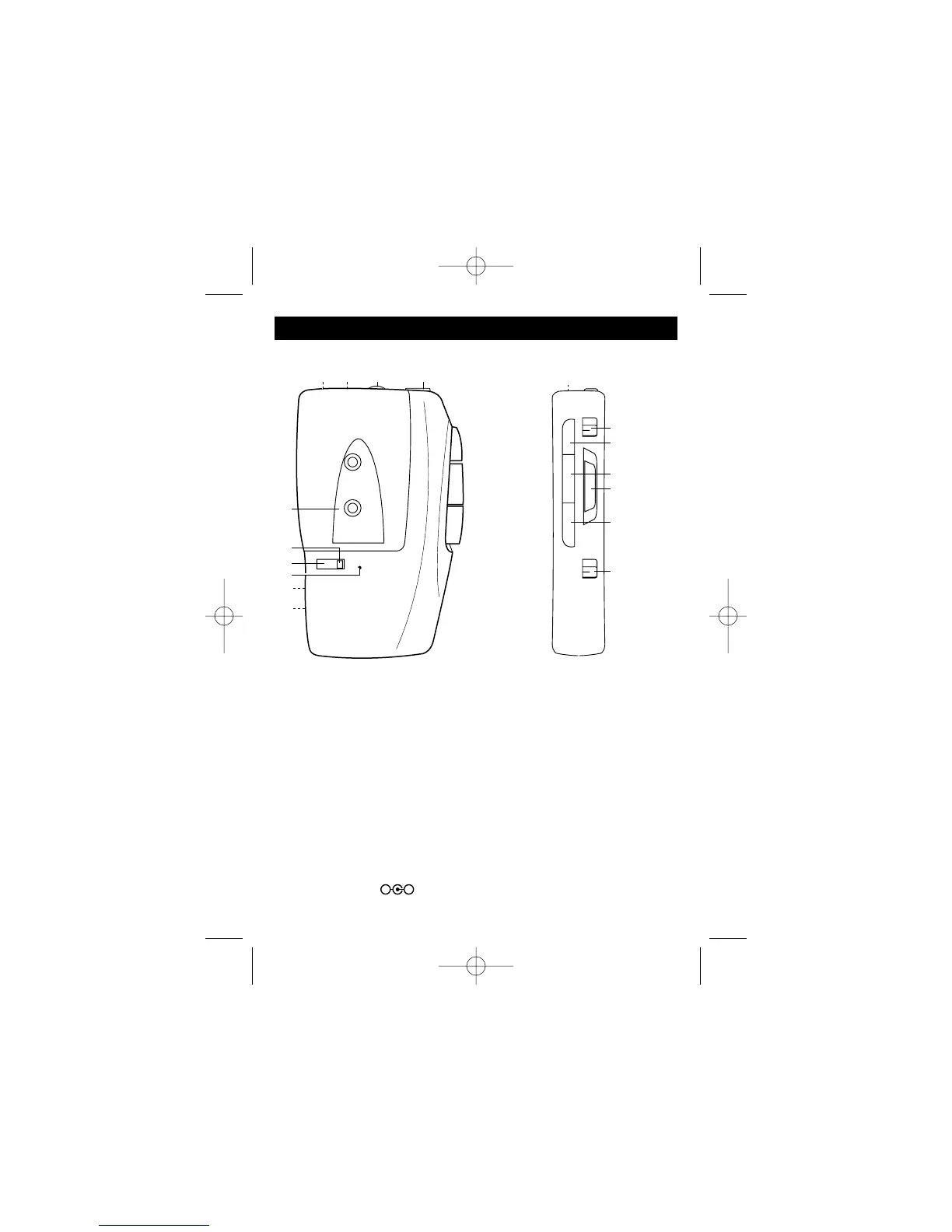

LOCATION OF CONTROLS
1. MIC (Microphone) Jack
2. EAR (Earphone) Jack
3. VOLUME/VAC Mic
Sensitivity Control
4. VAS (Voice Activation)
ON/OFF Switch
5. Microcassette
Compartment
6. Tape Counter Reset
Button
7. Tape Counter
8. REC/BATT Indicator
9. DC 3V Jack
10. Battery Compartment
(Rear of unit)
11. Built-in Microphone (Top
of unit)
12. PAUSE ON/OFF Switch
13. REC (Record) Button
14. PLAY Button
15. REW (REV)/F.F Switch
Button
16. Stop/Eject Button
17. TAPE SPEED (2.4/1.2)
Switch
+
-
FRONT REAR
