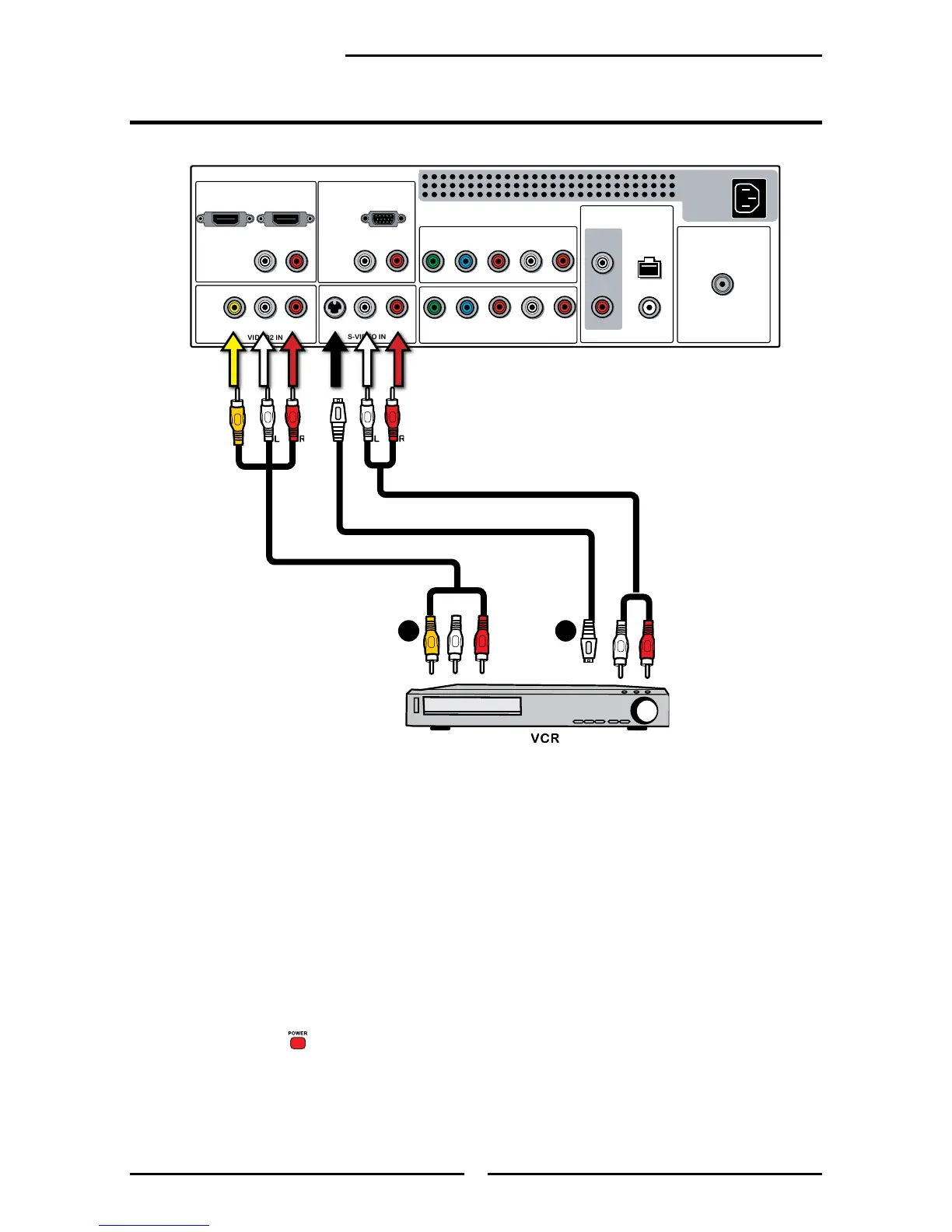

 METHOD A:
Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the VCR’s audio output jacks to the LCD TV’s audio
inputs. Use a S-Video cable to connect the VCR’s s-video output jack to the LCD TV’s
S-VIDEO IN input jack.
 Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
 Press the button on the remote to turn on the LCD TV.
 To watch a videotape, press the INPUT button on the remote to select
VIDEO2( METHOD A), or VIDEO3 (METHOD B).
Connecting a VCR
A B
HDMI 2 INHDMI 1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
Air/Cable
HDTV/TV
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr AUDIO
VHF/UHF IN
Rear of TV
AUDIO Cable
S-VIDEO Cable
AV Cable
