Memorex MVDT2402 Service Manual

DISASSEMBLY INSTRUCTIONS
B1-1
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
2.
3.
Remove the 6 screws (1).
Remove the 2 screws (2).
Remove the Back Cabinet in the direction of arrow.
1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
1.
2.
3.
Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
Disconnect the following connectors:
(CP603B, CP803 and CP805).
Remove the CRT PCB in the direction of arrow.
1-3: TV/DVD/VCR BLOCK (Refer to Fig. 1-3)
1.
2.
3.
Remove the 2 screws (1).
Disconnect the following connectors:
(CP303, CP404 and CP1704).
Remove the TV/DVD/VCR Block in the direction of
arrow.
1-4: VCR DECK (Refer to Fig. 1-4)
NOTE
Do not remove the cable at the FE Head section. The FE
Head may be damaged if you remove the cable by force.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Remove the 2 screws (1).
Remove the VCR Top.
Move the Cassette Holder Ass'y to the back side.
Remove the 3 screws (2).
Remove the 2 screws (3).
Remove the Deck Shield Cover.
Remove the screw (4).
Remove the FE Head.
Disconnect the following connectors:
(CP101, CP4501, CP4502 and CP4503).
Remove the VCR Deck in the direction of arrow.

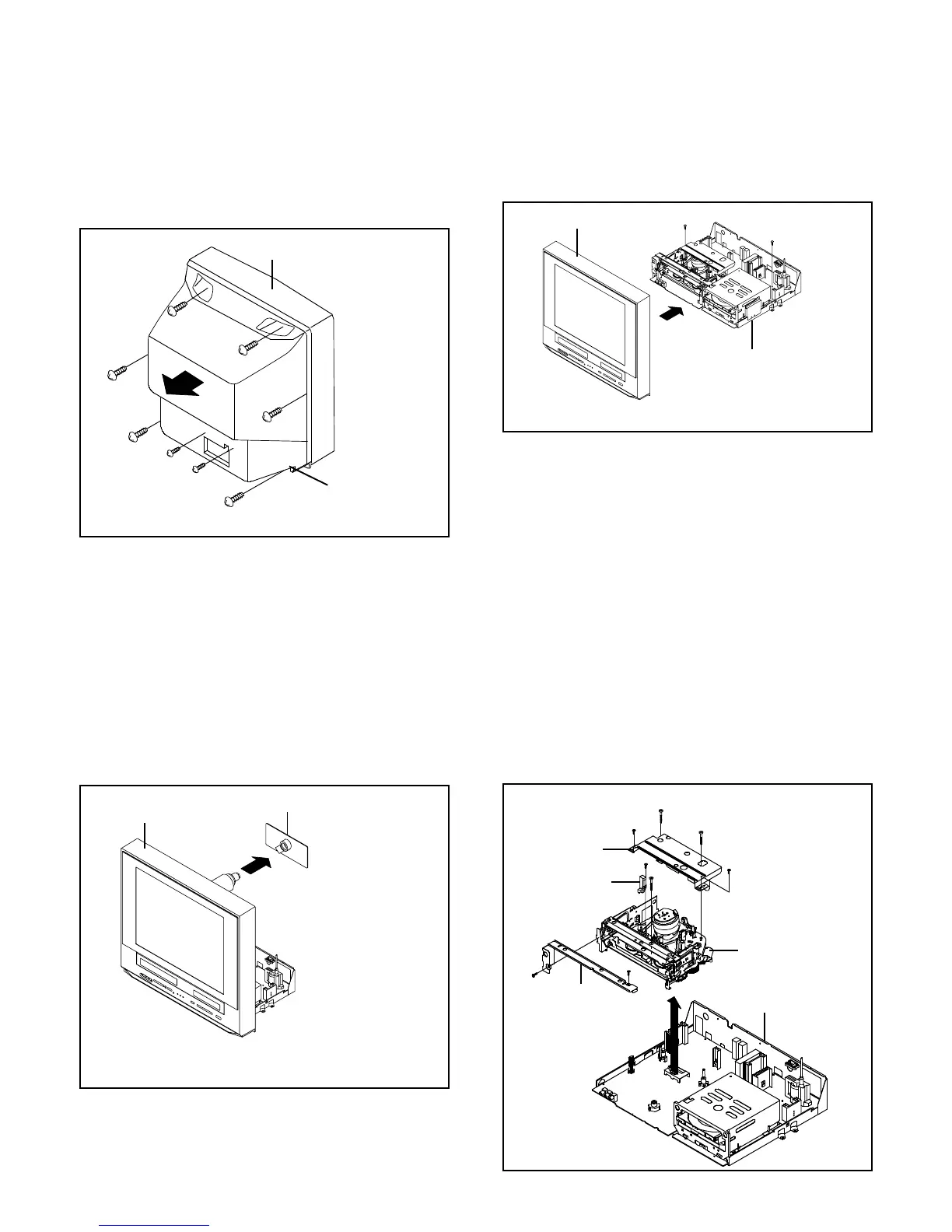

Fig. 1-1
Front Cabinet
(1)
(1)
(1)
(1)
Back Cabinet
(1)
(1)
(2)
(2)
CRT PCB
Front Cabinet
Fig. 1-2
Fig. 1-3
TV/DVD/VCR Block
(1)
(1)
Front Cabinet
Fig. 1-4
(1)
(1)
VCR Top
(2)
(2)
(2)
(3)
(3)
Deck Shield Cover
(4)
FE Head
VCR Deck
Bottom Plate
