A1-3
1.
2.
3.
4.
5.
Remove the TV/DVD/VCR block from the main unit and the Fig. 1 below can be seen.
(Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)
Remove one screw of the Loading Motor from the insert hole for screw driver and remove the Loading
Motor.
Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.
(Refer to Fig. 2)
Rotate the Clutch Ass'y either of the directions to wind the Video Tape in the Cassette Case.
Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to
scratch on the tape.

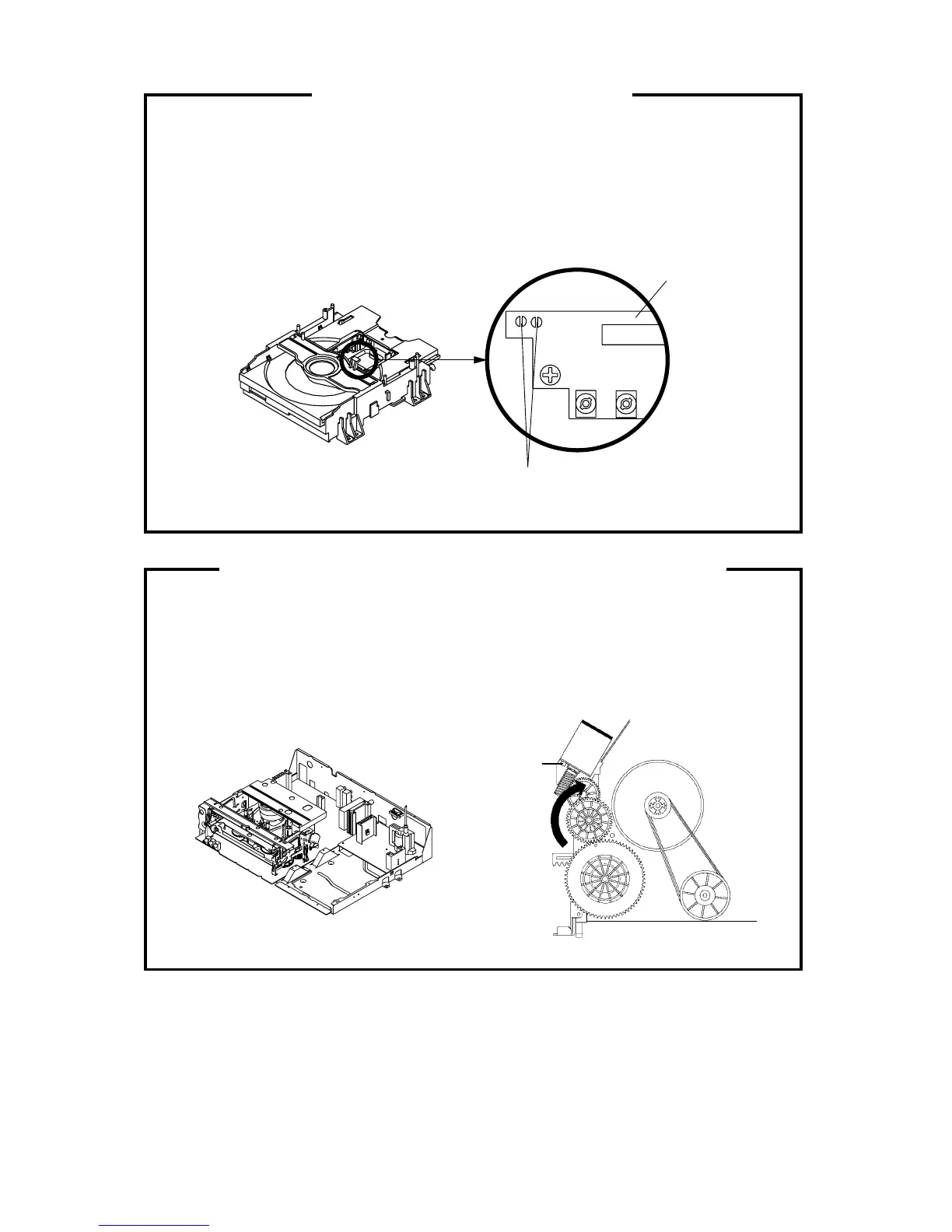

TAPE REMOVAL METHOD AT NO POWER SUPPLY
Fig. 1
Pinch Roller Cam
Main Cam
Clutch Ass'y
Main Chassis (Front Side)
Loading Motor
Screw
Capstan DD Unit
Fig. 2
Before removing Pick Up PCB and DVD PCB connector, make the short circuit on the position as
shown Fig. 1 using a soldering. If you remove the DVD Deck with no soldering, the Laser may be
damaged.
WHEN REPLACING DVD DECK
[ When the removal of the DVD Deck ]
[ When the installation of the DVD Deck ]
Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD
PCB connector.
Fig. 1
Make the sort circuit
using a soldering.
Pick Up PCB
To Next Page
