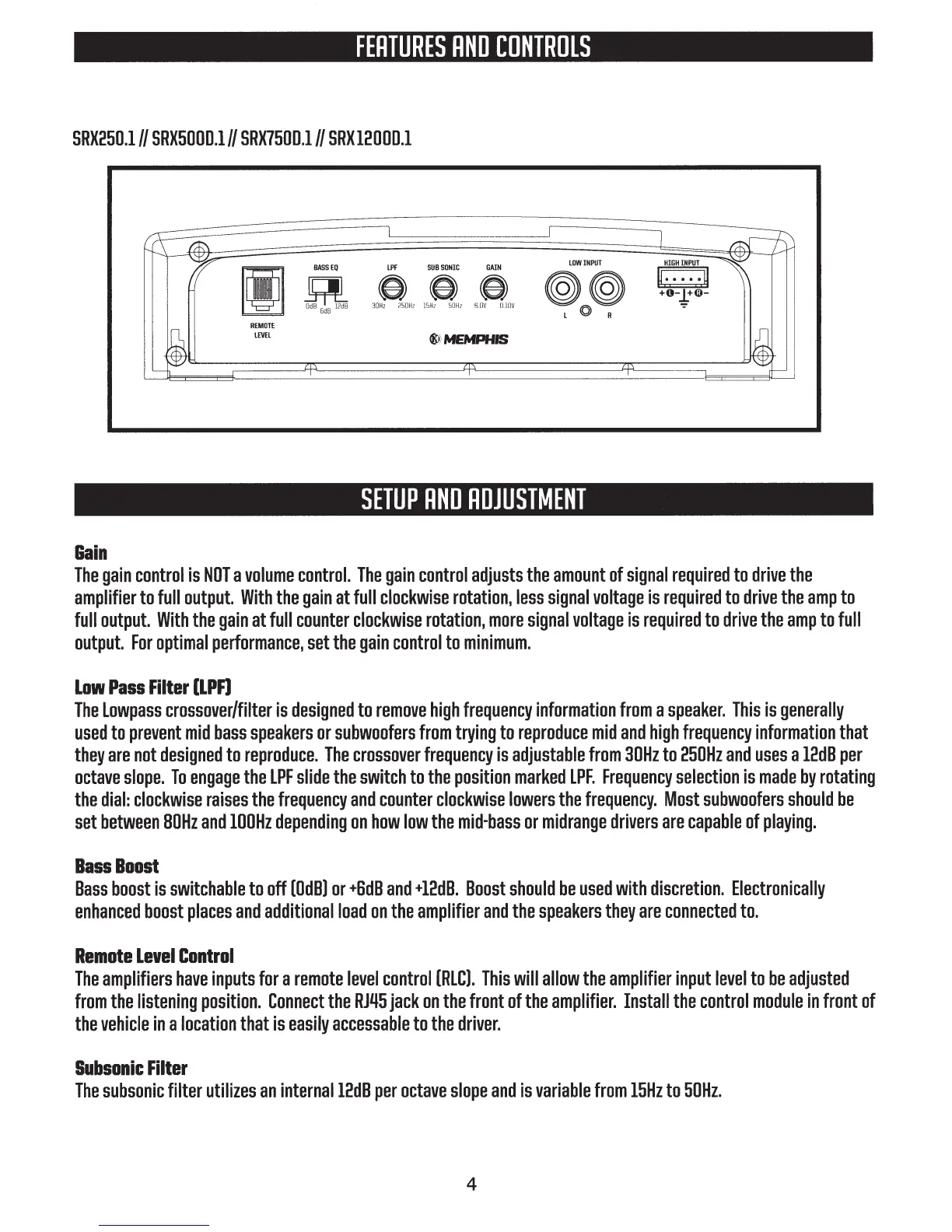

FEATURES
AND
CONTROLS
SRX250.1//
SRX500D.l//
SRX750D.l//
SRX1200D.l
BASS
EQ
LPF
SUB
SONIC
GAIN
LOW
INPUT
eee
30Hz
250Hz
15Hz
50Hz
6.0V
O.lOV
~
OdBBdB
l2dB
®)MEMPHIS
SETUP
AND
ADJUSTMENT
Gain
The
gain
control
is
NOT
a
volume
control.
The
gain
control
adjusts
the
amount
of
signal
required
to
drive
the
amplifier
to
full
output.
With
the
gain
at
full
clockwise
rotation,
less
signal
voltage
is
required
to
drive
the
amp
to
full
output.
With
the
gain
at
full
counter
clockwise
rotation,
more
signal
voltage
is
required
to
drive
the
amp
to
full
output.
For
optimal
performance,
set
the
gain
control
to
minimum.
Low
Pass
Filter
[LPFJ
The
lowpass
crossover/filter
is
designed
to
remove
high
frequency
information
from
a
speaker.
This
is
generally
used
to
prevent
mid
bass
speakers
or
subwoofers
from
trying
to
reproduce
mid
and
high
frequency
information
that
they
are
not
designed
to
reproduce.
The
crossover
frequency
is
adjustable
from
30Hz
to
250Hz
and
uses
a
12dB
per
octave
slope.
To
engage
the
LPF
slide
the
switch
to
the
position
marked
LPF.
Frequency
selection
is
made
by
rotating
the
dial:
clockwise
raises
the
frequency
and
counter
clockwise
lowers
the
frequency.
Most
subwoofers
should
be
set
between
80Hz
and
100Hz
depending
on
how
low
the
mid-bass
or
midrange
drivers
are
capable
of
playing.
Bass
Boost
Bass
boost
is
switchable
to
off
[OdB]
or
+6dB
and
+12dB.
Boost
should
be
used
with
discretion.
Electronically
enhanced
boost
places
and
additional
load
on
the
amplifier
and
the
speakers
they
are
connected
to.
Remote
Level
Control
The
amplifiers
have
inputs
for
a
remote
level
control
[RLC].
This
will
allow
the
amplifier
input
level
to
be
adjusted
from
the
listening
position.
Connect
the
RJLI5
jack
on
the
front
of
the
amplifier.
Install
the
control
module
in
front
of
the
vehicle
in
a
location
that
is
easily
accessable
to
the
driver.
Subsonic
Filter
The
subsonic
filter
utilizes
an
internal12dB
per
octave
slope
and
is
variable
from
15Hz
to
50Hz.
