Men'sHealth Active+ 455 / 2248 - Step 4: Upright Supports

:
Two person assembly recommended
Assembly Instructions

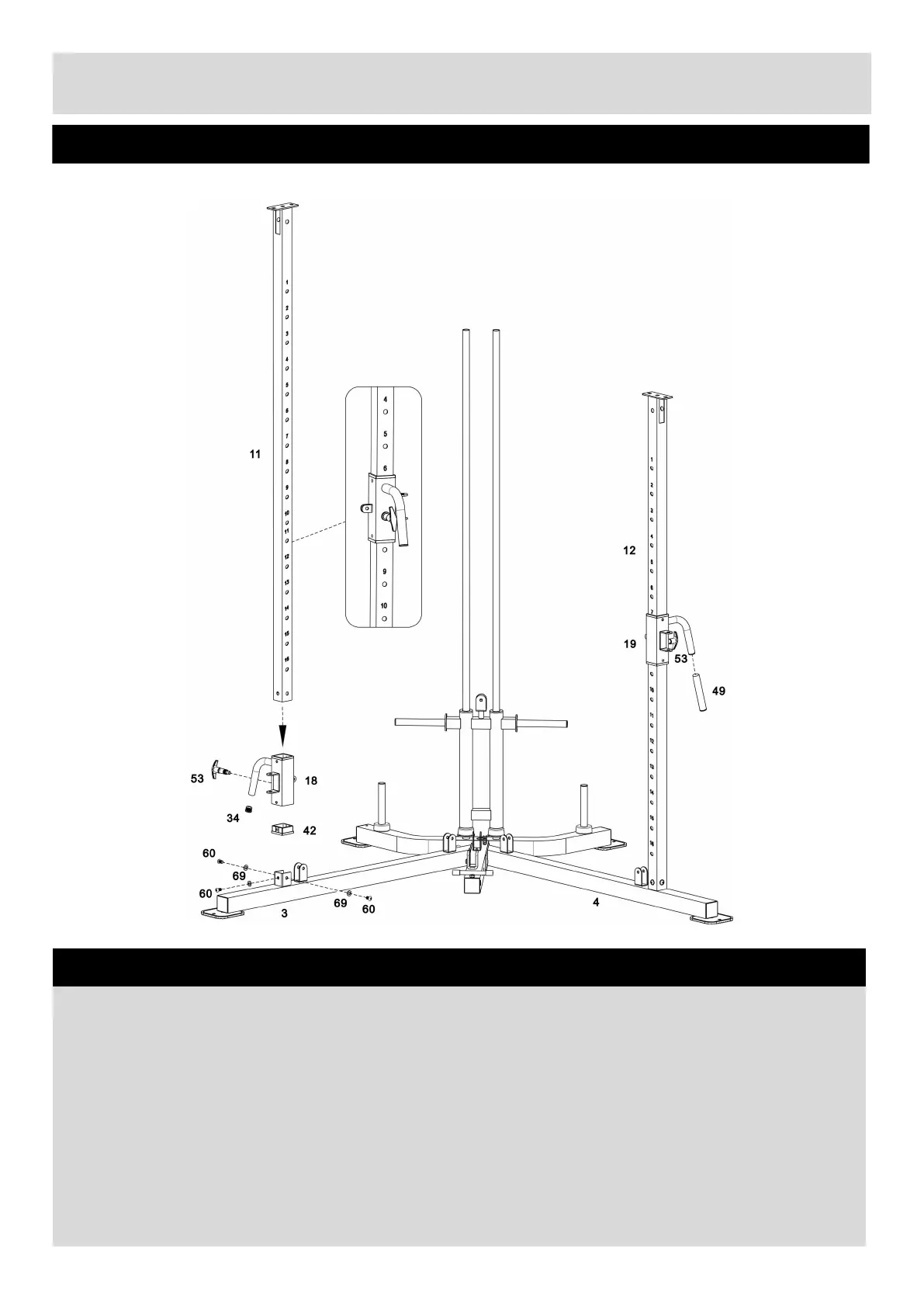

a. Put the Right Upright Support (11) through the Right Sliding Adjustment Frame (18), and secure with
the Pin (53).
b. Fix the Right Upright Support (11) to the Right Slant Base Frame (3) using 3 × M10 ×16mm Allen Bolts
(60), 3 x Ø10mm Washers (69).
c. Put the Left Upright Support (12) through the Left Sliding Adjustment Frame (19), and secure with the
Pin (53).
d. Fix the Left Upright Support (12) to the Left Slant Base Frame (4) using 3 × M10 ×16mm Allen Bolts
(60), 3 x Ø10mm Washers (69).
Notes: parts (34), (42), (49) are pre-assembled.
Step 4
12
