Men'sHealth Active+ 455 / 2248 - Step 5: Frame and Support Connections

:
Two person assembly recommended

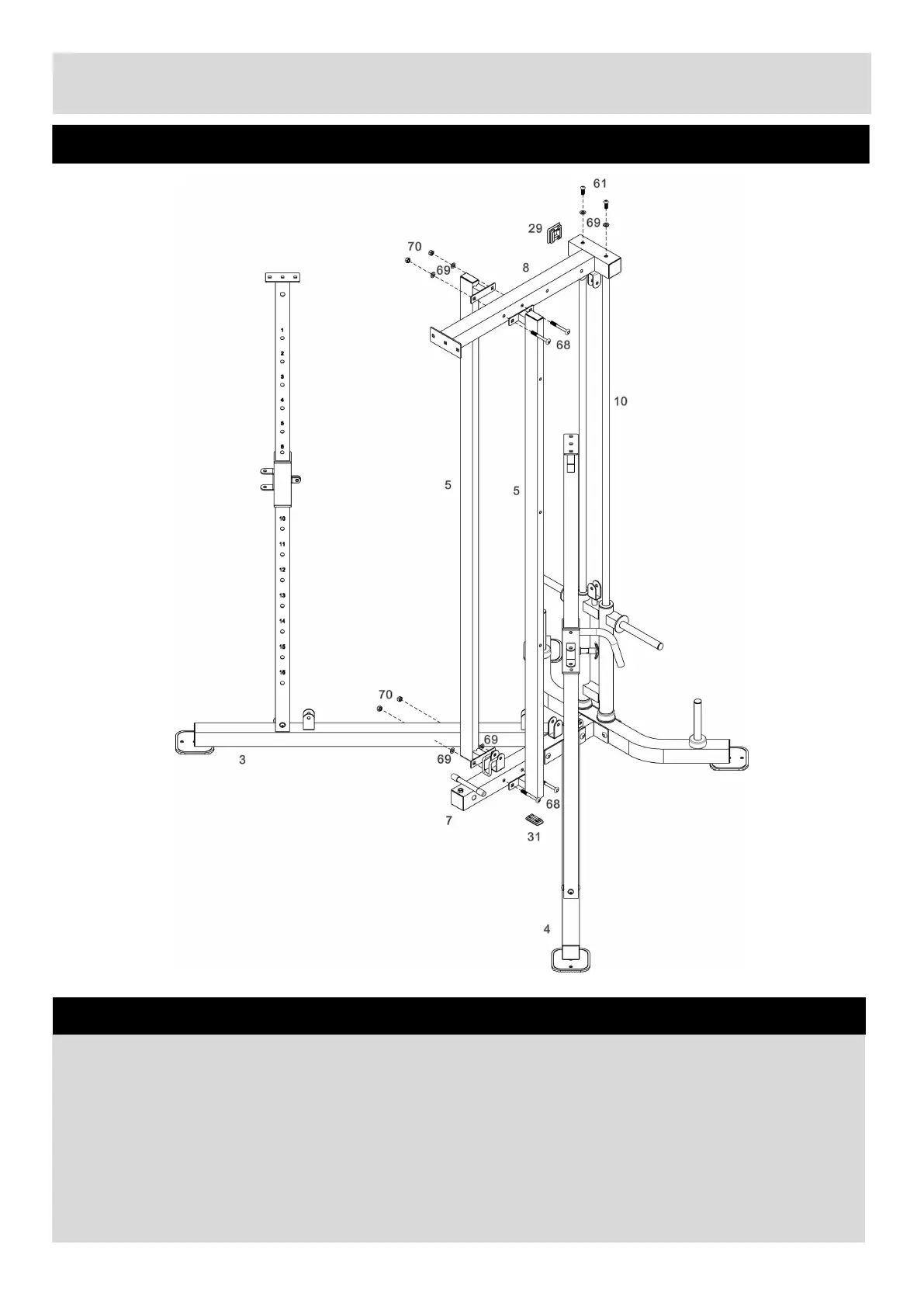

Assembly Instructions
a. Fix the Weight Stack Cover Support (5) to the Main Base Frame (7) using 2 × M10×80mm Carriage
Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
b. Attach the Upper Frame (8) to the Guide Rods (10) using 2 × M10×25mm Allen Bolts (61) and 2 ×
Ø10mm Washers (69).
c. Fix the Weight Stack Cover Support (5) to the Upper Frame (8) using 2 × M10×80mm Carriage Bolts
(68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
Notes: parts (29), (31) are pre-assembled.
Step 5
