Men'sHealth Active+ 455 / 2248 - Step 7: Upper Bar Installation

:
Two person assembly recommended
Assembly Instructions

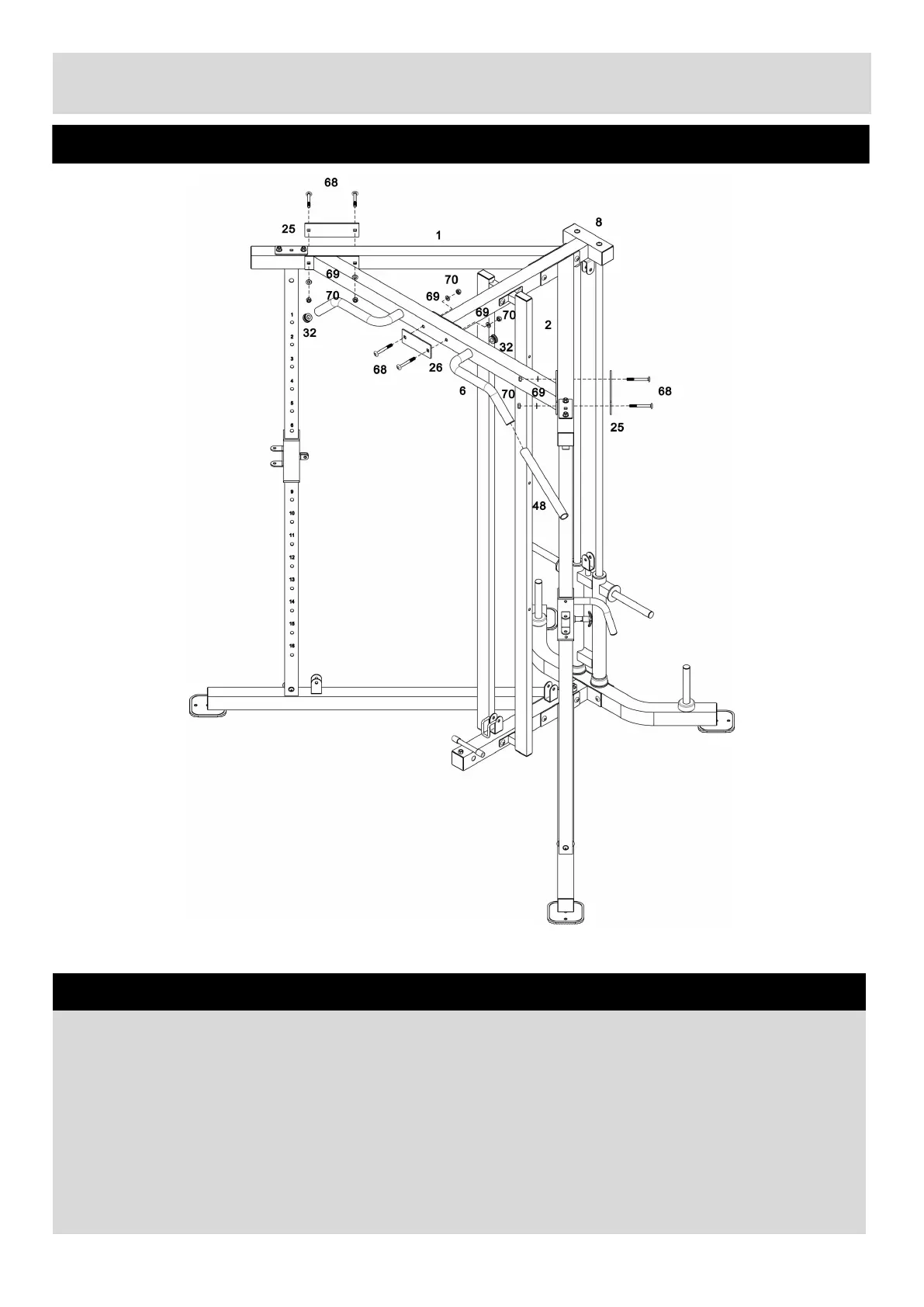

a. Attach the Upper Bar (6) to the Upper Frame (8) using 2 × M10×80mm Carriage Bolts (68), 2 ×
Ø10mm Washers (69), 2 × M10 Aircraft Nuts (70) and 1 x 150×55 Bracket (26). Do not tighten the bolts
at this step.
b. Attach the Upper Bar (6) to the Left & Right Slant Upper Frame (1, 2) using 4 × M10×80mm Carriage
Bolts (68), 4 × Ø10mm Washers (69), 4 × M10 Aircraft Nuts (70) and 2 × 200×55 Brackets (25).
Notes: parts (32) and (48) are pre-assembled. Tighten all the bolts fitted at step 6 and step 7.
Step 7
15
