Men'sHealth Active+ 455 / 2248 - Step 8: Pulley Bracket and Foot Plate

:
Two person assembly recommended
Assembly Instructions

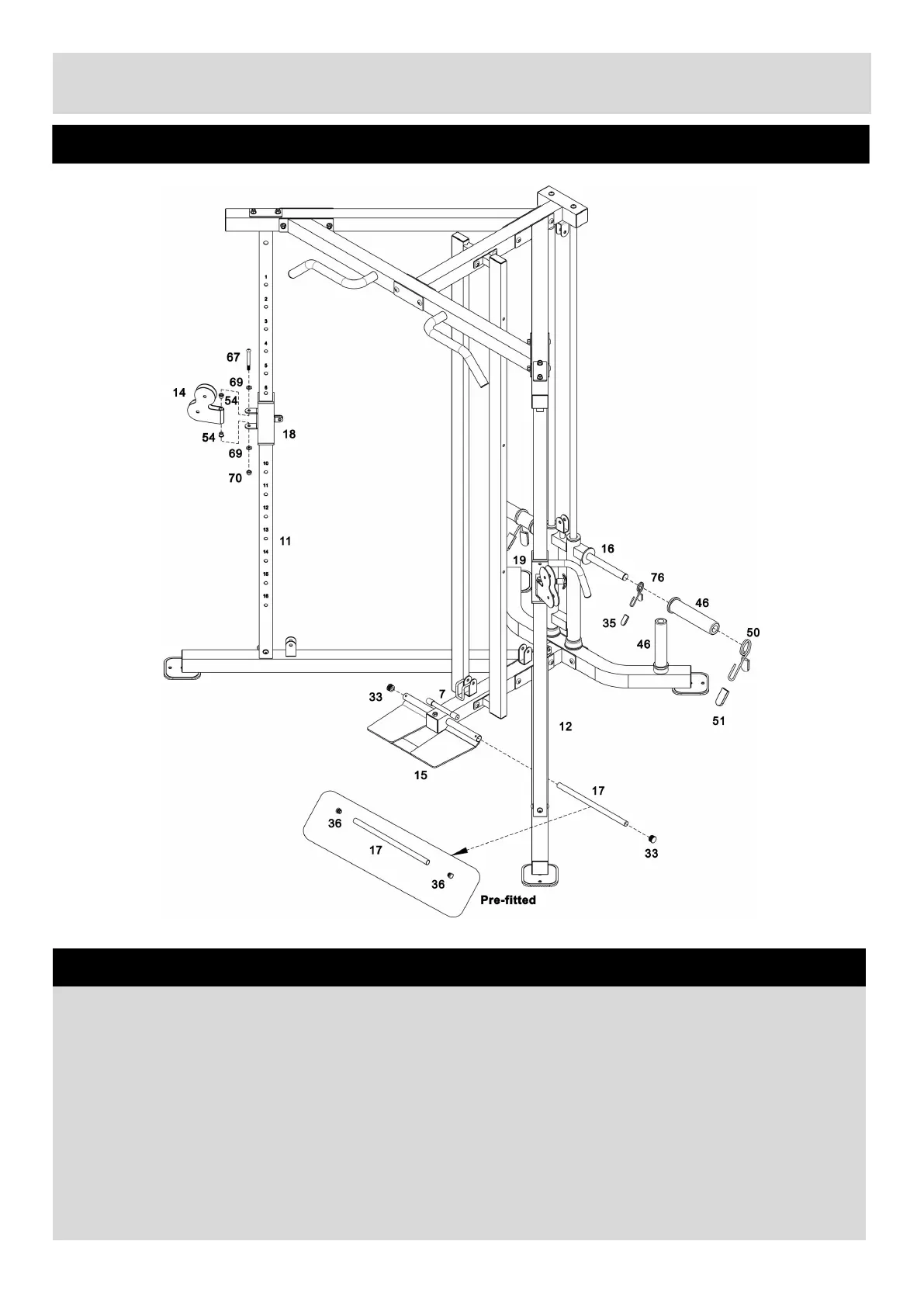

a. Fix the Swivel Pulley Bracket (14) to the Right Sliding Adjustment Frame (18) using 1 x M10 × 85mm
Allen Bolts (67), 2 × Ø10mm Washers (69), 2 × Bushes (54) and 1 x M10 Aircraft Nut (70).
b. Fix the Swivel Pulley Bracket (14) to the Left Sliding Adjustment Frame (19) using 1 x M10 × 85mm
Allen Bolts (67), 2 × Ø10mm Washers (69), 2 × Bushes (54) and 1 x M10 Aircraft Nut (70).
c. Fix the Foot Plate (15) to the Main Base Frame (7) using Connecting Rod (17), and then secure the
two sides of the Foot Plate (5) using 2 × Ø25×1.5 End Caps (33).
d. When you use 1" plate, secure with the 1" Spring Collar (76); if you use 2" plate, attach the Sleeve (46)
to the Load Support (16), and then secure with the 2" Spring Collar (50).
e. Attach the Sleeve (46) to both sides of the Weight Plate Post(20).
Notes: parts (36), (51) and (35) are pre-assembled.
Step 8
16
