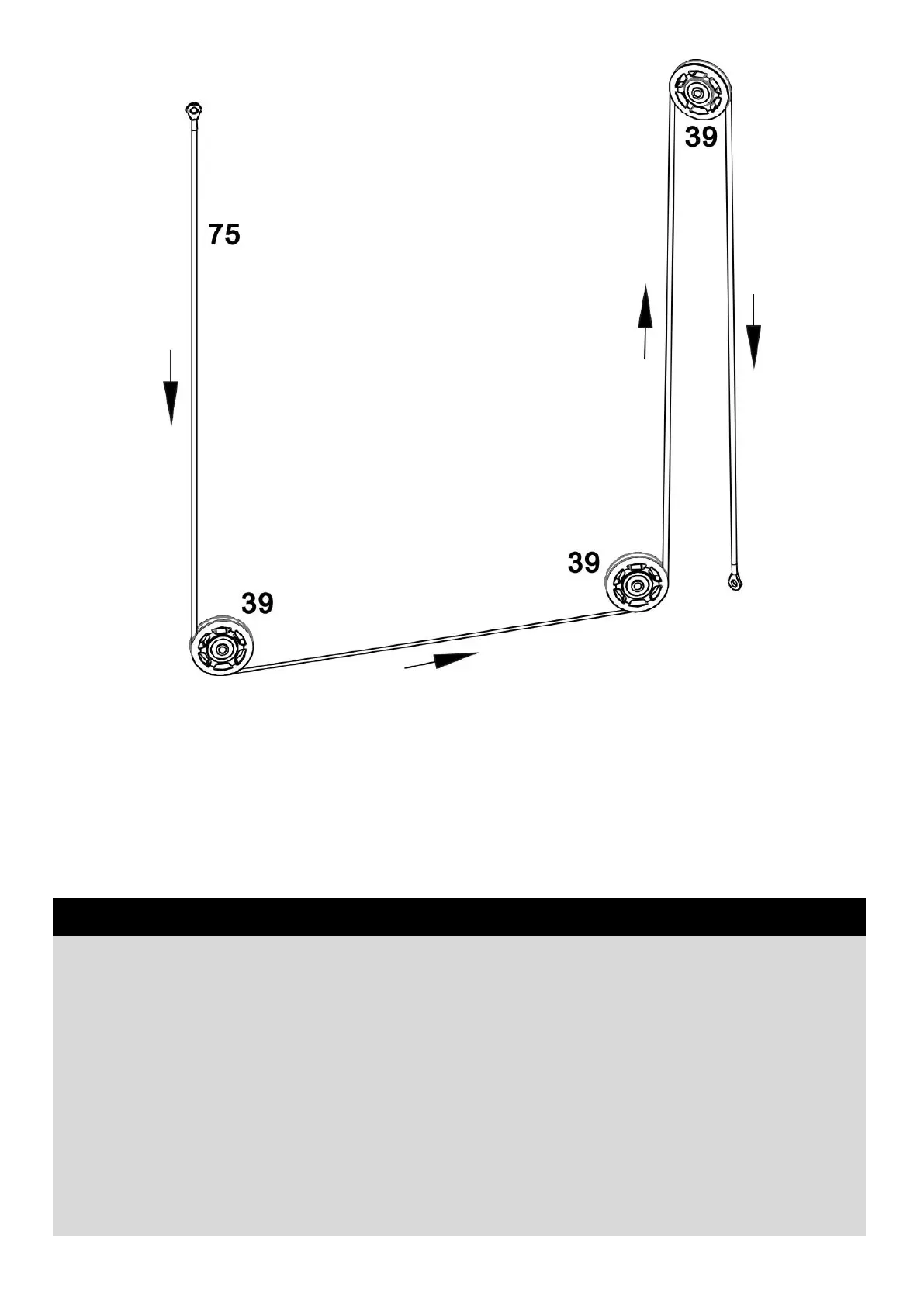

a. Attach the Left Lower Cable (75) to the Left Sliding Adjustment Bracket (19) and Main Base Frame (7)
usign 2 × M10×25mm Allen Bolts (61), 4 × Ø10mm Washers (69) and 2 x M10 Aircraft Nuts (70).
b. Put the Ø97 Pulley (39) on the Left Lower Cable (75), and fix it to the Left Slant Base Frame (4) using 2
× M10×45mm Allen Bolts (64), 4 × Ø10mm Washers (69) and 2 x M10 Aircraft Nuts (70).
c. Put the Ø97 Pulley (39) on the Left Lower Cable (75), and fix Pulley Level Bracket (40), Level Bracket
Bush (41) and Double Floating Pulley Bracket (22) to the Ø97 Pulley (39) using 1 x M10×50mm Allen
Bolt (65), 2 × Ø10mm Washers (69) and 1 x M10 Aircraft Nut (70). Please note that the Level Bracket
Bush (41) and Left Lower Cable (75) should be embedded into the Pulley Level Bracket (40).
