Rough Framing Dimensions
The rough framing dimensions given are the
minimum allowed framing dimensions. Be sure
when planning the framing of the unit that
adequate space to hook up the gas and electrical
on the left side of the unit.
SPECIAL FRAMING NOTE:
If the fireplace is to be recessed in a cavity deeper than 22”, all framing and finishing materials protruding past the front face of
this fireplace must be of the NON-COMBUSTIBLE variety.
WARNING: VENT IS NOT CENTERED ON THE UNIT
Minimum Required Dimensions
DESCRIPTION
DIMENSION
(INCHES)
A
ENCLOSURE FRAMING WIDTH
48
B
ENCLOSURE FRAMING DEPTH
22
C
ENCLOSURE FRAMING HEIGHT
46
D
ENCLOSURE CELING HEIGHT
66 3/8
E
FINISH MATERIAL THICKNESS
1
F
UNIT BASE TO ROOM CEILING
72
G
UNIT BASE TO SIDE WALL
16
H
UNIT BASE TO 8” MANTEL
51

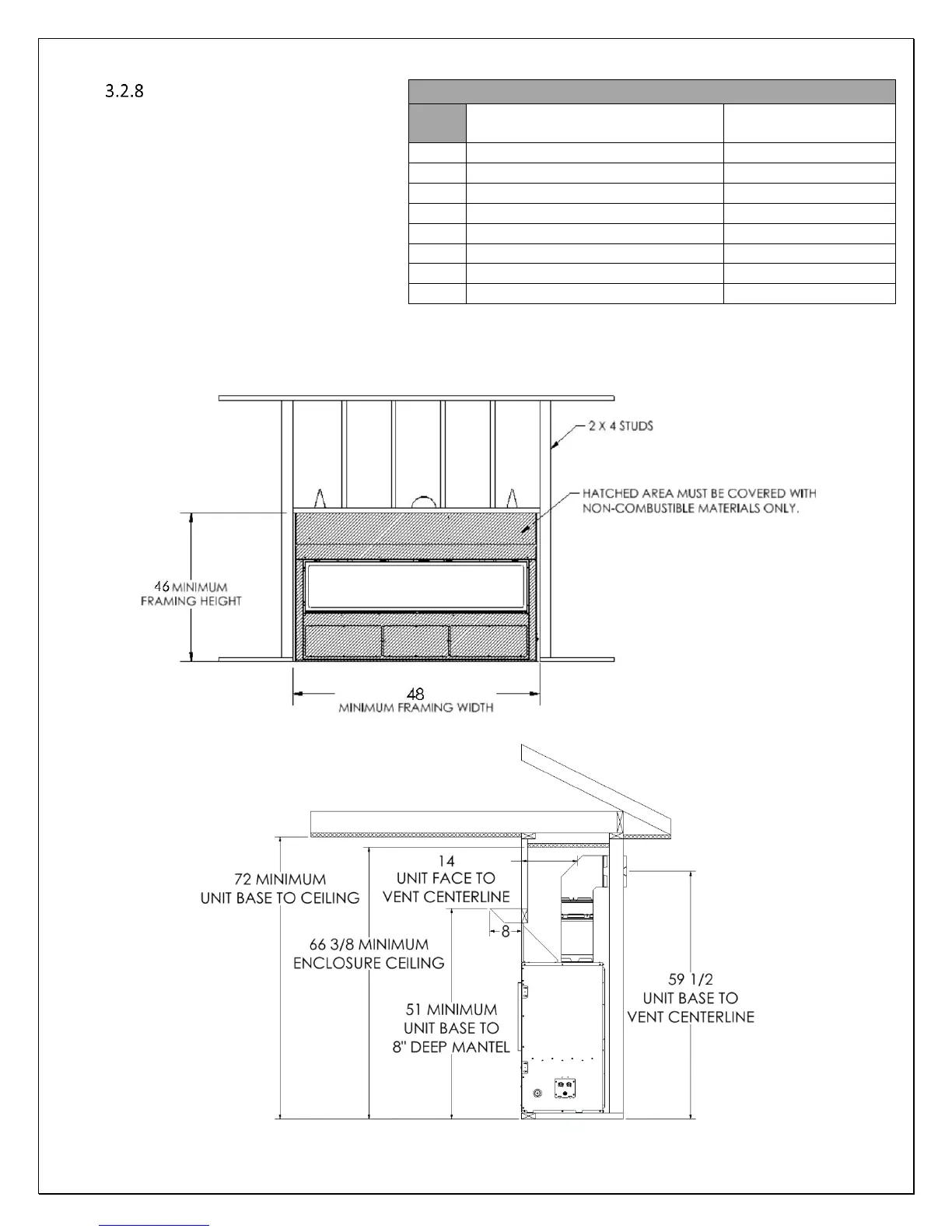

Figure 3-16 FRAMING DIMENSIONS
