Backup DC Power Inlet Port Installation

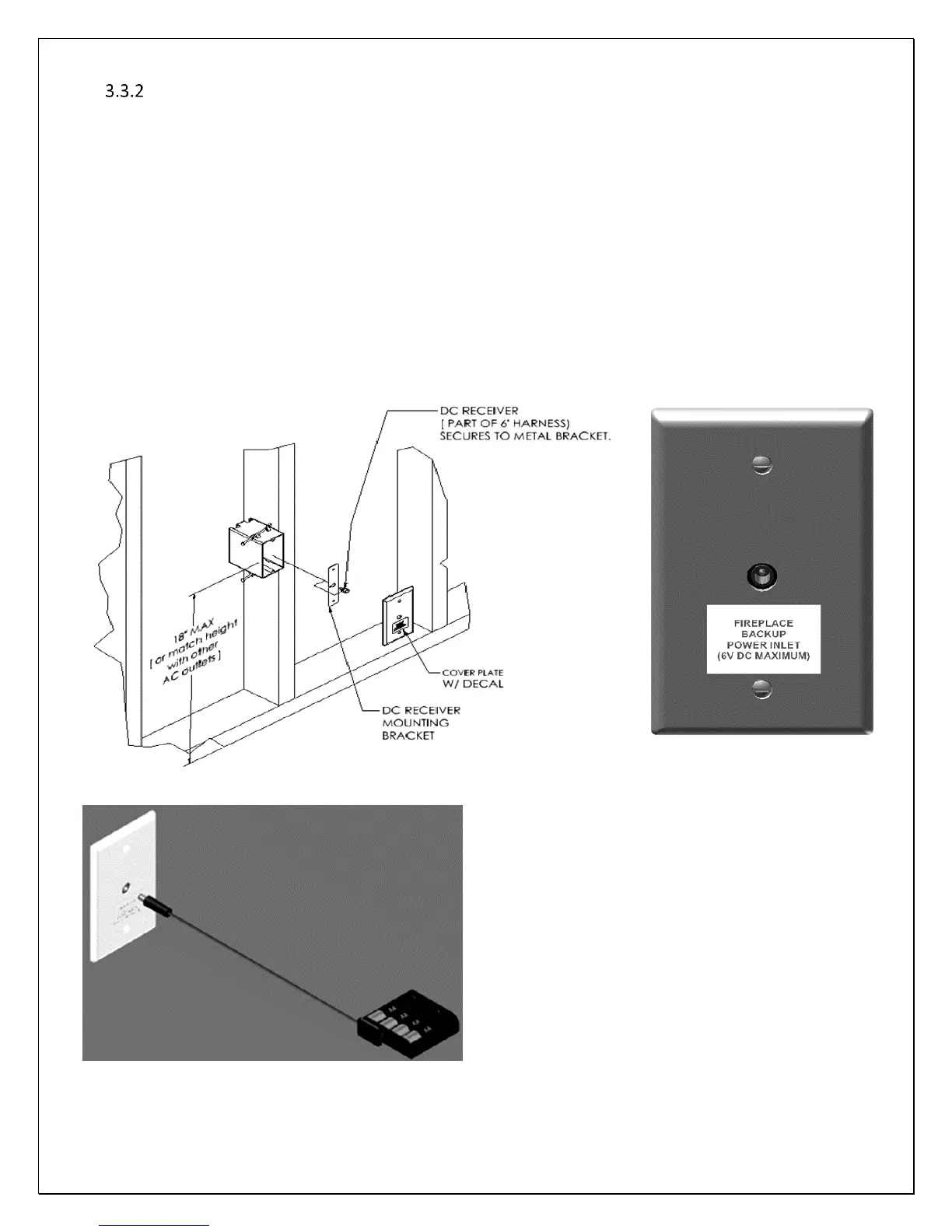

INSTALLATION: It is important that you install the supplied harness, outlet box and cover plate on the right side of this
appliance. The DC Power Inlet harness is 6 feet long, allowing installation of the single gang box up to 5 feet to the right of this
appliance. Install the single gang box at a maximum height of 18” to the center of the box or match the mounting height of this
single gang box with the height of other AC outlets that are installed in the same room as this appliance. WARNING: DO NOT
STAPLE the 6’ DC Power Inlet Harness to the wall studs.
COVER PLATES: Two cover plates are supplied and are White and Beige in color. If the home décor requires a different color
other than the two supplied colors, obtain one from a local hardware store. Make certain that the cover you obtain is exactly
the same dimensions as the ones supplied with this fireplace.
DECAL INSTALLATION: A notification decal (label) is supplied with this fireplace that aids in identifying the DC Power Inlet.
Attach this label to cover plate once installation is complete and verified.
INSTRUCT HOMEOWNER: Demonstrate to the homeowner how to attach the backup DC power pack during power outages.
Instruct homeowner to retain the DC battery pack and the connecting harness in a safe and secure place for use during power
outages
