Mepu Major 2000 - Machine Delivery and Contents

17
3. Delivery

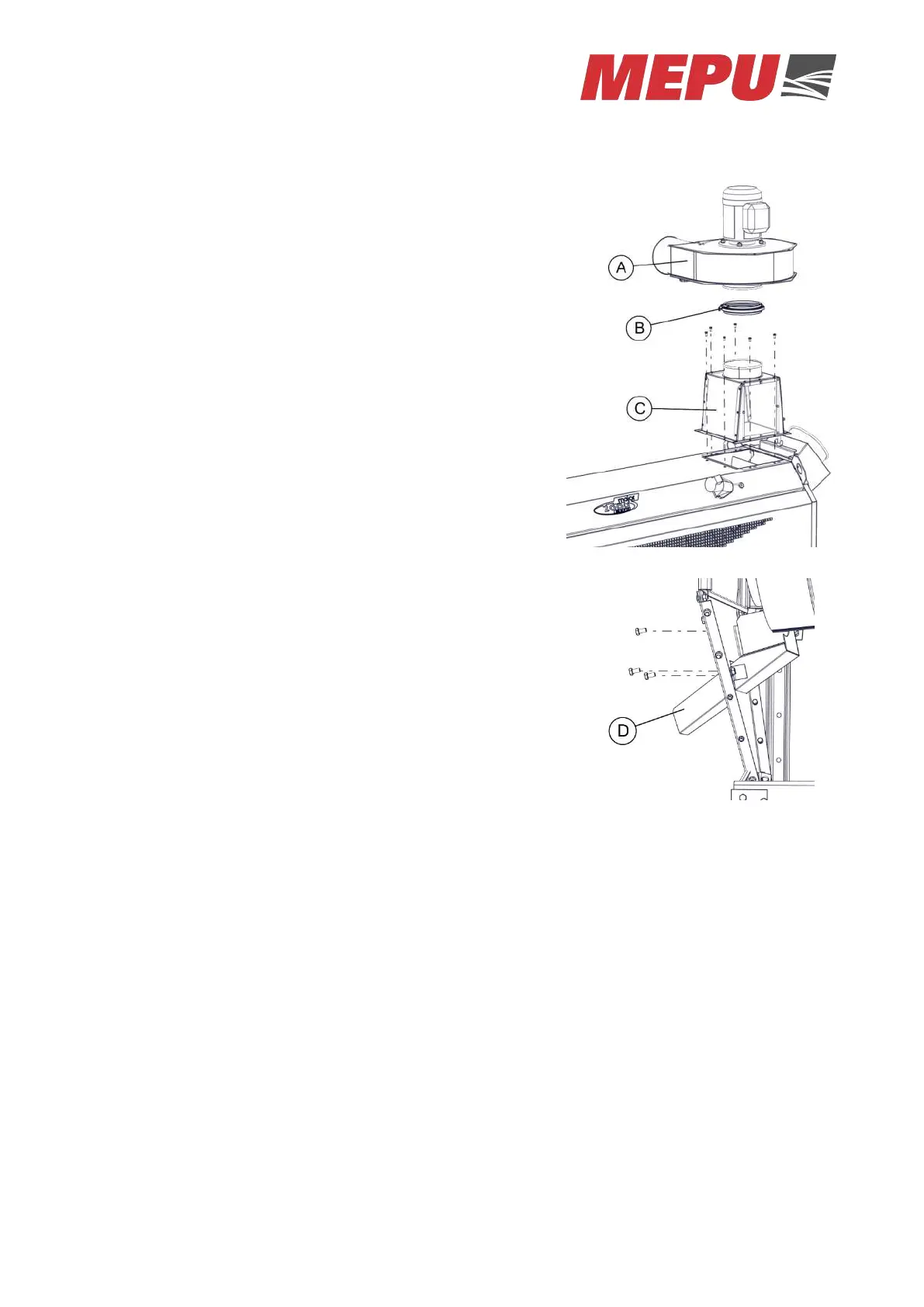

The MEPU 2000 will be included in the standard delivery for grain equipment
 Fan (A) 1 pce
 Cover (C) 1 pce
 Connective band (B) 1 pce
 Trough (D) 1 pce
 Internal drum Ø 8 mm 1 pce (standard)
 Internal drum Ø 10 mm 1 pce (standard)
 External drum 2.3 x 20 mm 1 pce (standard)
Unpack the delivery and remove the drums from the grain
grader. Attach the cover (C) to the frame, using bolts.
Attach the fan (A) with the band (B). Position the trough
(D) in its intended position, using bolts (3 pcs).
Other drum sizes available by separate order:
Internal drums External drums
 4 x 15 mm 2,0 x 20 mm
 5 x 30 mm 2,5 x 20 mm
 6 mm 2,7 x 20 mm
 8 mm 3,0 mm
 10 mm 5 x 30 mm
 12 mm
 15 mm
You can order additional drums from your retailer. The delivery time is approximately two
weeks. To a limited extent, the grain grader can be used for sorting grass seeds. Sorting capacity:
for normal sorting – 0.5 – 1 t/h; for pre-cleaning/sorting 1 – 2 t/h.
Please note! The supply cable of the fan and the machine has been connected at the
factory. However, please ensure that the rotating direction of the fan is correct, and that
the drums are rotating clockwise, when viewed from the trough end (cf. the arrow on the
external drum).
Electrical connection 3-phase: Variator 0.22 kW
Fan 0.75 kW
Total: 0.97 kW 1,75 A
