Assembly Guide
05

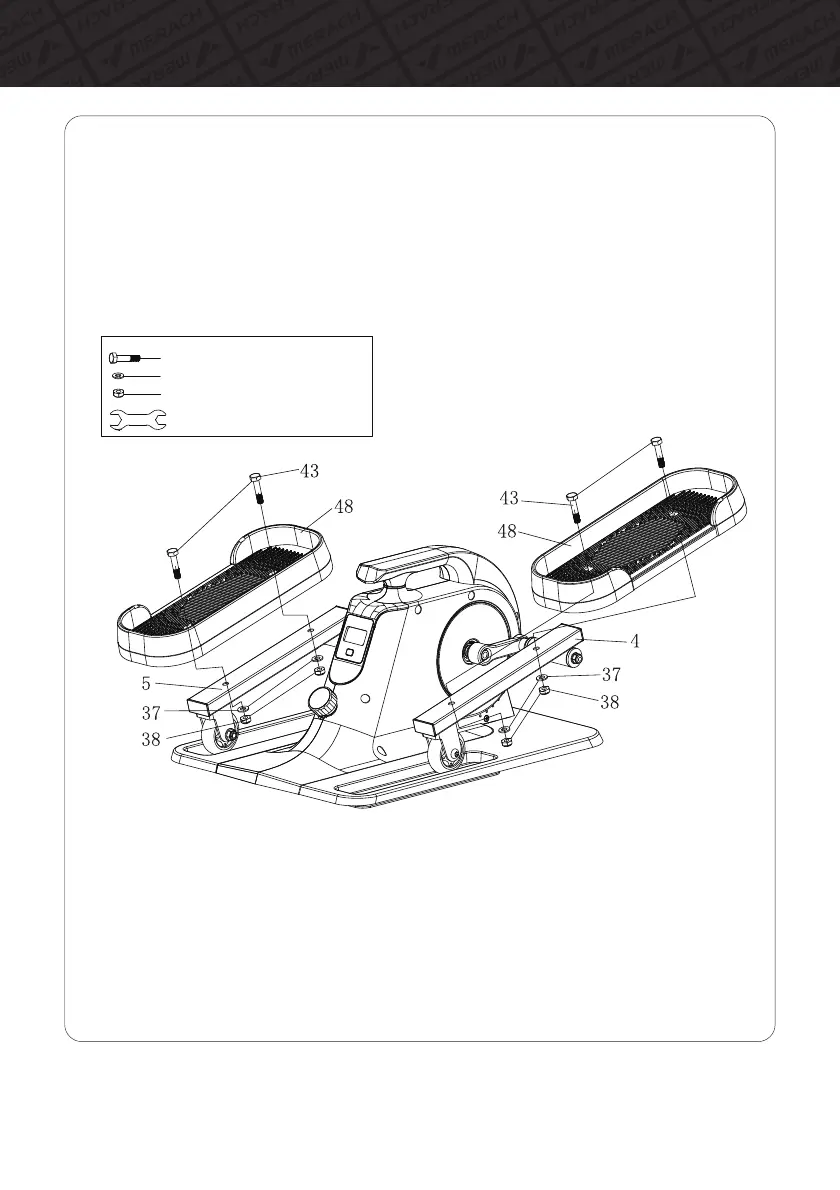

A. Install the Right Foot Pedal(#48) onto the Right Foot Tube Assembly(#4) with two Hexagon
Bolts(#43), two Spring Washers(#37) and two Nylon Nuts(#38). And tighten it by the Open
Spanner (#A).
B. Assemble the Left Foot Pedal(#48) in the same way.
Remark: As shown in Figure, tipping the Left&Right Foot Pedals(#48) up is easy to tighten it.
Install the Left & Right Foot Pedals
#43 M8*38*10*S14 4PCS
#37 D8*φ16*1.5 4PCS
#38 M8 4PCS
A S13-14 1PC
To Next Page
