K 1PC
4*59
D 4PCS
1/4*15
8
8
NOTE
:
In this step, DO NOT tighten any bolt until you connect all part together
NOTE
:
In this step, DO NOT tighten any bolt until you connect all part together
C
D
K 1PC
4*59
C 6PCS
1/4*35
1/4*15
10
*
19
9
*
2
11
12

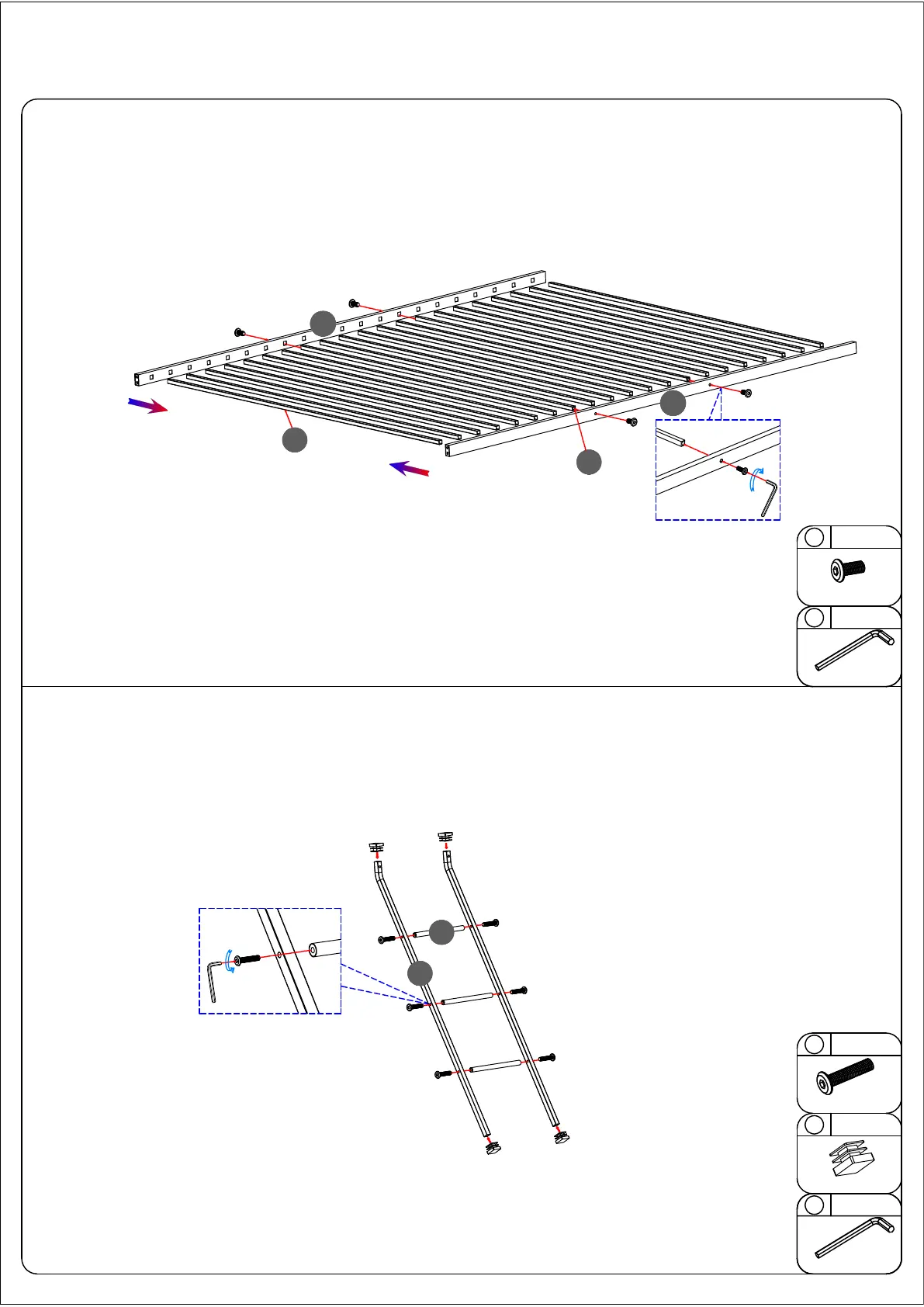

STEP 4
: Following below illustration Assembly Frame #4. Using hardware #D connect #8 with #9, #10 to
complete Frame #4.
STEP 5
: Following below illustration Assembly Frame #5. Using hardware #C, #H connect #11 with #12
to complete Frame #5.
H 4PCS
20*20
C*6
H*4
PAGE 6 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
